Download LiteratureLewmar 89300053 AutopilotsMamba Autopilot Drive - 12VThese unique autopilot drives are directly coupled to Mamba systems, eliminating the need for separate platforms, chains, and sprockets.Specifications: Horsepower: 1/4 Volts: 12 Maximum Output Torque: 125 (ft. lbs.) / 169 (Nm) No Load Speed RMP: 10 Maximum Rudder Torque: 1794 (ft. lbs.) / 248 (MGK) Average Current Consumption: 4A Circuit Breaker: 16A (motor) / 3A (clutch) Weight: 9 (kg) / 19.8 (lb.)  Guide to Boat size: Up to 16.75m (60 ft.) Normalized SKU: 89300053Lewmar 89300053 Literature Download Owners Manual

Garmin 010-00705-92 AutopilotsReactor™ 40 Steer-By-Wire Corepack for Viking® without GHC™ 20The Most Responsive Autopilot System on the Water Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Reactor 40 for Viking VIPER steering systems brings our leading-edge marine autopilot technology to Viking yachts. With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more.Solid-state 9-axis AHRSWith its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.Reacts to ConditionsThis amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.Minimal Commissioning and CalibrationAll autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.Full Integration with Garmin ChartplottersCombined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features such as Auto Guidance¹, which automatically steers GPS paths.1Auto Guidance is for planning purposes only and does not replace safe navigation operationsWhat's In The Box? Reactor 40 CCU (Course Computer Unit) CCU cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100070592UPC Code: 753759207991

SI-TEX 223346R2 AutopilotsSitex 12vDC Variable Flow Solenoid Valve System #223346R2Normalized SKU: 223346R2

Simrad 000-13951-001 AutopilotsSimrad Install Kit for AP44 #000-13951-001Normalized SKU: 00013951001UPC Code: 9420024163412

Simrad 000-13901-001 AutopilotsSimrad A2004 Autopilot Pack with HS75 - no DriveModel: 000-13901-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity A2004 Autopilot pack with A2004 controller, AC70 Autopilot computer, RF300 rudder feedback and a HS75 GPS compass. For use with non-IMO professional vessels. For reversible pumps or non-isolated solenoid valve controls. Add either an AD80 or SD80 for thruster control.The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.What's in the Box: A2004 Autopilot Control Unit AC70 Autopilot Computer RF300 Rudder feedback NMEA2000 15' cable HS75 GPS Compass Normalized SKU: 00013901001

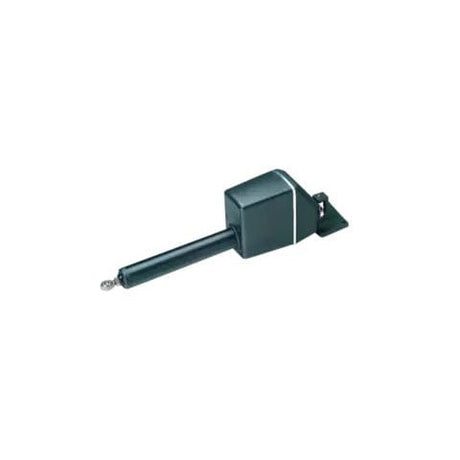

Raymarine M81133 AutopilotsRaymarine Type 2 Mechanical Linear Drive Short Stroke 24vModel: M81133 For boats up to 15,000kg, 33,000lbs, displacement Maximum stroke 300mm, 12 inches For 24vDC systems Works with ACU-400 Mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation.Mounted below-decks, the linear drive moves the rudder directly by pushing on the boat's tiller arm or rudder quadrant. When the autopilot is disengaged, the drive's electro-mechanical clutch releases to allow smooth, unobstructed hand-steering.The fixed end of the linear drive is secured to the boat's structural members, while the dynamic end attaches to the rudder stock or quadrant using an independent tiller arm. Accessory fittings from your steering system manufacturer may be required to complete your installation.Normalized SKU: M81133UPC Code: 023193811338

Furuno PUMPHRP35-24 AutopilotsFuruno PUMPHRP35-24 0-3.5 cu in/sec Adjustable 24v PumpsetModel: PUMPHRP35-24The Accu-Steer HRP35 is a reversing pump unit designed to interface a hydraulic steering system with electric or autopilot control. The output flow rate of the HRP35 pumpset is adjustable from 0 cu in/per second to 3.5 cu in/second. The output of the reversing pumpset determines the speed of the steering cylinderSpecifications Voltage 24vDC Output/Sec 0-3.0 cui/sec neutral Amps 3 Normalized SKU: PUMPHRP3524

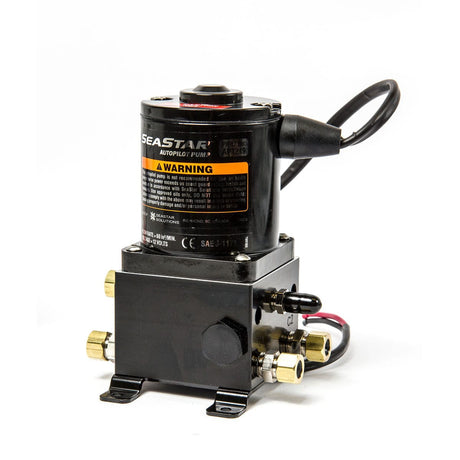

Teleflex AP2433 Autopilots Type 2 - 24V - 110cu"/min. Fixed Flow, Reversible type pump that uses an internal hydraulic gear pump, Compact Design, Easy Installation; Includes Mounting Bracket, ABYC, CE, and J1171 Compliant, Can be used as a stand-alone pilot pump or can be mounted to Power Assist unit Type 2 - 24V - 110cu"/min Fixed flow, reversible type pump that uses an internal hydraulic gear pump Compact Design, Easy Installation with mounting bracket included Can be used as a stand-alone pilot pump or mounted to a previously installed Power Assist Unit ABYC, CE, and J1171 Compliant Current Draw: 3-6 amps Weight: 4.9lbs / 2.2kg Maximum Pressure: 1000 psi Cylinder Capacity: 12.5 in³ - 21 in³ This product replaces: 731957898029, AP2433 Normalized SKU: AP2433UPC Code: 731957898029

Teleflex AP2419 Autopilots Type 1 - 24V - 60cu"/min. Fixed Flow, Reversible type pump that uses an internal hydraulic gear pump, Compact Design, Easy Installation; Includes Mounting Bracket, ABYC, CE, and J1171 Compliant, Can be used as a stand-alone pilot pump or can be mounted to Power Assist unit Type 1 - 24V - 60cu"/min Fixed flow, reversible type pump that uses an internal hydraulic gear pump Compact Design, Easy Installation with mounting bracket included Can be used as a stand-alone pilot pump or mounted to a previously installed Power Assist Unit ABYC, CE, and J1171 Compliant Current Draw: 2-4 amps Weight: 4.9lbs / 2.2kg Maximum Pressure: 1000 psi Cylinder Capacity: 4.9 in³ - 12.5 in³ This product replaces: 731957898012, AP2419 Normalized SKU: AP2419UPC Code: 731957898012

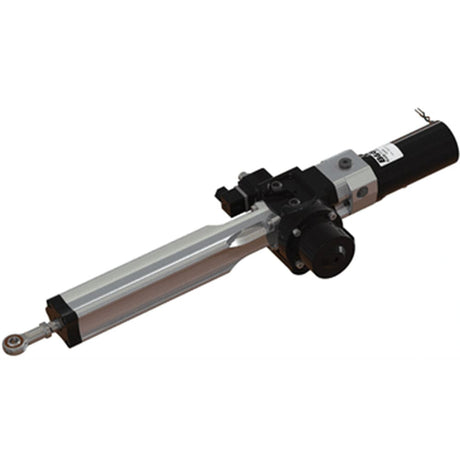

B & G 000-13902-001 AutopilotsHydraulic Ram to 12VHigh power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure Fully Integrated (T0, T1 and T2 units) hydraulic system, no external hoses, reservoirs etc. Always remember to use the fully laden displacement of your boat when selecting a pilot. Typically a yacht fully provisioned with the water and fuel tanks full can be as much as 20% above the designed displacement. If your boat falls between two pilot types, choose the larger pilot type - an under rated pilot may not be able to perform adequately when you need it most. If in doubt, please check with an authorized B & G Dealer. If you are using a Ram, Rotary drive or existing drive unit from another manufacturer, these will, in most cases, be compatible with B & G units.Features: Max Boat Size: 19,000 lbs (9000 kg) Stroke: 7.87 in (200 mm) Hard Over Time: 12 sec Tiller Arm: 6.89 in (175 mm) Thrust: 771.6 lbs (350 mm) Rudder Torque: 136.6 lbs (62 kg) Required Computer: AC12, NAC-2 *Typical average cruising consumption Normalized SKU: 00013902001UPC Code: 9420024162583

Octopus Autopilot Drives OCTAFG3012 AutopilotsHydraulic Gear Pump - 12V - 30-40CI CylinderGear Pump Offers Industry-Leading Reliability and Performance in a Smaller, Lighter, Quieter Package.Features: High Efficiency – Industry-leading efficiency minimizes power consumption Low Noise – New industry design offers significantly quieter operation Light Weight & Compact – Small footprint offers greater installation flexibility Wide Range Of Products – From 600 to 1600cc/min, 12v and 24v options Professional Solutions for Hydraulically Steered Boats: Industry-Leading Efficiency – lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units. Cost Savings – the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units. The smaller footprint of the compact gear pump increases installation flexibility. Lower noise and vibration make the gear pump particularly suitable for sailboat installations. Suitable for balanced or unbalanced cylinders. All models are available for both 12v and 24v systems. Normalized SKU: OCTAFG3012

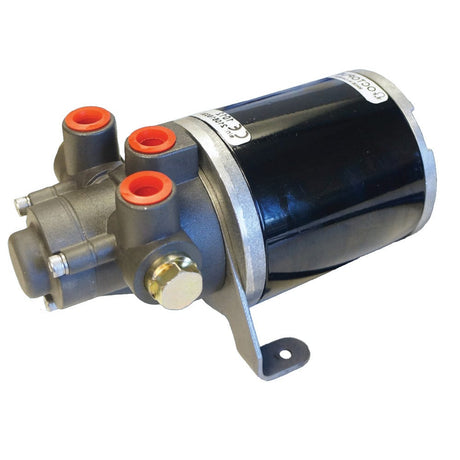

Octopus Autopilot Drives OCTAFG3024 AutopilotsHydraulic Gear Pump - 24V - 16-24CI CylinderGear Pump Offers Industry-Leading Reliability and Performance in a Smaller, Lighter, Quieter Package.Features: High Efficiency – Industry-leading efficiency minimizes power consumption Low Noise – New industry design offers significantly quieter operation Light Weight & Compact – Small footprint offers greater installation flexibility Wide Range Of Products – From 600 to 1600cc/min, 12v and 24v options Professional Solutions for Hydraulically Steered Boats: Industry-Leading Efficiency – lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units. Cost Savings – the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units. The smaller footprint of the compact gear pump increases installation flexibility. Lower noise and vibration make the gear pump particularly suitable for sailboat installations. Suitable for balanced or unbalanced cylinders. All models are available for both 12v and 24v systems. Normalized SKU: OCTAFG3024

Raymarine A80510 Autopilots JCU3 Compact Joystick for M100/200 - Raymarine RayNet Network FLIR’s JCU-3 Joystick Controller works with select Thermal Camera Systems to allow full access to the camera’s pan, tilt, zoom and menu settings.  The JCU-3 features 9 buttons plus a rotary controller and joystick trackpad in a compact housing the fits just about anywhere.  The JCU-3 can be mounted either horizontally or vertically using either of the 2 supplied key faces. The JCU-3 is rugged and waterproof for mounting in the pilothouse or on-deck.  It can be surface or flush mounted to your helm, console or bulkhead.  Multiple JCU-3 controllers can be installed to allow control of a single camera from several different locations onboard. The JCU-3’s keypad and rotary knob are backlit for easy viewing at night.  The JCU-3 can be powered over Ethernet from the vessel’s onboard network, or connected directly to a 12V DC power source and interfaced to the camera with an Ethernet connection.    The JCU-3 is compatible with FLIR M100, M200 (M132, M232) M300, (M300, M332, M354, M364c, M364C LR. Normalized SKU: A80510UPC Code: 723193818183
