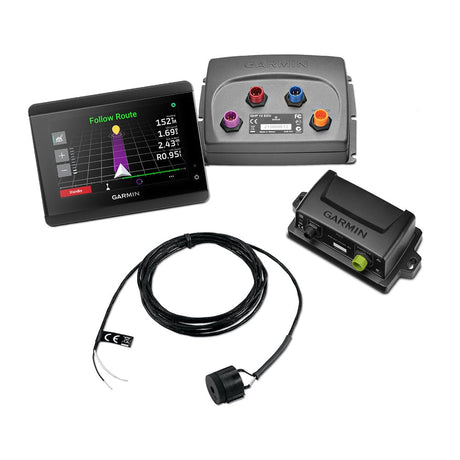

Watch VideoGarmin 010-02794-02 AutopilotsReactor™ 40 Mechanical/Retrofit/Solenoid Corepack with GHC™ 50 Autopilot Instrument PackEvery Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 mechanical/retrofit/solenoid corepack and GHC™ 50 display give you the extra hand you need, so you can explore paradise worry-free. Features: This Reactor 40 corepack is the perfect companion for your mechanical/retrofit/solenoid steered system. Choose between class A, class B compact, or class B drive units for your steering system (sold separately).  All Garmin linear drives include built in rudder feedback sensing. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simplicity. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot and/or GRF™ 10 Sensor enhances your autopilot experience. Technical Specifications - ECU/CCU: CCU dimensions - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm) ECU dimensions - 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm) Supply voltage - 10 to 30 V Operating temperature - from -15° C to 60 C° (5° F to 140° F) Technical Specifications - Buzzer/Alarm: Dimensions (L × Diameter) - 29/32" × 1" (23 mm × 25 mm) Weight - 2.4 oz (68 g) Temperature range - from 5°F to 131°F (from -15°C to 55°C) Cable length- 10' (3.0 m) Technical Specifications - GHC™ 50: Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)  Display Type - 800 x 480 WVGA Display Size - 5" (12.7 cm) Touch Display - Yes Knob Control - With GRID 10/20 Remote Control via ANT+® Connectivity - Yes Wi-Fi Connectivity - Yes NMEA 2000 Networking - Yes Ethernet - Yes What's in the Box? Reactor 40 CCU (Course Computer Unit) GHC™ 50 Marine Autopilot Display ECU (Electronic Control Unit) ECU power cable Interconnect cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 T-connectors Male and female terminators Documentation *Sold as an Individual  Normalized SKU: 0100279402Garmin 010-02794-02 Video

Garmin 010-02794-06 AutopilotsReactor™ 40 Steer-By-Wire Corepack for Volvo-Penta® with GHC™ 50 Autopilot InstrumentEvery Captain Needs a Co-Pilot. Designed for yachts with a Volvo Penta system, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free. Features: If you have a boat with a Volvo Penta system; this Reactor 40 corepack is the perfect companion. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simplicity. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience. COREPACK COMPATIBILITYThis corepack works with vessels that have Volvo Penta inboard performance systems and sterndrive joystick systems.SOLID-STATE 9-AXIS AHRSWith its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error, and more.REACTS TO WATER CONDITIONSHold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.SIMPLE CALIBRATIONAll autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.WIRELESS REMOTE CAPABILITIESControl your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).OPTIONAL GHC 50 BUNDLECombine the Reactor 40 hydraulic autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.POWERBOAT AND SAILING FEATURESWhen connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the following route and Auto Guidance+™ features1.CCU Specifications: Dimensions: 3 19/32" diameter (91.4 mm) Weight: 5.6 oz (159 g) Temperature range: From 5°F to 131°F (from -15°C to 55°C) Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length: 9.5 ft (3 m) NMEA 2000 power input: 9-16V NMEA 2000 LEN: 3 (150 mA) Buzzer/Alarm Specifications: Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm) Weight: 2.4 oz (68 g) Temperature range: from 5°F to 131°F (from -15°C to 55°C) Cable length: 10 ft (3.0 m) Autopilot Gateway Specifications: Dimensions (L × Diameter): 5 1/8" × 2 3/8" x 1" (130 mm × 60 mm x 25 mm) Weight: Less than 1 oz (28 g) What's in the Box? Reactor 40 CCU (Course Computer Unit) GHC™ 50 helm control display Volvo IPS gateway Interconnect cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation 1 Auto Guidance is for planning purposes only and does not replace safe navigation operations. Normalized SKU: 0100279406

Watch VideoGarmin 010-02794-01 AutopilotsReactor™ 40 Hydraulic Corepack with SmartPump v2 & GHC™ 50 Autopilot Instrument PackEvery Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump v2 and GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free. Features: This Reactor 40 corepack is the perfect companion for your hydraulically steered system. With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity. Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.) The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability, and lower power consumption. Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel. Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience. When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)  Technical Specifications - SmartPump v2:Dimensions (H x W x D) - 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm) Weight - 16.5 lbs (7.5 kg) Temperature range - From 5°F to 131°F (from -15°C to 55°C) Material - Electronics Control Unit (ECU) - fully gasketed, aluminum alloy.  Bracket - carbon steel.  Manifold - aluminum alloy.  Motor - aluminum alloy Power cable length - 9 ft (2.7 m) Power input - 11.5-30 Vdc Fuse - 40 A, blade-type Main power usage (standby) - less than 1 A. Main power usage (engaged) - 5-10 A and peak - 34 A Flow rate - Configurable from 0 to 2.4 L per minute Compatible with steering cylinder sizes from 4-24 cu in.  7-second lock to lock up to 17 cu in Technical Specifications - CCU: Dimensions: 3 19/32" diameter (91.4 mm) Weight: 5.6 oz (159 g) Temperature range: From 5°F to 131°F (from -15°C to 55°C) Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length: 9.5' (3 m) NMEA 2000 power input: 9-16 V NMEA 2000 LEN: 3 (150 mA) Technical Specifications - Buzzer/Alarm: Dimensions (L × Diameter) - 29/32" × 1.0" (23 mm × 25 mm) Weight - 2.4 oz (68 g) Temperature range - from 5°F to 131°F (from -15°C to 55°C) Cable length - 10' (3.0 m) Technical Specifications - Reactor 40: Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm) Display resolution (W x H) - 320 x 240 pixels Display Type - QVGA color LCD display NMEA output - NMEA 2000 Supply voltage - 10 to 20V Operating temperature - -15° C to 70 C° (5° F to 158° F) Technical Specifications - GHC™ 50: Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)  Display Type - 800 x 480 WVGA Display Size - 5" (12.7 cm) Touch Display - Yes Knob Control - With GRID 10/20 Remote Control via ANT+® Connectivity - Yes Wi-Fi Connectivity - Yes NMEA 2000 Networking - Yes Ethernet - Yes What's in the Box? GHC™ 50 Marine Autopilot Display SmartPump v2 Reactor 40 CCU (Course Computer Unit) ECU (Electronic Control Unit) power cable Interconnect cable Shadow Drive Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation *Sold as an Individual  Normalized SKU: 0100279401UPC Code: 753759302856Garmin 010-02794-01 Video

Garmin 010-02794-04 AutopilotsReactor™ 40 Steer-By-Wire Corepack for Yamaha® Helm Master® with GHC™ 50 Autopilot InstrumentEvery Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free. Features: This Reactor 40 corepack is the perfect companion for your hydraulically steered system. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simplicity. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience. COREPACK COMPATIBILITYThis corepack works with yachts that have a Yamaha Helm Master system, and it requires a compatible Garmin chartplotterSOLID-STATE 9-AXIS AHRSWith its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error, and more.REACTS TO WATER CONDITIONSHold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.SIMPLE CALIBRATIONAll autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.WIRELESS REMOTE CAPABILITIESControl your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).OPTIONAL GHC 50 BUNDLECombine the Reactor 40 hydraulic autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.POWERBOAT AND SAILING FEATURESWhen connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the following route and Auto Guidance+™ features1.CCU Specifications: Dimensions: 3 19/32" diameter (91.4 mm) Weight: 5.6 oz (159 g) Temperature range: From 5°F to 131°F (from -15°C to 55°C) Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length: 9.5 ft (3 m) NMEA 2000 power input: 9-16V NMEA 2000 LEN: 3 (150 mA) Buzzer/Alarm Specifications: Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm) Weight: 2.4 oz (68 g) Temperature range: from 5°F to 131°F (from -15°C to 55°C) Cable length: 10 ft (3.0 m) Autopilot Gateway Specifications: Dimensions (L × Diameter): 5 1/8" × 2 3/8" x 1" (130 mm × 60 mm x 25 mm) Weight: Less than 1 oz (28 g) What's in the Box? Reactor 40 CCU (Course Computer Unit) GHC™ 50 helm control display Yamaha Gateway CCU cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation 1 Auto Guidance is for planning purposes only and does not replace safe navigation operations. Normalized SKU: 0100279404UPC Code: 753759302887

Garmin 010-02794-09 AutopilotsReactor™ 40 Kicker Autopilot with GHC™ 50 Autopilot InstrumentEvery Captain Needs a Co-Pilot. Designed for small gasoline boats, this Reactor 40 kicker autopilot gives you the extra hand you need, so you can fish and explore paradise worry-free. Features: This Reactor 40 kicker autopilot is the perfect companion for your small gasoline-powered boat Sit back and relax. With this autopilot, you can maintain heading hold and stay on course. You’re not just getting an autopilot; you’re getting a convenient floating handheld remote, too. Easily fine-tune autopilot throttle settings with the touch of a button. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience. AUTOPILOT COMPATIBILITYThis kicker autopilot works for boats with small gasoline outboard motors up to 25 horsepower1.STAY ON COURSEWhether you’re fishing for your favorite species or just taking your sailboat out of the marina, this autopilot helps maintain heading hold and route to keep you on the course — even against the wind, waves, or heavy current.EASY-TO-USE REMOTE CONTROLThe Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. This allows you to quickly and easily control throttle settings as well as drop to idle speeds when netting a fish or coming up to a mooring.OPTIONAL GHC 50 BUNDLECombine the Reactor 40 autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.What's in the Box? GHC™ 50 CCU (Course computer unit) ECU (Electronic control unit) ECU power cable ECU to CCU interconnect cable Steering actuator Throttle actuator Autopilot remote NMEA 2000 drop cable (2 m) NMEA 2000 power cable 2 NMEA 2000 T-connector NMEA 2000 male terminator NMEA 2000 female terminator Documentation 1 See Autopilot Guide for details on supported motors and required accessories. Normalized SKU: 0100279409UPC Code: 753759302931

Download Literature Watch VideoGarmin 010-02794-00 AutopilotsReactor™ 40 Hydraulic Autopilot with GHC™ 50 Autopilot Instrument** Not designed to be used with Garmin Smartpump**Every Captain Needs a Co-Pilot.  Designed for powerboats, this Reactor 40 hydraulic autopilot with GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free. Features: This Reactor 40 corepack is the perfect companion for your hydraulically steered system. With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity. Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.) Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel. Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience. When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)  Technical Specifications - Reactor 40 : Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm) Display resolution (W x H) - 320 x 240 pixels Display Type - QVGA color LCD display NMEA output - NMEA 2000 Supply voltage - 10 to 20V Operating temperature - -15° C to 70 C° (5° F to 158° F) Technical Specifications - GHC™ 50: Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)  Display Type - 800 x 480 WVGA Display Size - 5" (12.7 cm) Touch Display - Yes Knob Control - With GRID 10/20 Remote Control via ANT+® Connectivity - Yes Wi-Fi Connectivity - Yes NMEA 2000 Networking - Yes Ethernet - Yes What's in the Box? Reactor 40 CCU (Course Computer Unit) GHC™ 50 marine autopilot touchscreen display ECU (Electronic Control Unit) ECU power cable Interconnect cable Shadow Drive Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation *Sold as an Individual  Normalized SKU: 0100279400UPC Code: 753759302849Garmin 010-02794-00 Literature Download Owners ManualGarmin 010-02794-00 Video

Garmin 010-02794-03 AutopilotsReactor™ 40 Steer-By-Wire Standard Corepack with GHC™ 50 Autopilot InstrumentEvery Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free. Features: This Reactor 40 corepack is the perfect companion for your hydraulically steered system. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simplicity. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience. COREPACK COMPATIBILITYThis corepack works with SeaStar Optimus systems, Yanmar Marine ZT370 stern drive electronic power steering systems, and ZF 2800 Pod drives. It requires a compatible Garmin chartplotter.SOLID-STATE 9-AXIS AHRSWith its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error, and more.REACTS TO WATER CONDITIONSHold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.SIMPLE CALIBRATIONAll autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.WIRELESS REMOTE CAPABILITIESControl your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).OPTIONAL GHC 50 BUNDLECombine the Reactor 40 hydraulic autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.POWERBOAT AND SAILING FEATURESWhen connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the following route and Auto Guidance+™ features1.CCU Specifications: Dimensions: 3 19/32" diameter (91.4 mm) Weight: 5.6 oz (159 g) Temperature range: From 5°F to 131°F (from -15°C to 55°C) Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length: 9.5 ft (3 m) NMEA 2000 power input: 9-16V NMEA 2000 LEN: 3 (150 mA) Buzzer/Alarm Specifications: Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm) Weight: 2.4 oz (68 g) Temperature range: from 5°F to 131°F (from -15°C to 55°C) Cable length: 10 ft (3.0 m) What's in the Box? Reactor 40 CCU (Course Computer Unit) GHC™ 50 helm control display CCU cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation 1 Auto Guidance is for planning purposes only and does not replace safe navigation operations. Normalized SKU: 0100279403UPC Code: 753759302870

Raymarine E12207 AutopilotsRaymarine Type 2/12v Hydraulic Linear Dr #E12207Normalized SKU: E12207UPC Code: 091975009334

Garmin 010-00705-96 AutopilotsReactor™ 40 Kicker Autopilot with Stainless Steel Tilt TubeDesigned for Use with Kicker MotorsFeatures: Specially designed for boats with small gasoline outboard motors of up to 20 horsepower. Helps maintain heading hold and route to keep you on the course — even against the wind, waves, or heavy current Includes convenient floating handheld remote control with a bright, sunlight-readable display (requires compatible ANT® technology-capable MFD or GHC 20 autopilot display; both sold separately) Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish Easy to install and integrate GHC 20 autopilot display, compatible Garmin chartplotters (sold separately), or your NMEA 2000® network-compatible GPS system Includes stainless steel tilt tube for Yamaha® and Honda outboards Whether you’re going for salmon, trout, walleye, or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on the course — even against the wind, waves, or heavy current.Easy-to-use Remote ControlThe Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with our GHC 20 autopilot display, compatible Garmin chartplotters (sold separately), or your NMEA 2000 network-compatible GPS system for a seamless onboard setup.What's In The Box? CCU (Course computer unit) ECU (Electronic control unit) ECU power cable ECU to CCU interconnect cable Steering actuator Stainless steel tilt tube Throttle actuator Autopilot Remote NMEA 2000® drop cable (2 meters) NMEA 2000 power cable 2 NMEA 2000 T-connectors NMEA 2000 male terminator NMEA 2000 female terminator Documentation Normalized SKU: 0100070596
