Download LiteratureFLIR Systems E70695 AutopilotsJCU-4 Premium Joystick Control UnitThe JCU-4 provides pan, tilt, zoom, and confident control of all camera functions. It is our premier joystick controller, equipped with an ergonomic keypad, color LCD, and responsive joystick control. The JCU-4 offers the operator a dedicated tactile camera control and pairs seamlessly with FLIR marine cameras.Features: Rugged, low-profile three-axis joystick for precision camera control in all conditions The 2.9-inch color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus Dimmable LCD and backlit keypad preserve the operator’s vision during nighttime operations Three custom keys for quick access to user-defined camera functions Compatible with the current M232, M300 Series, M400/M400XR and M500 cameras and legacy M-Series, MU/MV Series and Raymarine T-Series cameras Retrofit friendly, the JCU-4 has the same mounting footprint as the JCU-2 and JCU-1 Connectivity options include two Ethernet ports, POE support, and a dedicated DC power connector What's Included? JCU-4 (includes 4 screws and 4 mounting plates pre-fitted) Front cover Weather cover Documentation pack Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft) Right-angled three-pin power cable, 3 m (9.84 ft) Normalized SKU: E70695UPC Code: 723193859940FLIR Systems E70695 Literature Download Quick Reference Guide

Download Literature Watch VideoGarmin 010-12029-01 AutopilotsClass B Compact v2 Drive UnitThe Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement. Specifications: Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm) Drive unit type: Integrated hydraulic linear Stroke length: 10" (254 mm) Maximum thrust: 1,610 lbs (730 kg) Supply voltage: 10V to 30 V (regulated to 12V by the ECU) Average clutch current at 12V: 1 Amp Average motor current at 12V: 2-4 Amps Operating temperature: -15° C to 50° C Normalized SKU: 0101202901UPC Code: 753759335816Garmin 010-12029-01 Literature Download Quick Reference GuideGarmin 010-12029-01 Video

Download LiteratureGarmin 010-03197-01 AutopilotsAPK™ 10 Autopilot Keyboard - VerticalGAIN PRECISE CONTROL OF YOUR AUTOPILOTGet easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.Rotary KnobThe LED-encircled knob provides precise heading control and colored reference of autopilot status.Autopilot ButtonsDedicated engage and standby buttons make starting and stopping your autopilot easy.Multipurpose ButtonsAdd more autopilot control functions based on your vessel type and setup preferences.Simple InstallationConnect to your NMEA® 2000 network with a single port and cable for integration and power.Compact DesignA low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.In The Box: APK 10 autopilot keypad (vertical) Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network Mounting hardware (flush and surface) Documentation Specifications: Dimensions (WxHxD): Flush mount: 1.6” x 6.2” x 0.28” (40.1 x 157.0 x 7.0 mm)Surface mount: 1.6” x 6.2” x 0.65” (41.1 x 158.0 x 16.4 mm) Weight: Vertical: 3.5 oz (100 g) Temperature range: From 5° to 158°F (from -15° to 70°C) Material: Fully-gasketed, high-impact plastic Water rating: IPX7 Compass-safe distance: 4.5” (114 mm) Powered input: Powered supplied from the NMEA 2000® network Normalized SKU: 0100319701UPC Code: 753759343712Garmin 010-03197-01 Literature Download Quick Reference Guide

Download Literature Watch VideoGarmin 010-03197-00 AutopilotsAPK™ 10 Autopilot Keyboard - HorizontalGAIN PRECISE CONTROL OF YOUR AUTOPILOTGet easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.Rotary KnobThe LED-encircled knob provides precise heading control and colored reference of autopilot status.Autopilot ButtonsDedicated engage and standby buttons make starting and stopping your autopilot easy.Multipurpose ButtonsAdd more autopilot control functions based on your vessel type and setup preferences.Simple InstallationConnect to your NMEA® 2000 network with a single port and cable for integration and power.Compact DesignA low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.In The Box: APK 10 autopilot keypad (horizontal) Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network Mounting hardware (flush and surface) Documentation Specifications: Dimensions (WxHxD): Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm) Weight: Horizontal: 4.09 oz (116 g) Temperature range: From 5° to 158°F (from -15° to 70°C) Material: Fully-gasketed, high-impact plastic Water rating: IPX7 Compass-safe distance: 4.5” (114 mm) Powered input: Powered supplied from the NMEA 2000® network Normalized SKU: 0100319700UPC Code: 753759343705Garmin 010-03197-00 Literature Download Quick Reference GuideGarmin 010-03197-00 Video

B & G RAM-T2-24V AutopilotsB & G Hydraulic Ram T2 24VModel: RAM-T2-24VThe RAM T2 Hydraulic linear actuator combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bi-directional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from rudder strikes, grounding etc.Specifications Performance Maximum thrust (intermittent) 675 kg Hard over time nominal RAM-T2 9 sec Temperature rating minimum -20 c Temperature rating maximum +65 c Relief valve setting 62 bar Back-drive at 12 sec Hard-over 7kg Electrical Compatible computers H5000 / NAC3 Motor voltage nominal 24v DC Motor power 100 watt Max current 12v 25% duty 11.2 A Rotation Reversing Protection IP44 Connection 1m 2 Core Flying Lead Ignition protection BS EN 28846:1993 Coil power continuous 12 watt Recommended oil Mineral based hydraulic ISO VG10 Materials Body Aluminium BS 1490 Piston rod Chrome Plated Stainless Steel Seals Nitrile & PTFE Body Protection SP270 Normalized SKU: RAMT224VUPC Code: 738087005433

Garmin 010-11203-10 AutopilotsAutopilot Check Valve KitThis check valve kit is used with the 1.2L and 2.0L autopilot pumps to isolate them from the steering system when the autopilot is not active. Check valves to prevent slow pressure leak down through the pump while disengaged.Boats with rudder trim tabs (outboard or rudder) that are properly adjusted do not need this check valve kit.Compatible Devices: Reactor™ 40 Hydraulic Autopilot with GHC™ 20 Autopilot Instrument Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Autopilot Instrument  Reactor™ 40 Hydraulic Autopilot without GHC™ Autopilot Instrument   Normalized SKU: 0101120310UPC Code: 753759280048

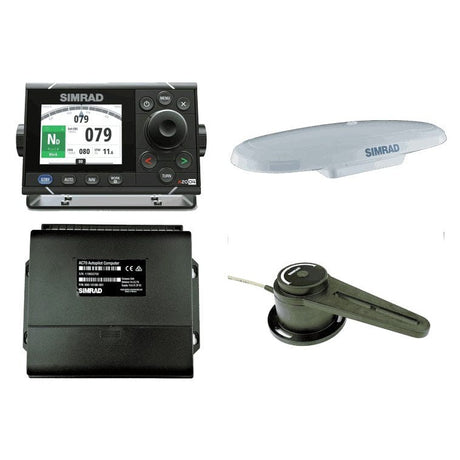

Simrad 000-13901-001 AutopilotsSimrad A2004 Autopilot Pack with HS75 - no DriveModel: 000-13901-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity A2004 Autopilot pack with A2004 controller, AC70 Autopilot computer, RF300 rudder feedback and a HS75 GPS compass. For use with non-IMO professional vessels. For reversible pumps or non-isolated solenoid valve controls. Add either an AD80 or SD80 for thruster control.The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.What's in the Box: A2004 Autopilot Control Unit AC70 Autopilot Computer RF300 Rudder feedback NMEA2000 15' cable HS75 GPS Compass Normalized SKU: 00013901001

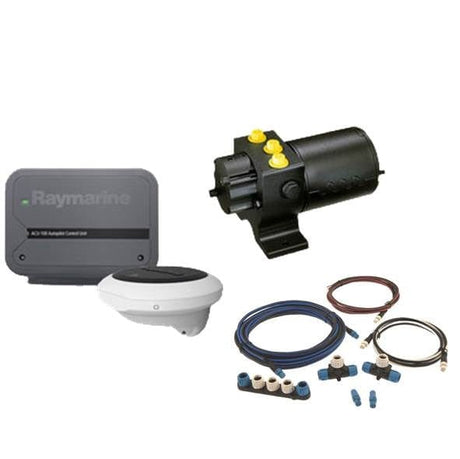

Raymarine T70250 AutopilotsRaymarine EV-100 Power Pilot without ControlModel: T70250 Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting. The EV-100 autopilot steers so accurately you will save fuel and get to your destination faster. The EV-100 Power Pilot is a complete autopilot solution for smaller powerboats with hydraulic steering. Ideal for boats with single-engine outboards, the EV-100 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. The system includes a .5 liter hydraulic autopilot pump. The pump is compatible with outboard hydraulic steering cylinder capacities between 50cc-110cc (3.1 in3—6.7 in3). Use a Raymarine Axiom chartplotter for complete autopilot control.What's in the Box: E70096 Evolution EV1 Sensor Core E70098 ACU-100 E12139 0.5L/12V Hydrualic pumpset R70160 Evolution Cabling Kit Normalized SKU: T70250UPC Code: 723193817438

Raymarine T70249 AutopilotsRaymarine EV100 Tiller Pilot without ControlModel: T70249 Rated for tiller-steered sailboats up to 13,200 lbs (6000kg) displacement Designed for cockpit installations. Tiller drive unit can be easily removed and stored. SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics The EV-100 Tiller Pilot is a complete autopilot solution for tiller-steered sailboats. Designed for DIY installations, the EV-100 Tiller Pilot's externally mounted drive mounts in the cockpit, attached to the tiller. The EV-100 Tiller Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. Use a Raymarine Axiom chartplotter for complete autopilot control.What's in the Box: E70096 EV1 Sensor Core E70098 ACU-100 M81181 Raypilot remote plug and socket assembly Q047 Tiller Drive R70160 Cabling Kit D001 Tiller Pin (Pack of 2) D002 Mounting Socket (Pack of 2) Normalized SKU: T70249UPC Code: 723193820827

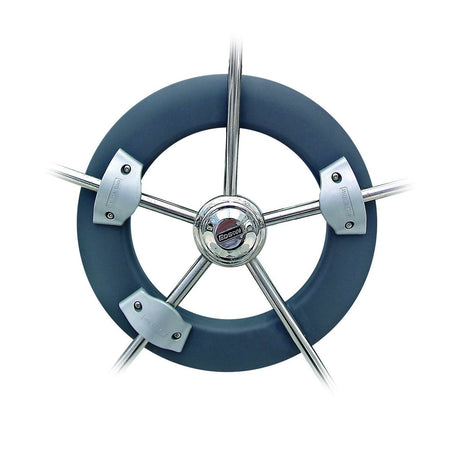

Raymarine T70248 AutopilotsRaymarine EV-100 Wheel Pilot with p70Rs ControlModel: T70152 Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement Designed for cockpit installations. SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems includes a p70Rs autopilot control head.What's in the Box: E12093 Wheel Drive E70328 p70s Control E70098 ACU-100 E70096 EV1 Sensor Core R70160 Cabling Kit Normalized SKU: T70248UPC Code: 723193820810

Raymarine M81133 AutopilotsRaymarine Type 2 Mechanical Linear Drive Short Stroke 24vModel: M81133 For boats up to 15,000kg, 33,000lbs, displacement Maximum stroke 300mm, 12 inches For 24vDC systems Works with ACU-400 Mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation.Mounted below-decks, the linear drive moves the rudder directly by pushing on the boat's tiller arm or rudder quadrant. When the autopilot is disengaged, the drive's electro-mechanical clutch releases to allow smooth, unobstructed hand-steering.The fixed end of the linear drive is secured to the boat's structural members, while the dynamic end attaches to the rudder stock or quadrant using an independent tiller arm. Accessory fittings from your steering system manufacturer may be required to complete your installation.Normalized SKU: M81133UPC Code: 023193811338
