Wet Sounds WS-ZX-MC-20 Marine
WS-ZX-MC-20 3-Zone Marine Media Center
The Wet Sounds WS-ZX-MC-20 is a compact, high-performance 3-zone marine media center designed for boaters who want true independent audio control across multiple areas of their vessel. Building on the popular WS-MC-20 platform, the WS-ZX-MC-20 introduces full 3-zone independence with the innovative ZONE X selector, giving you unprecedented flexibility for bow, helm, cabin, tower, and dedicated subwoofer zones.

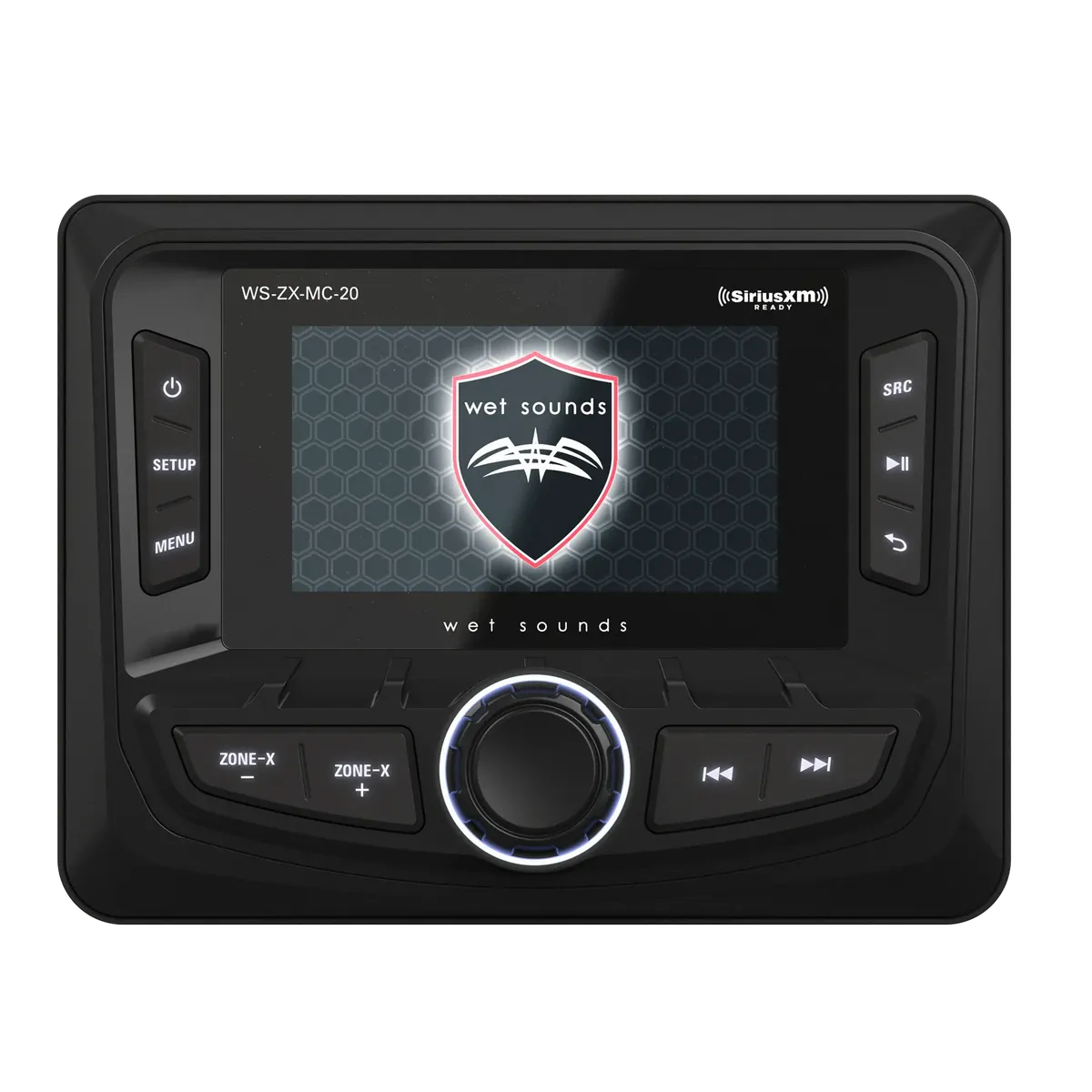

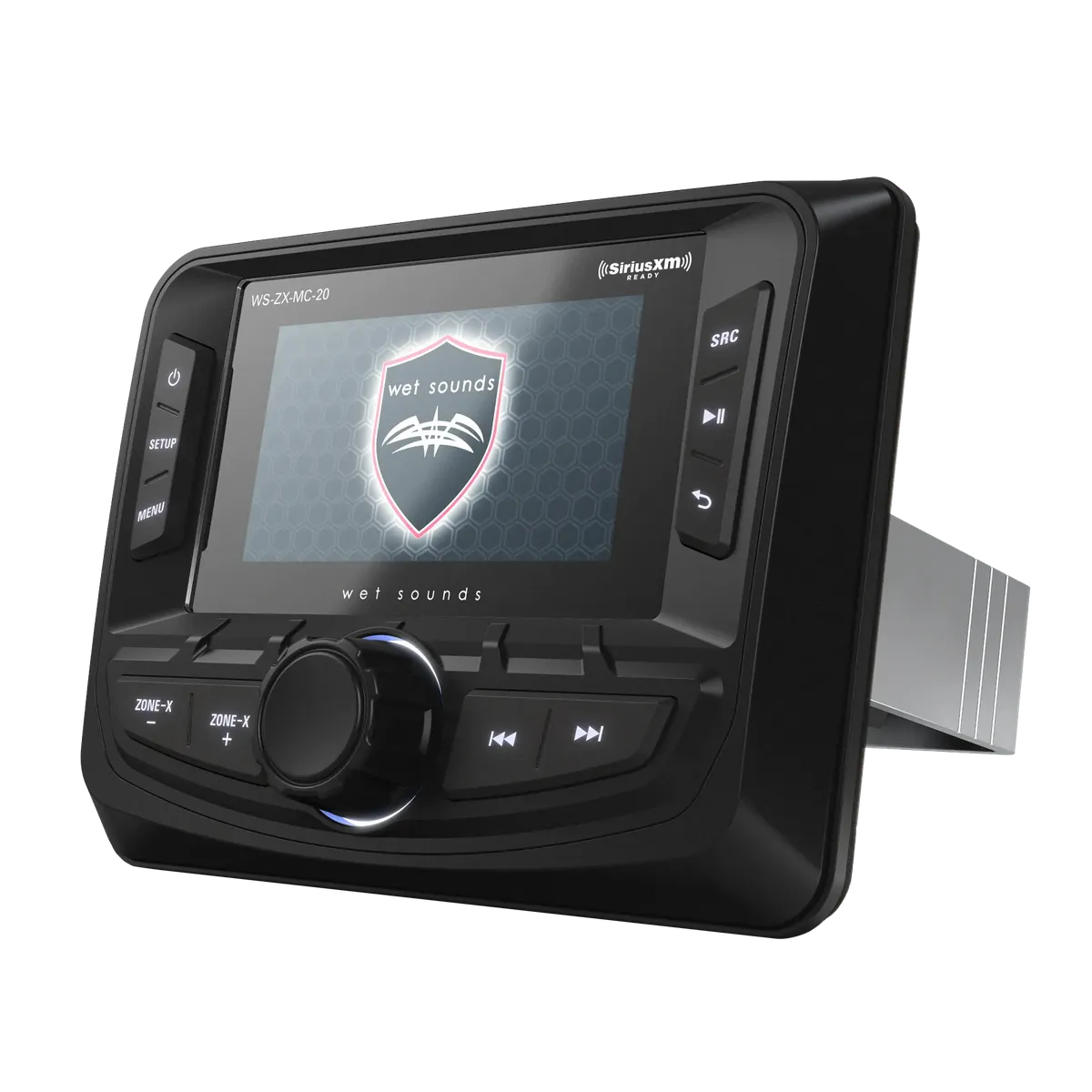

Featuring a bright 3.0" ultra-bright full-color TFT display with album art support, an intuitive rotary control knob, and dedicated front-panel zone buttons, the WS-ZX-MC-20 delivers easy access to AM/FM/Weather Band radio, Bluetooth® wireless technology streaming, USB MP3 playback, auxiliary input, and SiriusXM-Ready™ connectivity all while maintaining Wet Sounds’ signature marine durability and sonic performance.
Key Features & Benefits
-
True 3-Zone Independent Control - Each zone can be individually enabled or disabled, custom-named (e.g., Bow, Cabin, Sub, Tower), balanced left/right, and tuned with its own crossover settings.
-
ZONE X Front-Panel Selector - Dedicated physical ZONE +/- buttons let you instantly adjust a single zone or multiple zones simultaneously for fast, convenient control while underway.
-
Advanced Per-Zone Crossovers - Zones 1 & 2 offer High-Pass + All-Pass filters; Zone 3 adds a dedicated Low-Pass Filter (LPF), making it ideal for powering a subwoofer without additional processors.
-
7-Band Graphic Equalizer - Includes 7 factory presets plus full custom curve adjustment for precise sound shaping in any marine environment.
-
Built-in 4-Channel Amplifier - 50W x 4 @ 2Ω max (25W x 4 @ 4Ω RMS) with 3 sets of RCA preamp outputs (one per zone) for easy system expansion.
Ideal For
Center console boats, pontoons, and larger day boats that require separate volume and tonal control for different listening areas. Perfect for boaters upgrading from the standard WS-MC-20 who need more zone flexibility and subwoofer optimization.
Technical Specifications
-
Display: 3.0" Ultra Bright Full-Color TFT with Album Art Support
-
Zones: 3 Fully Independent Zones with Custom Naming and Per-Zone Crossovers
-
Equalizer: 7-Band Graphic EQ with 7 Factory Presets + Custom Mode
-
Tuner: AM/FM/Weather Band with RBDS (10 FM + 10 AM + 7 Weather Band presets)
-
Sources: Bluetooth® wireless technology streaming, USB MP3 Playback & Charging, 3.5mm AUX, SiriusXM-Ready™
-
Dimensions: 5.1" W × 3.99" H × 4.20" D
Compatible Optional Accessories
- NMEA 2000® Interface - WS-G2-NMEA-20
- Wired Transom Remotes - WS-G2-CTR (with color display) & WS-G2-TR
- Flush Mount Bezel Kit - WS-MC-20-FMK
Frequently Asked Questions
-
What is the main difference between the WS-ZX-MC-20 and the WS-MC-20?
The WS-ZX-MC-20 features true independent 3-zone control with the ZONE X selector, whereas the standard WS-MC-20 has only 2 zones. Zone 3 also includes a dedicated Low-Pass Filter optimized for subwoofers.
-
Can I use Zone 3 for a dedicated subwoofer?
Yes. Zone 3 is specifically designed for subwoofer use with its Low-Pass Filter (LPF) option.
-
How does the ZONE X selector work?
The ZONE X selector lets you choose whether the front-panel ZONE +/- buttons control a single zone (1, 2, or 3) or all three zones at the same time.
-
Can I custom name each zone?
Yes. You can assign custom names to each zone (such as “Bow”, “Cabin”, “Sub”, or “Tower”) for easy identification on the display.
-
Does the WS-ZX-MC-20 support NMEA 2000?
Yes, it is fully compatible with the optional WS-G2-NMEA-20 interface adapter.
-
What is the power output of the built-in amplifier?
The WS-ZX-MC-20 has a built-in 4-channel Class D amplifier delivering 50W x 4 @ 2Ω maximum and 25W x 4 @ 4Ω RMS.
-
Is the WS-ZX-MC-20 compatible with the WS-MC-20 accessories?
Yes. It works with the WS-G2-NMEA-20, WS-G2-CTR / WS-G2-TR transom remotes, and the WS-MC-20-FMK flush mount bezel kit.
Built tough for harsh marine environments and backed by Wet Sounds’ 2-Year Limited Warranty, the WS-ZX-MC-20 delivers the flexible multi-zone control modern boat audio systems demand.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Wet Sounds is under license. Other trademarks and trade names are those of their respective owners.
Normalized SKU: WSZXMC20
UPC Code: 810188610409
