VDO Qualifies for Free Shipping Veratron 85mm 3-3/8" VMH-35S Multifuntion Gauge with Voltage #B00143501

Veratron 85mm 3-3/8" VMH-35S Multifuntion Gauge with Voltage #B00143501

$372.51 $382.57 -3% OFF

Veratron 85mm 3-3/8" VMH-35S Multifuntion Gauge with Voltage #B00143501

$372.51 $382.57 -3% OFF

Veratron 85mm 3-3/8" VMH-35S Multifuntion Gauge with Voltage #B00143501

$372.51 $382.57 -3% OFF
Brand: VDO

SKU: VDO-B00143501

UPC: 7640190290206

Category: Gauges

More about this item
Download Literature

VDO B00143501 Gauges

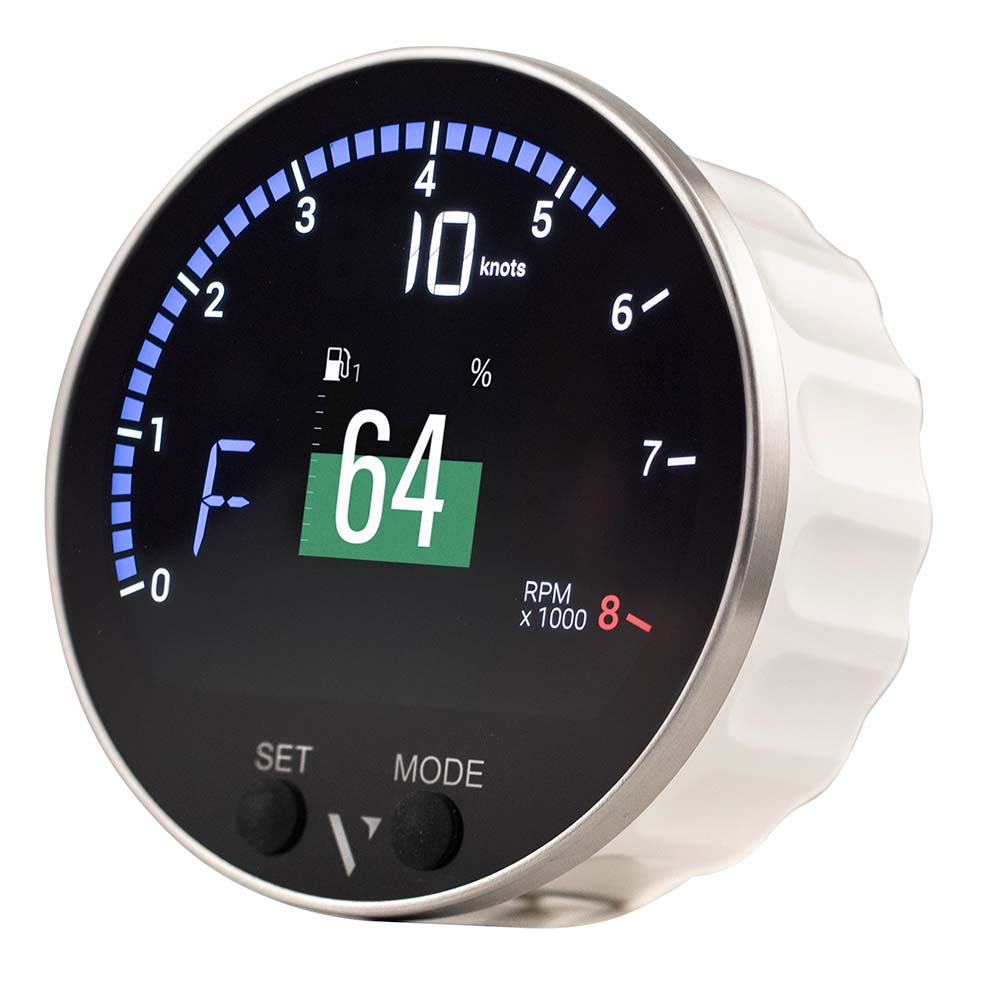

85mm (3-3/8") VMH-35S Multifunction Gauge wtih Voltage Dependent (0-5V) Sensor Input

The ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter, the VMH 35-S embeds a high-performance GNSS receiver which makes it the perfect solution for your boat cockpit.

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

  • Integrated high-performance GNSS receiver
  • Intelligent Battery Sensor (IBS) port
  • Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency
  • Stylish black-glass design with brushed stainless-steel ring
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Color IBN + 1.44" TFT optically bonded
  • Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway
  • Connectivity: NMEA 2000, LIN, EasyLink

Technical Specifications:

  • Nominal voltage: 12V
  • Operating voltage: 9-16V
  • Current consumption: ≤ 150 mA (normal mode)
  • Protection class: IP X7
  • Dimensions: 100 mm (outer) and 85 mm (mounting hole)

Normalized SKU: B00143501
UPC Code: 7640190290206

VDO B00143501 Literature Download

Quick Reference Guide
Owners Manual
