Brand: Teleflex

SKU: TFX-PA1200-3

UPC: 808282810528

Category: Hydraulic Steering

More about this item

Teleflex PA1200-3 Hydraulic Steering

Seastar PA1200-3 12vDC Power Assist Pump with 15ft Harness

Model: PA1200-3

  • ORB Fittings
  • Dramatically reduces steering effort in heavy or high torque applications
  • Easy install. Wall or Floor mount
  • OEM or retrofit
  • Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
  • Compatible w/ power purge system
  • Returns to manual in failure mode
  • Suitable for boats w/ multiple engines and rudders, multiple steering stations, and autopilots
  • Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved

Specifications

Voltage 12V
System Pressure 1000 psi MAX
Current Draw 40 A MAX, 60 A Peak (1 A System Electronics)

,

Seastar PA1200-3 Power Assit Unit 12/24v with 15ft Harness

Model: PA1200-3

The marine industry is continually introducing heavier, more powerful outboard engines. The Dometic SeaStar Steering Power Assist lets you steer these bigger, faster boats with the same comfort and ease that you'd expect when driving a car. Recommended for any boat that is 200 hp and above.

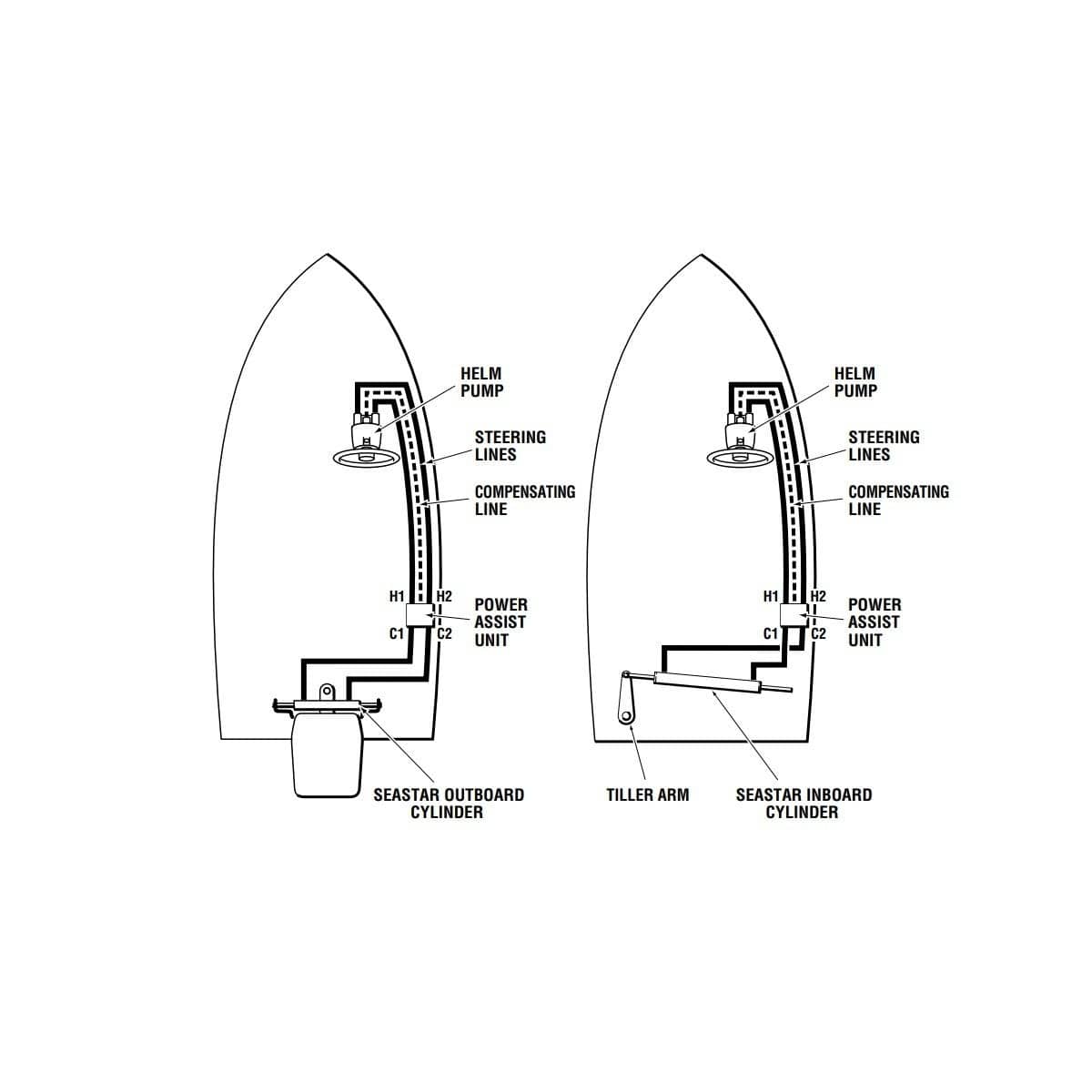

The Dometic SeaStar Power Assist Steering System is comprised of two circuits: a hand-operated manual system, which is the control element, and a hydraulic power pump, which is the working element. The manual system consists of a helm pump with internal relief and check valves, and a built-in reservoir. The power system is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder, resulting in much easier effort at the wheel.


Normalized SKU: PA12003
UPC Code: 808282810528
