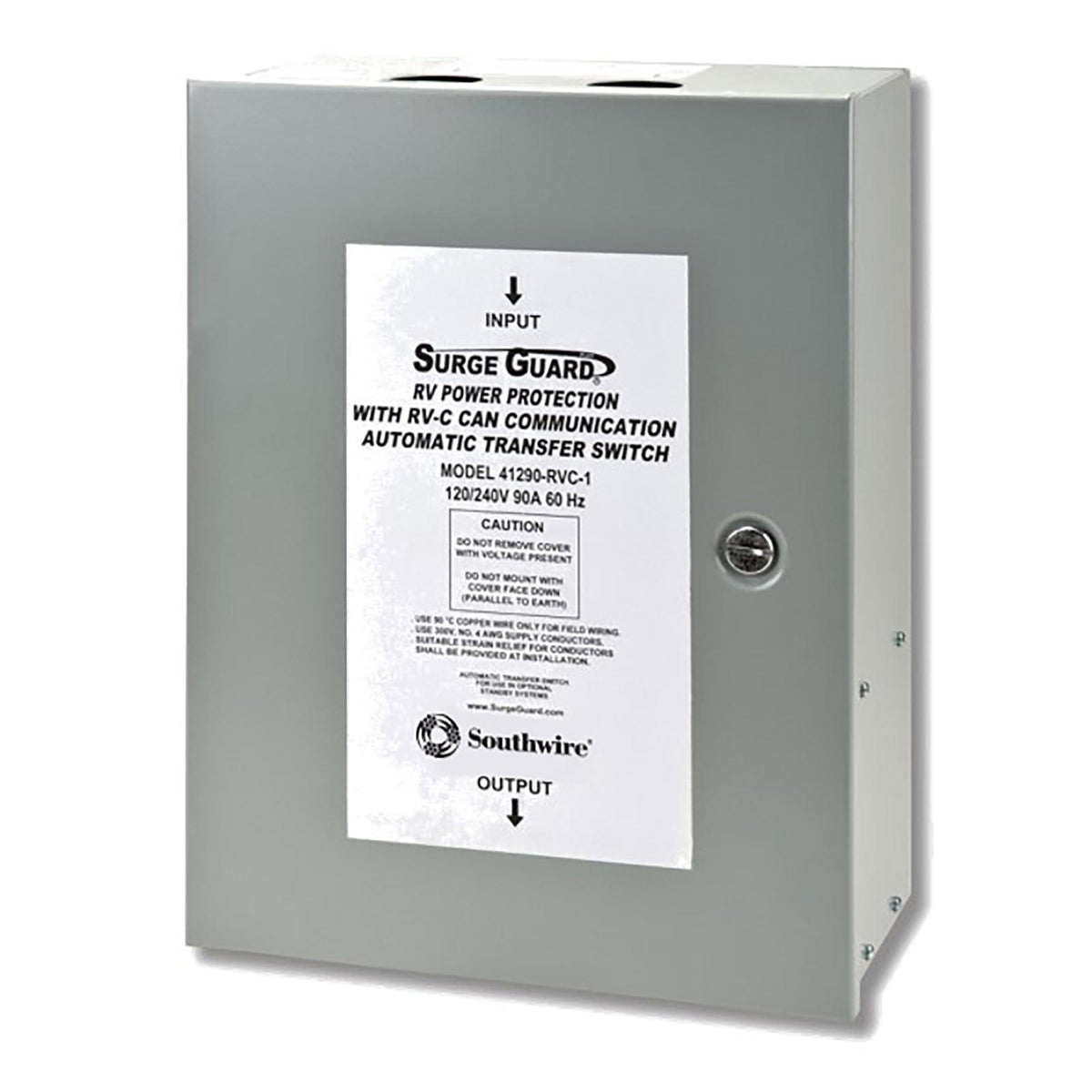

Southwire Qualifies for Free Shipping Southwire Surge Guard Plus 90a Auto Transfer Switch #41390RVC

Southwire Surge Guard Plus 90a Auto Transfer Switch #41390RVC

$2,353.23 $2,729.74 -14% OFF

Southwire Surge Guard Plus 90a Auto Transfer Switch #41390RVC

$2,353.23 $2,729.74 -14% OFF

Southwire Surge Guard Plus 90a Auto Transfer Switch #41390RVC

$2,353.23 $2,729.74 -14% OFF

SKU: SWE-41390RVC

UPC: 024098412903

More about this item

Southwire 41390RVC Transfer Switches

  • Surge Guard Model 41390-RVC provides premium protection for your motor home and enhanced features over other transfer switches on the market
  • Total electrical protection for your RV
  • Protects your RV bumper-to-bumper from faulty park power
  • Optional easy-to-read LCD display constantly monitors and displays the condition of power being supplied to your RV
  • RVC communication allows instant display of voltage, current and fault conditions on an RVC-compatible device
  • Automatic Transfer Switch Features
  • Transfers to generator power automatically when energized after 30-second delay
  • When both shore power and generator power are available, the generator dominates after a 30-second delay
  • Once the generator is shut down, shore power activates after a 3-4 second delay
  • 90A full-rated contactor mounted on vibration isolators to ensure quiet operation
  • Over/under voltage protection
  • Contactor opens outside of the 95V and 132V range after a 9-second delay
  • Instantaneous trip at voltages above 140V and below 70V
  • Over/under frequency protection
  • Contactor opens outside of (the 54-70Hz) range after a 30-second delay
  • Source power connection integrity
  • Contactor will not close or will open in the event of an open source conductor or miswired. L1, L2, Neutral and Ground
  • Brown/blackout protection 2 min 15-second delay is initiated after removal of power to ensure AC compressor head bleed off, feature can be disabled on remote. (optional)
  • Measures and displays both L1 & L2 load current independently
  • 4-mode protection, 3,350 Joules
  • Energy capacity - 130,000 Amps peak
  • Fuse protected L1/L2 surge suppressors
  • Plain text display (Replace Surge) of open fuses indicating a failed MOV or open surge connection
  • Remote Panel Indicator (Optional) 40272
  • Continuous visual indication of source voltage (L1, L2) load current or diagnostics
  • Plain English display of faults. No cryptic error codes
  • LCD technology with automatic light-sensitive backlighting for easy reading in any ambient light condition
  • 3rd Party Display Systems
  • RS232 proprietary output data stream for communication with external equipment

Normalized SKU: 41390RVC
