Simrad 000-16213-001 Mounting Hardware

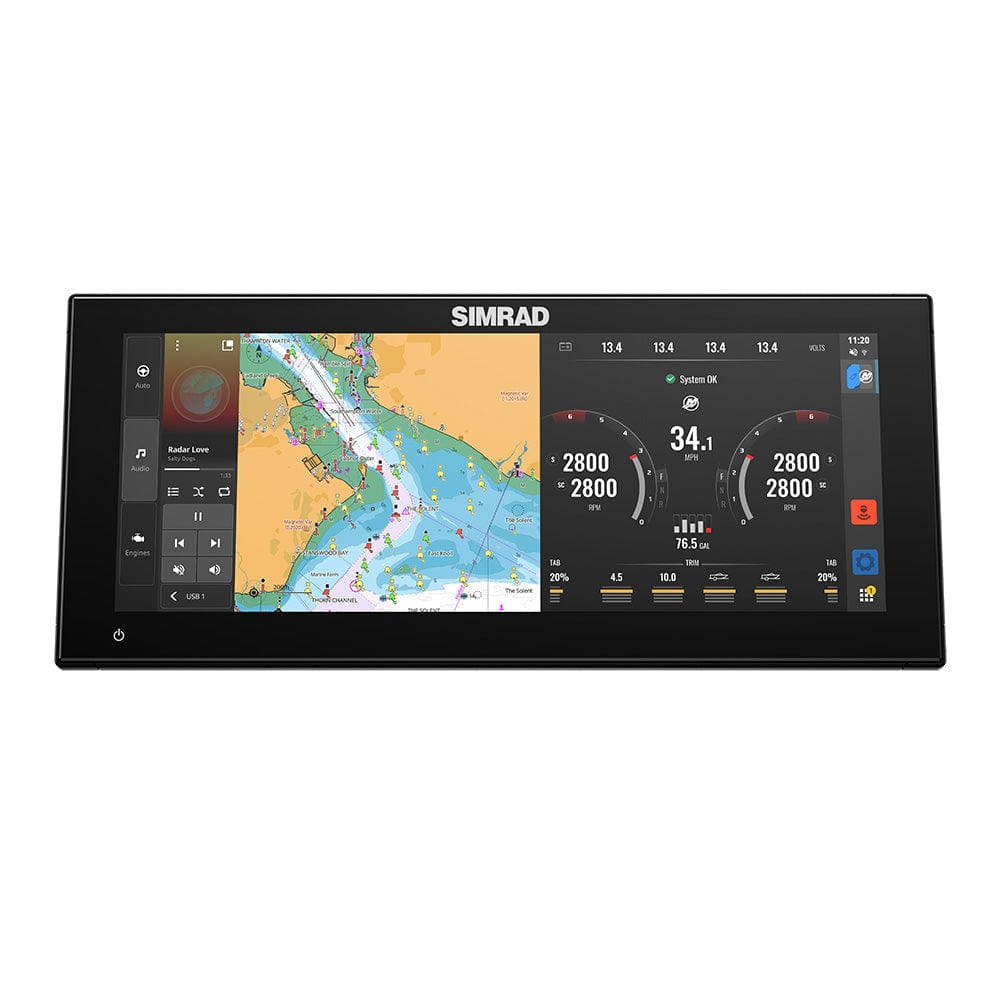

NSX 3015UW Combo with Active Imaging™ 3-in-1 Transducer

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Get a Fresh Perspective

NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.

Simpler Boating with Simrad's Latest Operating System

NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.

The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.

Superior Engine Control

Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-To-Stern Integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.

A Fishing Superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.

*Requires additional sonar module and a minimum 1.7 software update.

Features

Simrad® Suite Integration:

  • See near and far with full support for 3G, 4G, and HALO® radars
  • Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
  • Simrad® App integration for waypoint management and offline trip planning

Third-Party Integration:

  • Best-in-class Mercury® Integration, inc. SmartCraft® Connect
  • Integration with leading propulsion brands such as Honda and Suzuki
  • CZone® digital switching
  • OmniSense
  • Dometic
  • Lumishore lighting
  • Multiple audio partners
  • IP cameras
  • HTML5 app compatible
  • Much, much more...

Charts & Navigation:

  • Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
  • X-Chart Manager
  • 3x faster autorouting*
  • *vs SIMRAD® GO

Fishfinding & Sonar Capabilities:

  • Sonar sharing between NSX® devices
  • Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules*
  • *Requires minimum 1.7 software update

Network Connectivity:

  • Wireless
  • Ethernet
  • USB
  • NMEA 2000®

Additional Features:

  • The latest Simrad® operating system, for game-changing ease of use
  • Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
  • Intuitive setup wizard
  • Bracket mount sold separately

Specifications:

Display:

  • Backlight Color: White
  • Display Resolution: 1920 x 720 px
  • Display Size: 15 inches
  • Screen Brightness: >1000 nits
  • Viewing Angles: 85° (top, bottom, left, and right)

Physical:

  • Compass Safe: 50 cm (1.7 ft)
  • Dimensions (W x H x D): No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80")
  • Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional)
  • Weight: 1.9 kg (1.2 lbs)

Electrical:

  • Power Consumption Max: 25 W (1811 mA at 13.8 V)
  • Recommended Fuse Rating: 3A
  • Supply Voltage: 12 V DC (10 - 17 V DC min-max)

Environment:

  • Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
  • Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
  • Shock Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Waterproof Rating: IPx6 and IPx7

Connectivity:

  • Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
  • Ethernet Ports: 1 port (5-pin connector)
  • Connectivity Wi-Fi: IEEE 802.11b/g/n
  • NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
  • PC Connectivity: No
  • SD Card Storage: 1 MicroSD slot, 1 x USB
  • Video: IP Camera support

MFD:

  • Cartography Included: Discover X chart card of North America
  • Digital Switching: Czone / Simrad DDS
  • GPS: Internal, 10Hz
  • Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
  • Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
  • Weather: No

GPS:

  • GPS Receiver Channels: 32 Channels
  • Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
  • Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS

Other:

  • Interface: Multi-touch screen
  • Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian
  • Warranty Period: 2 Years
