Brand: SI-TEX

SKU: SIT-VECTORCOMPACTN

UPC: 010407510552

More about this item

SI-TEX VECTORCOMPACTN Navigational Instruments

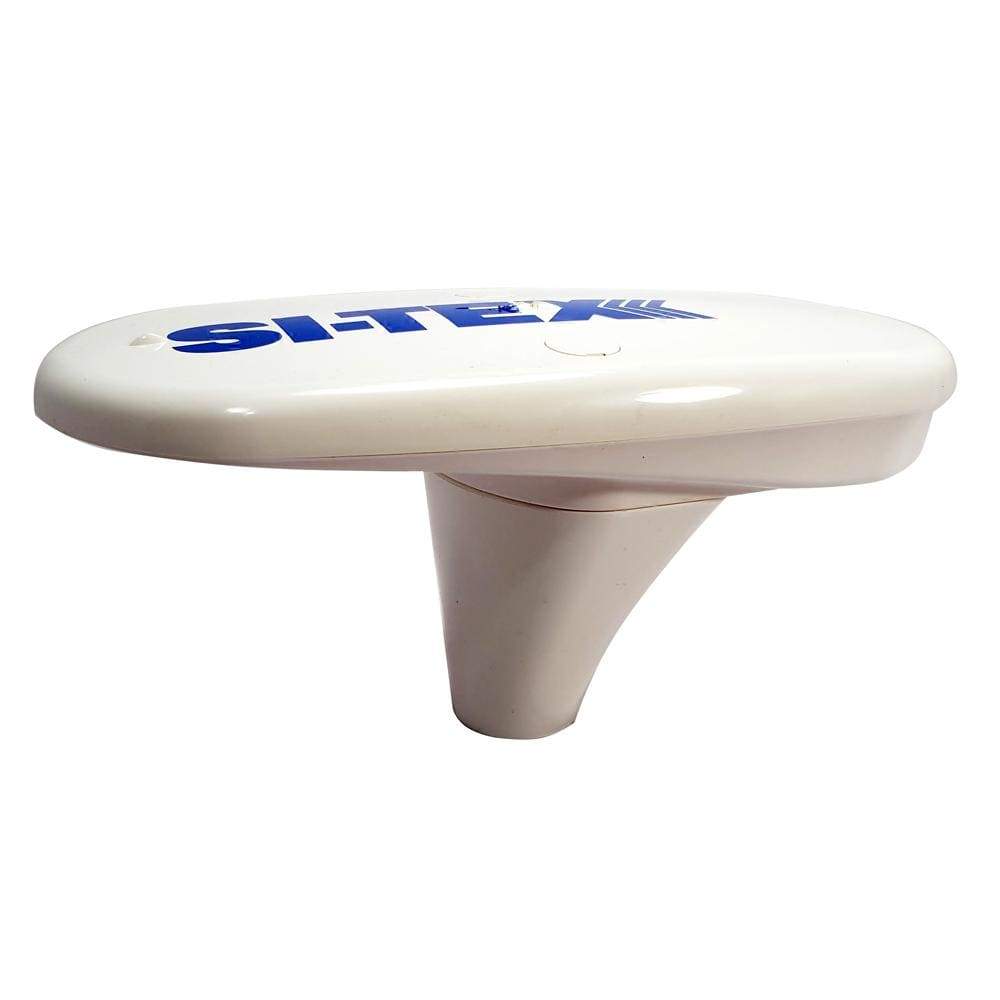

Vector Compact - N Worlds Smallest GPS Compass, NMEA 2000 Capable

The Vector Compact GPS Compass offers superior navigation including accurate
positioning and heading performance. V104 uses SBAS (WAAS, EGNOS, MSAS,
etc.) for differential GPS position allowing Hemisphere GNSS to provide a
low cost and highly effective positioning and heading based smart antenna.

The rugged and low-profile enclosure combines Hemisphere GNSS' Crescent
Vector technology and two multi-path resistant antennas for accuracy,
portability and simple installation. The smart antenna, measuring in less
than a half meter in length, mounts easily to a flat surface or pole. The
stability and maintenace-free design of Vector Compact provides traditional
GPS position and heading at a low cost, replacing the combination of
low-accuracy GPS and fluxgate compass.

GPS Receiver Specifications:
  • Receiver Type: Vector GPS L1
  • Compass Signals Received: GPS
  • Channels: 24
  • GPS Sensitivity: -142 dBm
  • SBAS Tracking: 2-channel, parallel tracking
  • Update Rate: 10Hz standard (position and heading)
  • Rate of Turn: 90x/s maximum
  • Compass Safe Distance: 30 cm (11.8 in)
  • Cold Start: <60 s (no almanac or RTC)
  • Warm Start: <20 s typical (almanac and RTC)
  • Hot Start: <5 s typical (almanac, RTC and position)
  • Heading Fix: <20 s typical (valid position)
  • Maximum Speed: 1,850 kph (999 kts)
  • Maximum Altitude: 18.288 m (60,000 ft)


Power
Input Voltage: 8-36 VDC
Power Consumption 2.0 W nom.
Current Consumption: 0.16 A @ 12VDC
Power Isolation: Isolated to enclosure
Reverse Polarity Protection: Yes

Mechanical
Dimensions Not including mount: 29.9 L x 12.9 W x 4.5 H (cm)
10.2 L x 5.1 W x 1.8 H (in)
Dimenstions Including mount: 25.9 L x 12.9 W x12.8 (cm)
10.2 L x 5.1 W x 5.0 H (in)

  • Provides position,heading,pitch,roll and heave
  • Excellent in-band and out-of-band interference rejection
  • 2° (RMS) heading accuracy in an amazingly small form factor
  • Integrated gyro and tilt sensors deliver fast star-up times and provide
  • heading updates during temporary loss of GPS and Satellites
  • Differential position accuracy of 1m, 95% of the time
  • Accurate heading for up to 3 minutes during GNSS outages
  • COAST technology maintains differentially corrected positioning for 40
    minutes or more after loss of differential signal

Normalized SKU: VECTORCOMPACTN
UPC Code: 010407510552
