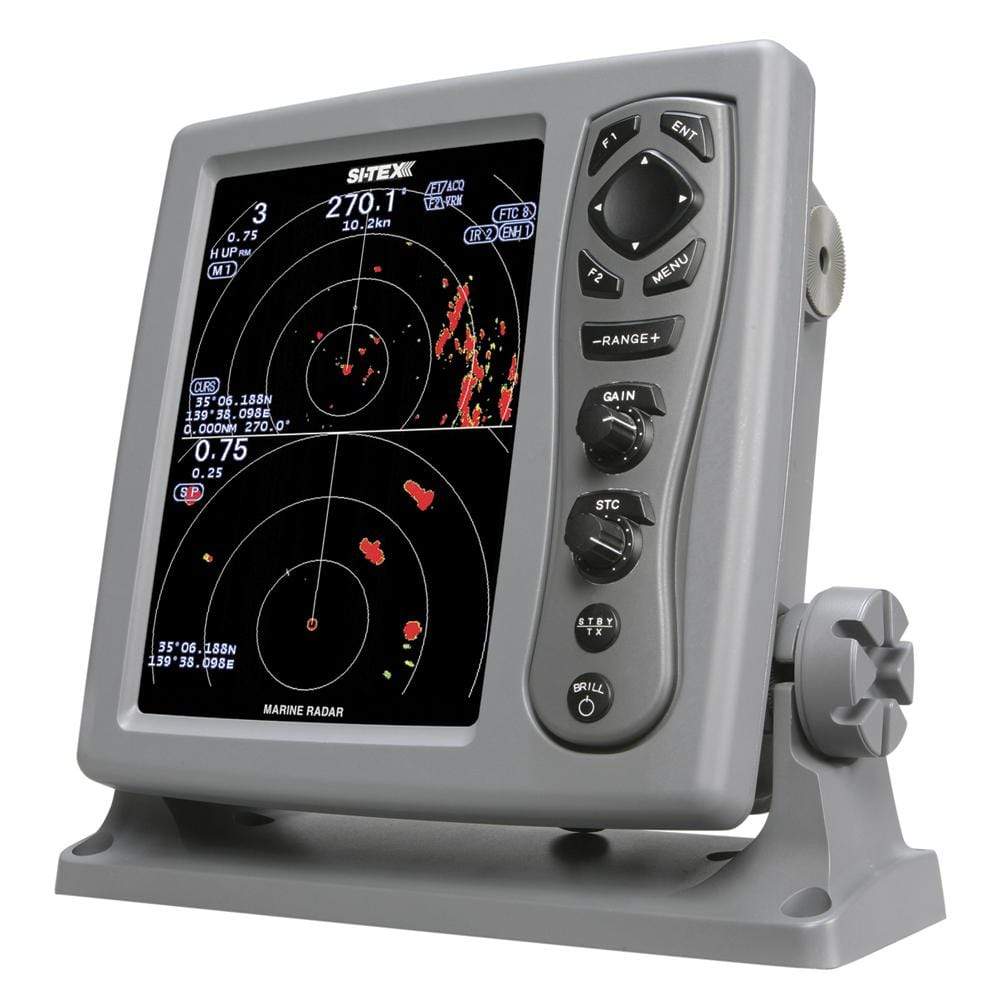

SI-TEX T-940-4 4kW 4.5' Open Array Radar #T-940-4

SI-TEX T-940-4 Radar Array

• Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously. Monitor a nearby buoy and a far off island at the same time.

• Brilliant 8.4" color LCD daylight viewable display with 480 x 640 pixel resolution and anti-reflective glare coating for outstanding viewing.

• True-color radar feature displays echoes in different color depending on signal strength.

• True Trail function clearly identifies moving targets from stationary targets. The display shows exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving.

• Easy operation with dedicated control knobs for Gain and STC.

• RGB output for connecting external monitor.

• Accepts CCD camera input.

• Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone.

• Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets. Designate the target and the radar will automatically provide the target distance, speed, bearing, course and closest point of approach on all user targets selected.

• Displays up to 100 AIS (Automatic Identification System) targets with *newly included* ($500 value) AIS interface.

• All this advanced radar technology is housed in a sleek, compact waterproof (IPX5 rating) case design that can be mounted almost anywhere.

• Built-in flush mounting system makes installation easy as you can mount screws from front side of unit

Specifications:

Hor/Vert Beam Width = NONE
Range - Max (Miles) = 48
Range Scale = NONE
Resolution (VxH) = NONE
Screen Size = 8.4"
Power - Output (Kilowatts) = 4kw
Array Size (Inches) = 54"
Cable Length (Meters) = NONE
ARPA Available = NONE

SITEX KODEN T-940-4 4KW 48NM RADAR 4.5' OPEN ARRAY

SI-TEX T-940-4 Literature Download
