SI-TEX Qualifies for Free Shipping SI-TEX SP110 Color System with 9 Axis Compass Rudder #SP110C-RF-2

SI-TEX SP110 Color System with 9 Axis Compass Rudder #SP110C-RF-2

$2,580.38 $2,910.66 -12% OFF

SI-TEX SP110 Color System with 9 Axis Compass Rudder #SP110C-RF-2

$2,580.38 $2,910.66 -12% OFF

SI-TEX SP110 Color System with 9 Axis Compass Rudder #SP110C-RF-2

$2,580.38 $2,910.66 -12% OFF
Brand: SI-TEX

SKU: SIT-SP110C-RF-2

UPC: 010407750040

Category: Autopilots

More about this item

SI-TEX SP110C-RF-2 Autopilots

SP-110C Color System with 9 Axis Compass, Rudder Feedback & 9CI Reversing Hydraulic Pump

Features:

  • The SI-TEX SP-110C-RF2 is a Hydraulic Autopilot kit for hydraulic steering systems up to 12 cu. In.
  • Does not require a separate junction box, everything simply connects to the rear of the control head
  • This system is ideal for small inboard boats with Hydraulic steering
  • The system includes a rotary rudder feedback unit for precise autopilot handling and rudder angle information
  • Control head displays Compass heading, Selected Heading and Rudder Angle information simultaneously

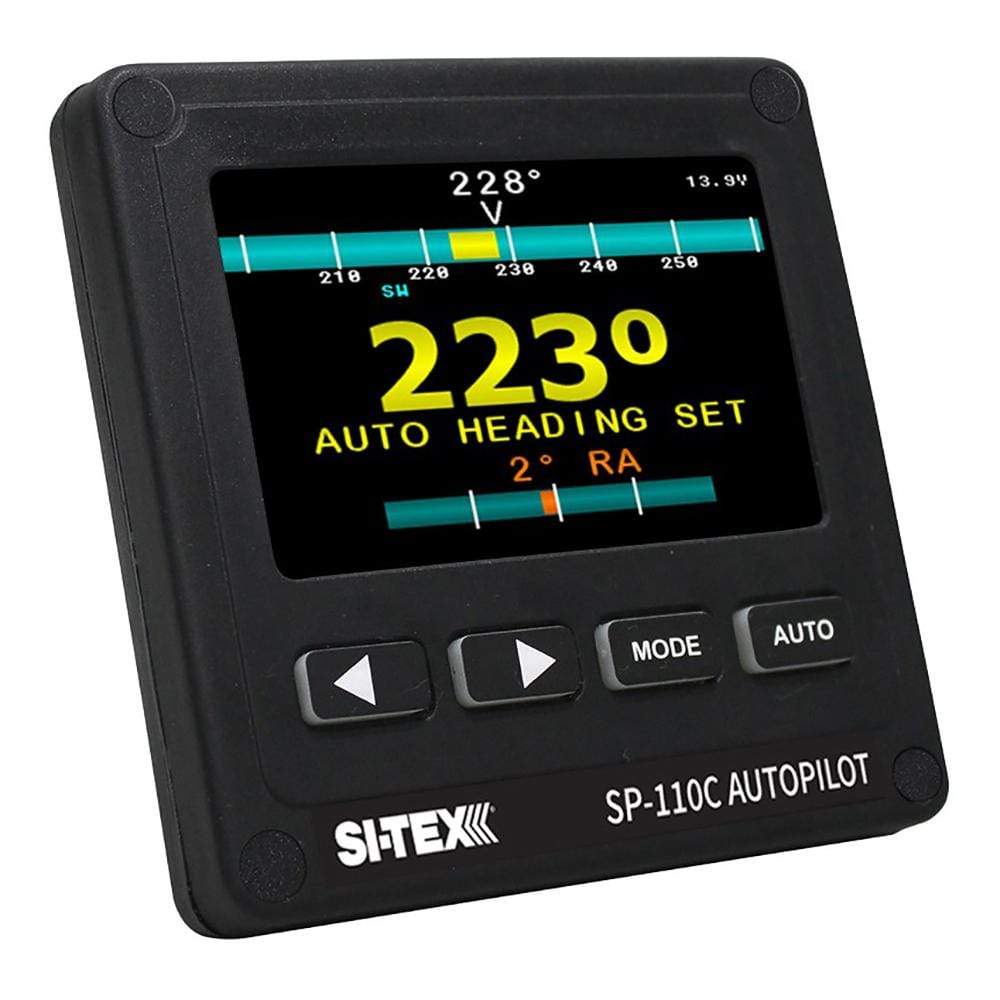

  • Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD Display
  • Very easy to select your desired headings, operate, and setup, via a new easy to use menu system
  • High Quality Rate Gyro Compass provides the autopilot with excellent steering response
  • Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
  • NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
  • NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
  • Autopilot Steering Modes:
  • Manual (Power Steer)
  • Auto (Pilot maintains selected Magnetic course)
  • GPS (Steers to Waypoint or Routes when Interfaced with GPS)
  • Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
  • Off Course Alarm
  • Optional Hydraulic Hose & fitting kit P/N OC17SUK42

Specifications:

  • Waterproof: IPX6
  • Control Head Dimensions: 110 mm L x 110 mm W
  • Voltage supply VOLTAGE: 12/24 Volts DC
  • Display LCD Color
  • Constant Rudder Angle & Compass Heading Displays
  • Current consumption: 0.5 amps at 12VDC in standby mode
  • Maximum Drive Output Current 15 Amps
  • Operating temperature: -10ºC to +55ºC
  • Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
  • Course Detection <1 Degree

Package Includes:

  • SI-TEX SP-110C Color LCD Autopilot Control Head
  • Control Head Sun cover
  • EC-110 Electronic Rate Gyro Compass
  • 9CI Reversing Hydraulic Pump
  • Rotary Rudder Feedback unit with linkage kit
  • Product manual
  • Mounting Screws

Specifications:

Boat Length - Max (Feet) = NONE
Capacity - Max Ram (CU) = NONE
Drive Type = Hydraulic
Feedback Type = Rotary
Pilot Type = NONE
Remote Capable = NONE
Turn Patterns = NONE
Vessel Displacement - Max (Pounds) = NONE


Normalized SKU: SP110CRF2
UPC Code: 010407750040
