SI-TEX T-760 Radar Dome

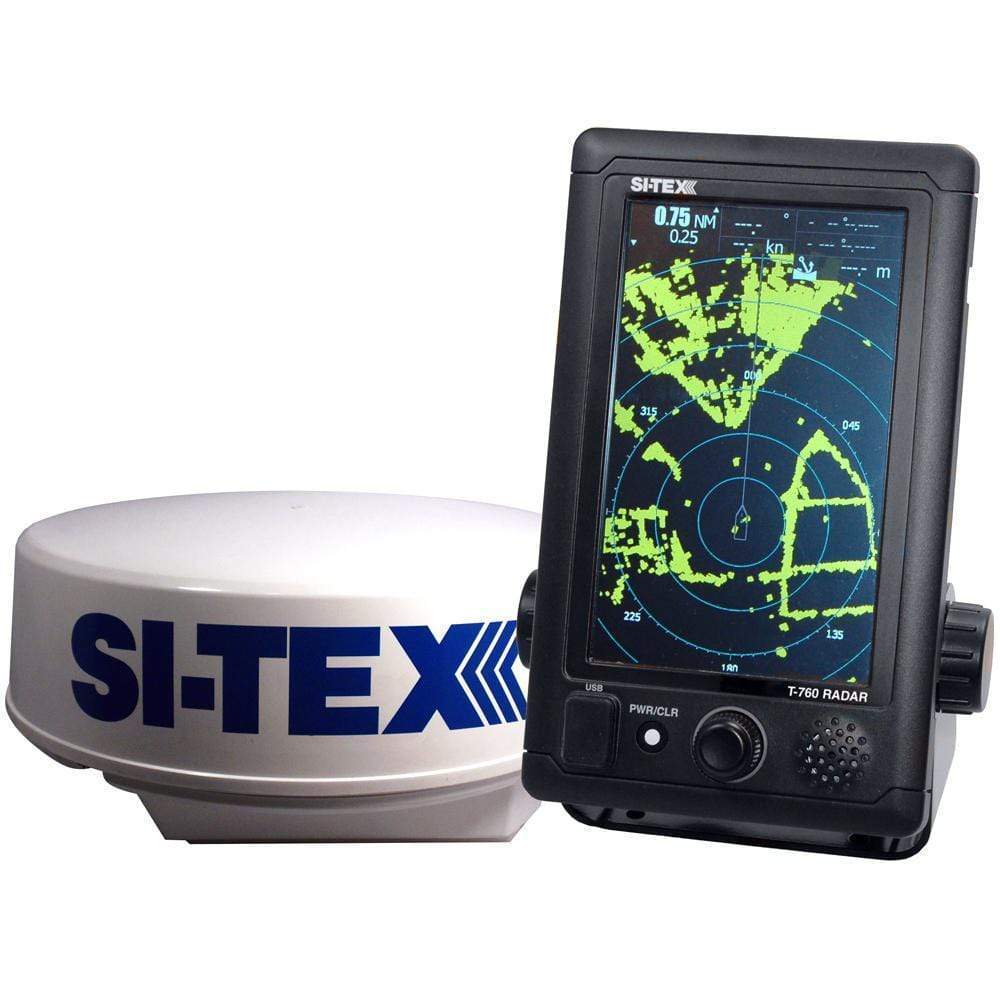

T-760 Compact Color Radar with 4kW 18" Dome

Big radar performance and features are available for any size boat -- and budget with the SI-TEX T-760. A vertically oriented, slim case boasts advanced touch screen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.

The T-760 Series case measures only 5.4" W X 8.9" H X 3.5" D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA - features often associated with larger, costlier systems. Control of all these features is achieved via the T-760's touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.

The series includes the T-760, equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Both the T-760 and T-761 feature powerful 4kW transmitters, ensuring accurate detection and presentation of targets large and small. Both models also offer multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.

Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a SI-TEX Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship's speed and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.

In the SI-TEX tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial as well as recreational vessels. SI-TEX's two-year limited warranty and Long Island, New York-based service department are the navigator's assurance of reliable performance and long-term satisfaction

Features:
  • 7" color LCD display
  • 10M Cable
  • Intuitive touch screen/rotary dial control
  • Standard 50 target AIS tracking
  • Standard 10 target MARPA
  • Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions
  • Features include Relative Motion/True Motion/Head-Up/North-Up
  • Optional color RGB video output

Specifications:

ARPA Available = NONE
Array Size (Inches) = NONE
Cable Length (Meters) = NONE
Hor/Vert Beam Width = NONE
Power - Output (Kilowatts) = NONE
Range - Max (Miles) = 24-Mile
Range Scale = NONE
Resolution (VxH) = NONE
Screen Size = 7"


Normalized SKU: T760
UPC Code: 010407230740

SI-TEX T-760 Literature Download

  Quick Reference Guide
  Owners Manual
  Product Brochure
