Shakespeare 28' Single Side Band Antenna #5300

Shakespeare 28' Single Side Band Antenna #5300

$545.05 $680.28 -20% OFF

Shakespeare 28' Single Side Band Antenna #5300

$545.05 $680.28 -20% OFF

Shakespeare 28' Single Side Band Antenna #5300

$545.05 $680.28 -20% OFF

SKU: SHK-5300

UPC: 719441600044

Category: VHF Antennas

More about this item
  Download Literature

Shakespeare 5300 VHF Antennas

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

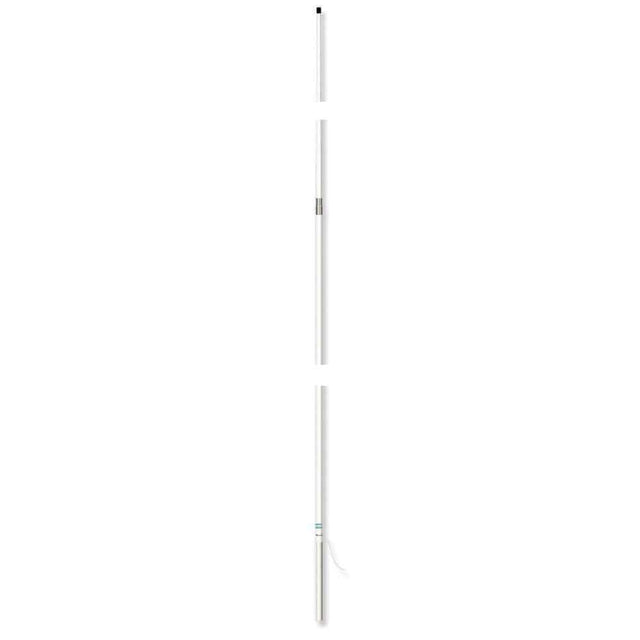

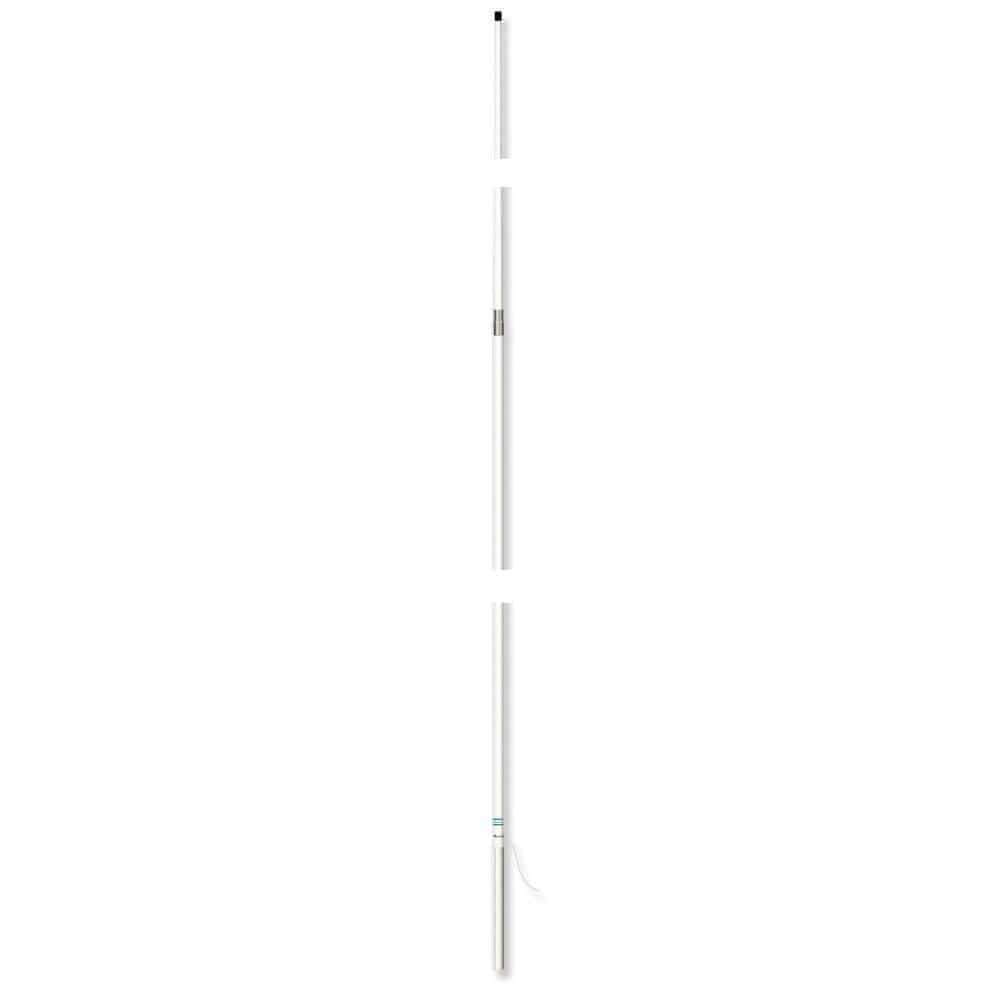

Shakespeare Style 5300 SSB
28' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This heavy duty performer is designed primarily for larger commercial vessels which demand peak performance over the entire HF marine band. Input power up to 1kw. Conductors are permanently sealed in Shakespeare white fiberglass.

  • Chrome-plated brass center fittings, anodized aluminum bottom ferrule
  • Side feed termination band
  • Mount: The 2 3/8" diameter x 24" long 6061-T-6 anodized aluminum sleeve can be strapped directly to a mast or used with Shakespeares Style 483 Clamp Set or Style 484 Wall Mounting Brackets.
  • Two sections: Base 192"; Tip 144"
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: 2-30 MHz HF band with tuner
Bandwidth: 8.4 MHz
SWR: N/A
Impedance: (Ohms): N/A
Gain: N/A
Max Input (Watts): 1000
DC Ground: N/A
Termination: Side Termination
Height (feet): 28
Polarization: Vertical
Radiation pattern: Omni-directional


Specifications:

Antenna Band = SSB
Ferrule Type = Chrome Plated
Length (Inches) = 28'
Cable Length (Feet) = N/A
Cable Type = NONE
Color = White
Construction = Fiberglass
DB Gain (dB) = NONE


SHAKESPEARE SSB 28FT 5300 TRUCK FRT ONLY


Normalized SKU: 5300
UPC Code: 719441600044

Shakespeare 5300 Literature Download

  Quick Reference Guide
Truck Freight Item
