Samlex Switching DC-DC Converter 30-60v Input #IDC-360C-24
Samlex America IDC-360C-24 Converters

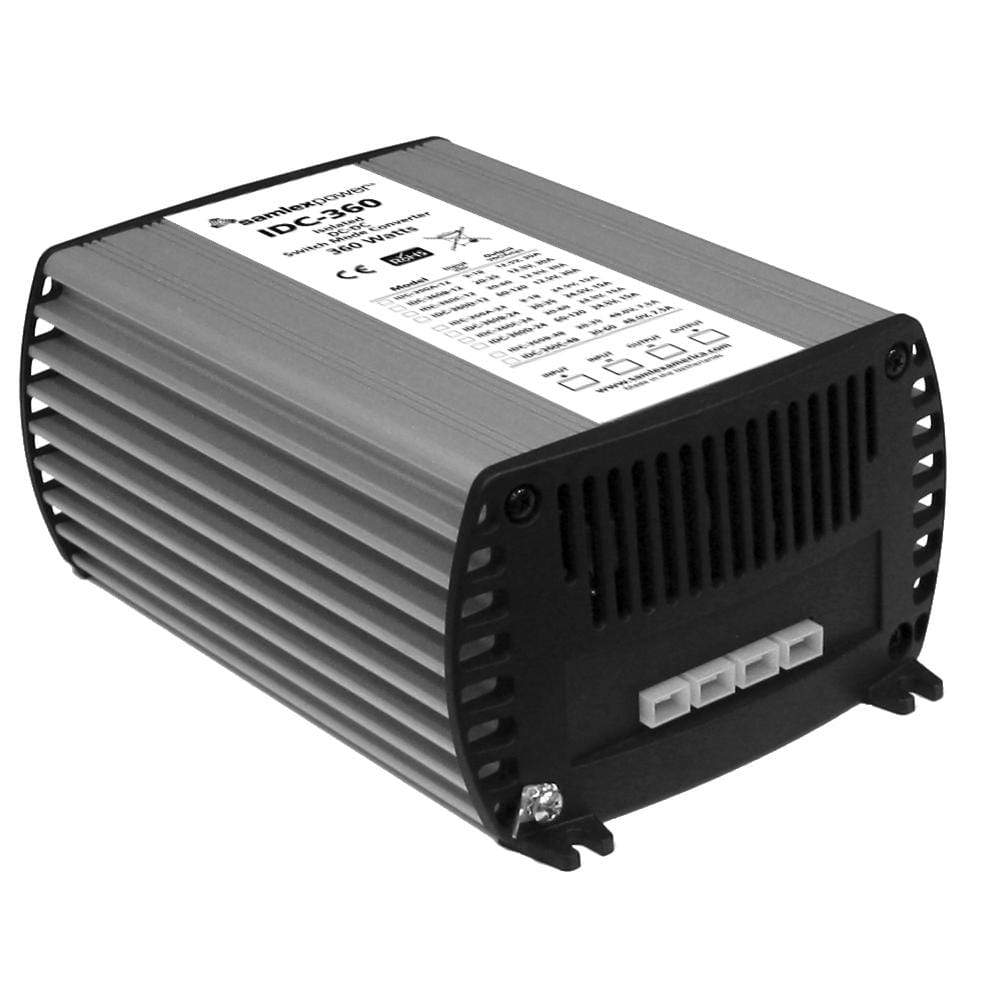

360W Fully Isolated DC-DC Converter - 15A - 30-60V Input - 24V Output
IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC).
- Fully Isolated
- Short Circuit Protected
- Current Limited
- CE Approved
- 2 Year Warranty
- Input: 30-60 VDC
- Output: 24 VDC
- Watts: 360
- Amps: 15 Amps
- Weight: 3.1 (lbs)
- Weight: 1.4 (kg)
- Dimensions: 5.23 x 7.5 x 3.27 (in)
- Dimensions: 132.8 x 190.5 x 83 (mm)
- Safety: CE
- Warranty: 2 Year Limited
- Earth moving equipment
- Heavy trucks
- Marine vehicles
- CB radios
- 24 Volt lighting systems
- AM/FM sound systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Normalized SKU: IDC360C24
UPC Code: 622988067389
Samlex America IDC-360C-24 Literature DownloadOwners Manual
