Raymarine Qualifies for Free Shipping Raymarine TM185MW 1Kw Depth & Temperature CHIRP Transom-Mount #A80803

Raymarine TM185MW 1Kw Depth & Temperature CHIRP Transom-Mount #A80803

$1,799.00 $2,086.84 -14% OFF

Raymarine TM185MW 1Kw Depth & Temperature CHIRP Transom-Mount #A80803

$1,799.00 $2,086.84 -14% OFF

Raymarine TM185MW 1Kw Depth & Temperature CHIRP Transom-Mount #A80803

$1,799.00 $2,086.84 -14% OFF

SKU: RAY-A80803

UPC: 723193862537

Category: Transducers

More about this item

Raymarine A80803 Transducers

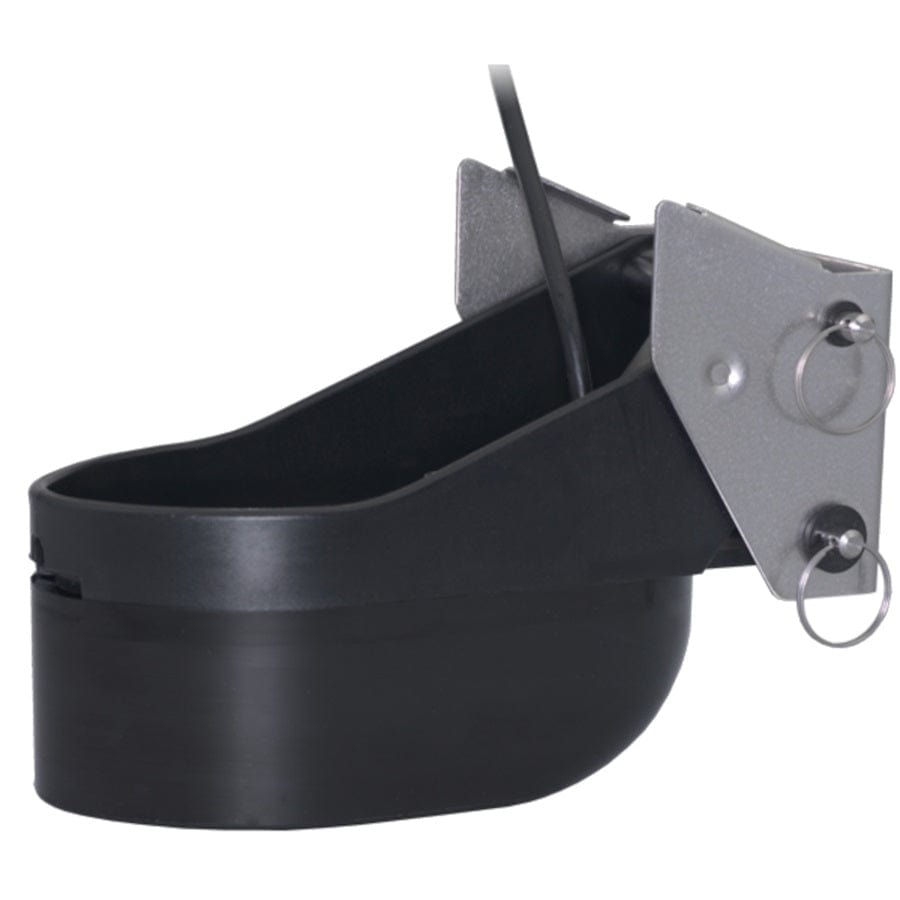

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80803
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300')
  • Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Simple installation on transom of the boat
  • Great performance at boat speeds below 30 knots
  • Easy maintenance and low-cost replacement
  • Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications
Power Rating 1 kW
Transom Angle 2° to 22°
Functions Depth, Temperature
Acoustic Window Urethane
Cable-Length 9 m (30')
Common Use Leisure/Yachting, Fishing
Country of Origin USA
Freq Med Wide 60-100 kHz
Housing Urethane/Stainless Bracket
Hull Material Compatible w/ all hull materials
Max Depth 400 m (1300')
Medium Frequency 60-100 kHz
Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a
Mounting Style Transom
Power Rating 1 kW
Retractable housing No
Single or Dual Frequency CHIRP-Ready Single-Band
Tilted Element No
Weight 4.2 kg (9.2 lb.)

Normalized SKU: A80803
UPC Code: 723193862537
