Raymarine Qualifies for Free Shipping Raymarine RSW Wired Smart Wind Transducer #E70670

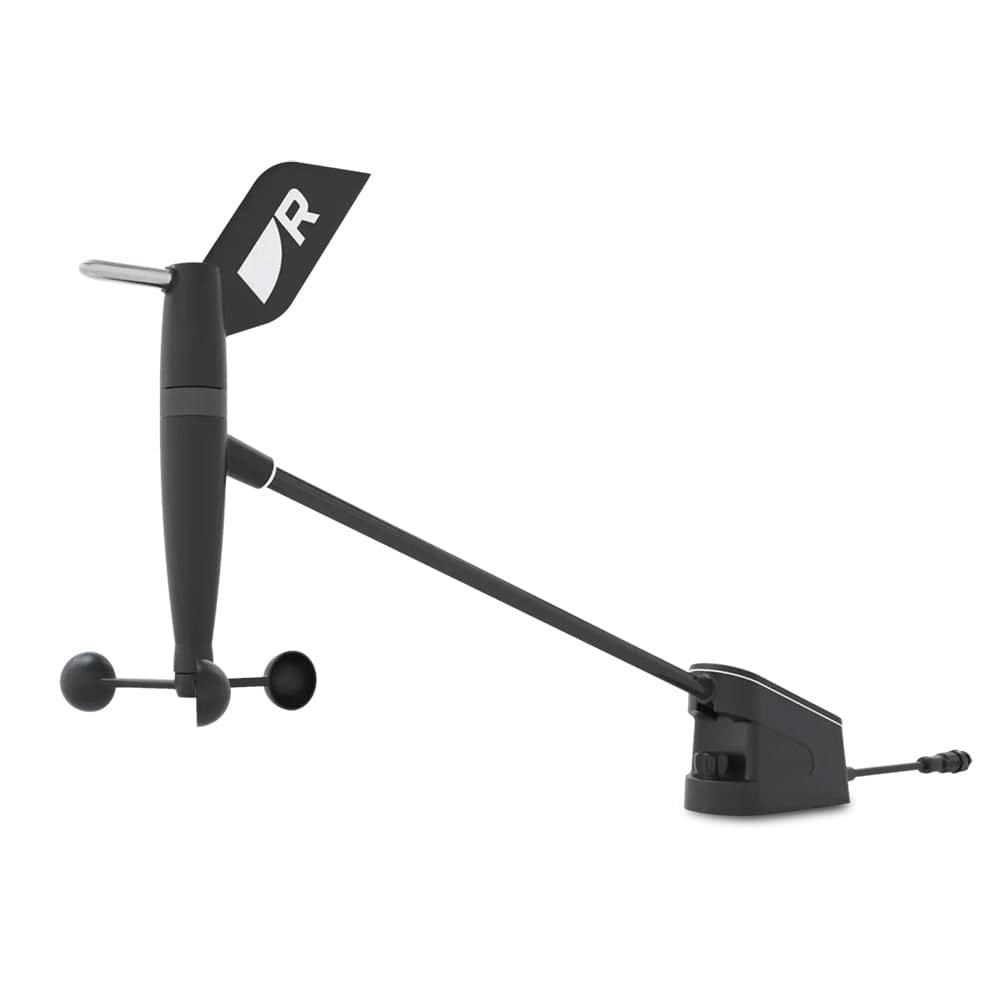

Raymarine RSW Wired Smart Wind Transducer #E70670

$919.13 $1,113.01 -18% OFF

Raymarine RSW Wired Smart Wind Transducer #E70670

$919.13 $1,113.01 -18% OFF

Raymarine RSW Wired Smart Wind Transducer #E70670

$919.13 $1,113.01 -18% OFF

SKU: RAY-E70670

UPC: 723193846629

More about this item

Raymarine E70670 Weather Instruments

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.

Install & Go!

Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

Finely Tuned

Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.

Sail Smarter

Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

Specifications:

Length

  • Wind transducer (including cable): 657.762 mm (25.90 in)
  • Wind transducer (excluding cable): 540.712 mm (21.29 in)
  • Wired gateway: 155.61 mm (6.13 in)

Width

  • Wind transducer: 46.96 mm (1.85 in)
  • Wired gateway: 47.38 mm (1.88 in)

Height

  • Wind transducer: 305.86 mm (12.04 in)
  • Wired gateway: 30.61 mm (1.21 in)

Power

  • Nominal supply voltage: 12 V dc (via SeaTalk NG)
  • Operating voltage range: 9 V to 16 V dc
  • Power Consumption: < 100 mW
  • Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
  • NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1

Environmental

  • Operating temperature range: -25°C to +55°C (-13°F to +131°F)
  • Storage temperature range: -30°C to +70°C (-22°F to +158°F)
  • Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C
  • Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3
  • Wind: 115 mph (185 kph)
  • Vibration: EN 60945:2002 (exposed)

What's In The Box?

  • No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
  • No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
  • 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
  • Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
  • Mast cable, 30 m (98.43 ft) reel
  • Documentation
  • Wind transducer
  • Smart wind-wired gateway
  • SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
