Raymarine E70637-00-102 Chartplotters

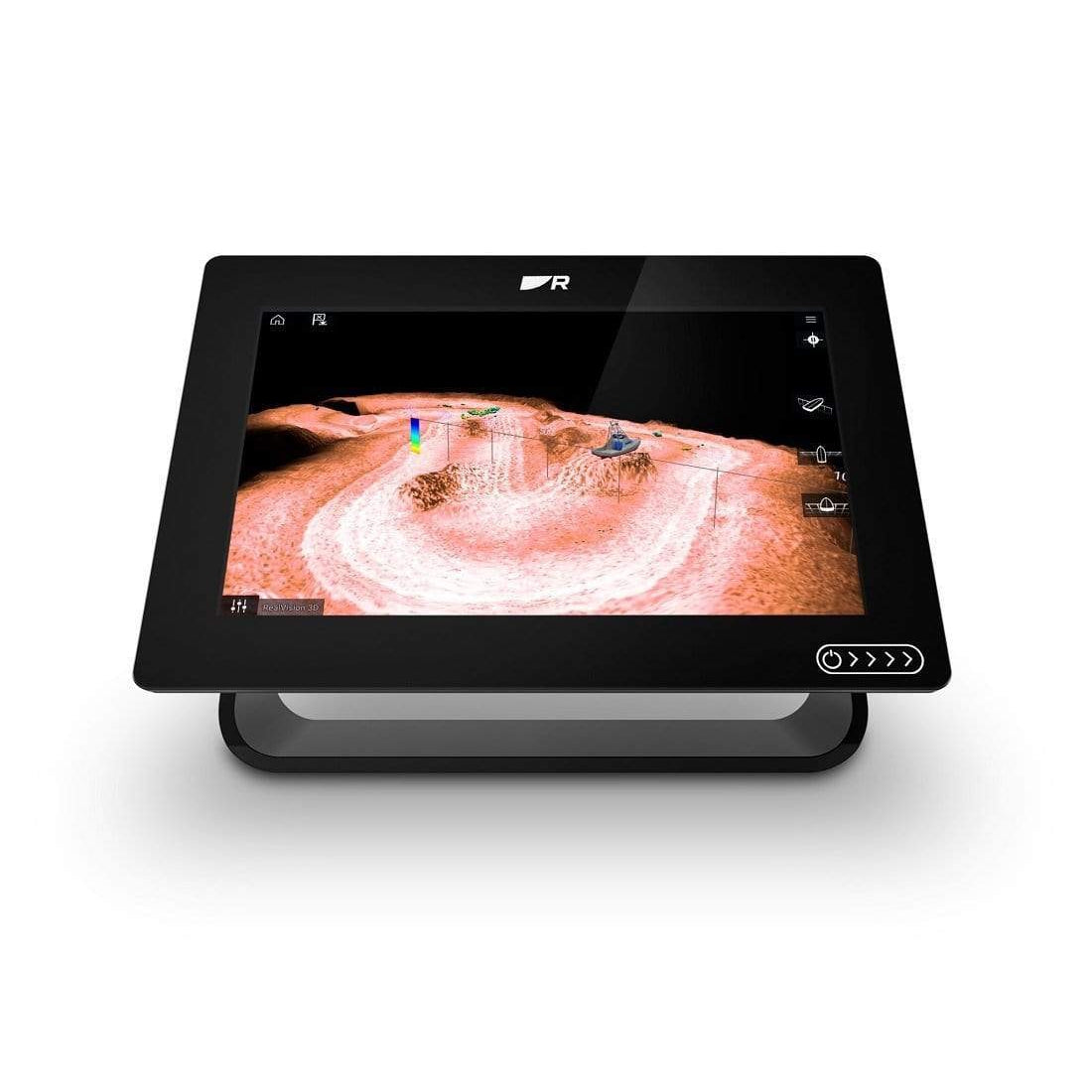

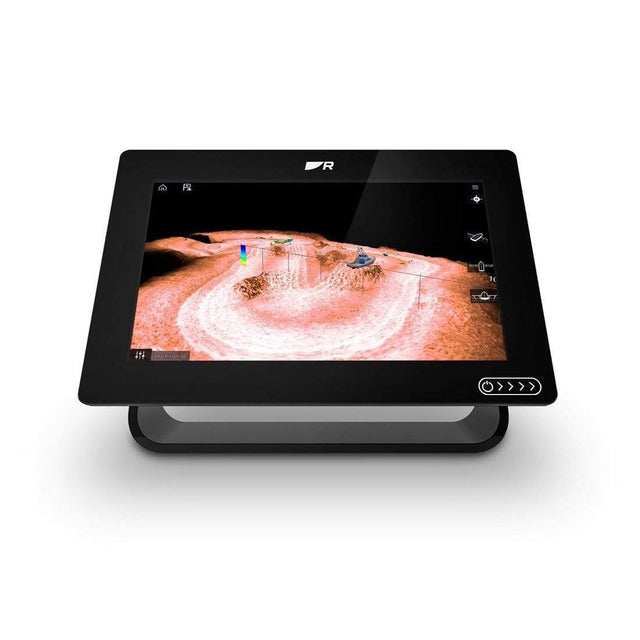

Raymarine Axiom+ 9RV 9" Muilti-Function Display with RealVision Sonar - No Transducer and Lighthouse North America Charts

Model: E70637-00-102
  • Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
  • Powerful quad-core processor, plus increased onboard storage for personal data and apps.
  • Smart and intuitive LightHouse 3 OS makes navigating easy.
  • ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
  • Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
  • IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
  • Network with multiple Axiom displays, radars, sonar, and more.
  • Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Specifications
General
Display Size 9.0 inch High Density IPS
Display Resolution 1280 x 720 (WXGA)
Display Type Multitouch with HydroTough™ rugged hydrophobic coating
Brightness 1,500 nits
Viewing Angle 85° Top, Bottom, Left, Right
Dimensions W x H x D (Excluding trunnion and cables) 9.65 x 6.22 x 3.0in
Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating IPX6 / IPX7
Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range -30°C to +70°C (-22°F to +158°F)
Power
Voltage 12V DC (8V to 16V DC)
Power Consumption (Full brightness) 11.98 Watts
Sensors
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections 25pin RealVision™ type connector
Sonar Depth High CHIRP Sonar = 900 feet (274m)
DownVision™ = 600 feet (183m)
SideVision™ = 300 feet (91m)
RealVision™ 3D = 300 feet (91m)
External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS Yes - NMEA2000 compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only
Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching Yes - Empirbus & C-Zone compatible
Remote Control Yes Optional RMK-10 (A80438)
Networking
Ethernet 1 x 10/100 Mbit/s Network (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0
Navigation
Cartography Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Memory
Internal Memory 16 GB Solid State
External Memory 1x MicroSD Card Slot
Languages 24
Conformances NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210

What's in the Box:
  • Multifunction Display
  • Trunnion bracket
  • Trunnion knobs x 2
  • Suncover — Trunnion mount
  • Panel mount gasket for surface/flush mounting
  • M5x58 Threaded studs x 4
  • M5 Thumb nuts x 4
  • Documentation pack
  • DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
  • Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
  • Rear mounting brackets:
  • Lighthouse North America Charts mSD
