Raymarine Qualifies for Free Shipping Raymarine Axiom 7 DV 7" MFD No Ducer North Amercia Chart #E70364-00-102

Raymarine Axiom 7 DV 7" MFD No Ducer North Amercia Chart #E70364-00-102

$688.12 $833.26 -18% OFF

Raymarine Axiom 7 DV 7" MFD No Ducer North Amercia Chart #E70364-00-102

$688.12 $833.26 -18% OFF

Raymarine Axiom 7 DV 7" MFD No Ducer North Amercia Chart #E70364-00-102

$688.12 $833.26 -18% OFF

SKU: RAY-E70364-00-102

UPC: 723193837856

Category: Chartplotters

More about this item

Raymarine E70364-00-102 Chartplotters

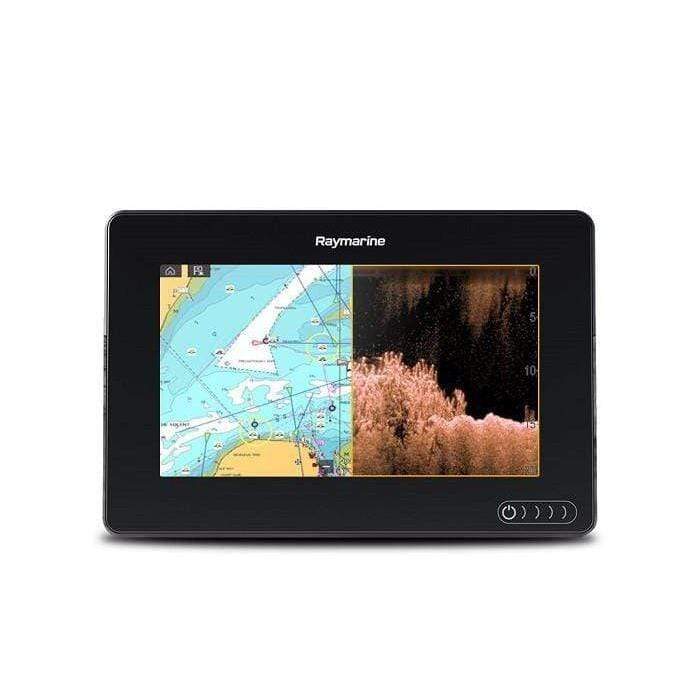

Raymarine Axiom 7 7" MFD with integrated DownVision, 600W Sonar w/Lightnouse NC3 North America lakes and Coastal Tide Stations

Model: E70364-00-102
  • Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.
  • New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.
  • Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
  • Uncluttered Radar - New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays.
  • LightHouse Live View Menu™ - Lets you see radar adjustments in real time.
  • Enhanced Thermal Awareness - Exclusive FLIR ClearCruise™ thermal video analytics technology actively monitors the scene and provide alerts when any non-water objects enter the camera’s field of view
  • Video Monitoring Make Axiom your video observation center. Add docking cameras or keep watch on the crew. View 4 video over IP cameras simultaneously.
  • High-Powered Black Box Sonar Axiom is compatible with CP470 and CP570 CHIRP sonar modules.
  • Marine Audio Control Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
  • Connect Axiom with NMEA2000 and SeaTalkng compatible devices.
  • Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.

A powerful new multifunction navigation system from Raymarine. Withall new LightHouse 3 operating system, and blazing fast quad core performance, AXIOM will transform your time on the water.

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

Specifications
Display Size 7.0" Optically Bonded LCD
Display Resolution 800 x 480 WQVGA
Screen Type Touchscreen
Mounting Options Top / Flush / Bracket / Rear Mounting
Networking 1 x 10/100 Mbits/ Network (RayNet)
Waterproofing Standard IPX6 and IPX7
Memory Card Slots 1x MicroSD
Bluetooth Bluetooth 2.1 + EDR power class 1.5 (supports AVRCP 1.0)
Radar Compatible Yes
Thermal Night Vision Compatible Yes — compatible with FLIR M100 and M200 cameras
Video Cameras Optional
External Sonar Compatible Yes — support for Digital and CHIRP sonar modules
Built-in Sonar Downvision
GPS Built-in GNSS Receiver: GPS/GLONASS/Beidou* - 10Hz 72 Channel
Optional Remote Controls RMK-10
AIS With optional receivers and transceivers
Autopilot Control Evolution Autopilot Integration
Digital Switching Empirbus compatible
Audio Integration Support for NMEA2000 compatible audio devices
Operating Temperature -13 F to +131 F (-25 C to +55 C)
Input Voltage 12V / 24V DC (10.8 V DC to 31.2V DC)

What's in the Box:
  • MFD (supplied with Trunnion adaptor fitted)
  • Trunnion bracket
  • Trunnion knobs x 2
  • Suncover — Trunnion mount
  • Panel mount gasket for surface/flush mounting
  • M5x58 Threaded studs x 4
  • M5 Thumb nuts x 4
  • Documentation pack
  • Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
  • Lightnouse NC3 North America lakes and Coastal Tide Stations MSD Card

  • Normalized SKU: E7036400102
    UPC Code: 723193837856
