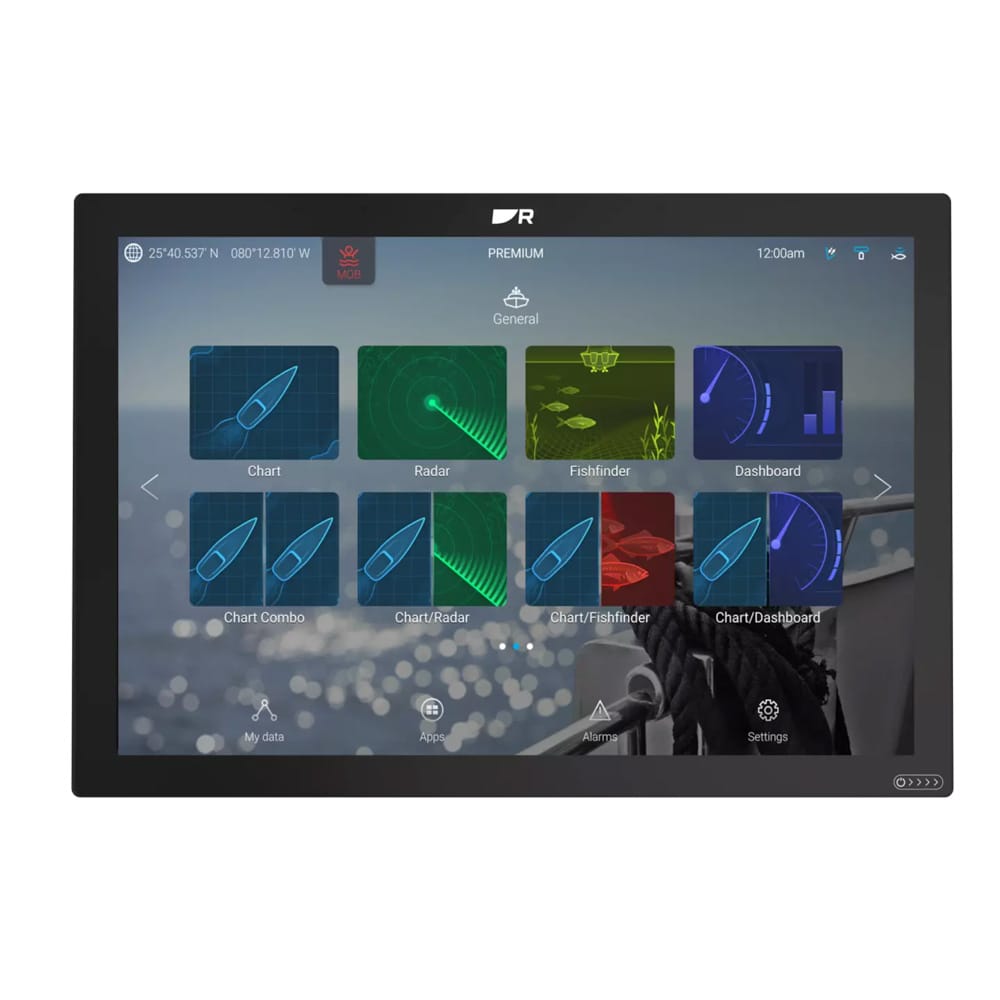

Raymarine Not Qualified for Free Shipping Raymarine Axiom 2 XL 24" MFD Kit with USB Card Reader #T70548

Raymarine Axiom 2 XL 24" MFD Kit with USB Card Reader #T70548

$15,395.00 $20,475.99 -25% OFF

Raymarine Axiom 2 XL 24" MFD Kit with USB Card Reader #T70548

$15,395.00 $20,475.99 -25% OFF

Raymarine Axiom 2 XL 24" MFD Kit with USB Card Reader #T70548

$15,395.00 $20,475.99 -25% OFF

SKU: RAY-T70548

More about this item

Raymarine T70548 Multifunction Displays

Axiom 2 XL 24" MFD Kit with USB Card Reader

The flagship of the Axiom family, Axiom 2 XL, delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Features:

  • 6 Core Processor - Get underway and do everything faster
  • Ample Storage - 64 GB for waypoints, apps, and LightHouse Charts
  • Smooth Video and Faster Charts - Faster video frame rates and 30% faster chart rendering
  • Power That Pushes the Limits - Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
  • Ready for all Conditions - Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
  • Smart Backlighting - Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
  • Remote Control - Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
  • Unleash the Power of Axiom 2 XL - Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Technical Specifications:

  • Dimensions - 15.23" (H) x 22.77" (W) x 6.98" (D)
  • Weight - 24.9 lbs
  • USB Connection - USB-A: Touch input, USB-B: Touch output
  • Accessory Connection - USB Micro B
  • GPS Antenna Connection - TNC type connector
  • External Storage - Remote card reader required
  • Ethernet Connection - PoE RayNet (10/100/1,000 Mbits/s) x 3
  • HDMI Connections - HDMI in, HDMI out
  • Audio Output - Left and Right RCA connectors via Power/Video/Audio cable.
  • Analog Video Connections - Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
  • NMEA 0183 Support - Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
  • NMEA 2000 Connection - DeviceNet connector
  • Wireless Connections - Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
  • External Alarm Connection - Bare-ended wires x 2
  • Internal Storage - 64GB solid state
  • Power Consumption @ 12VDC - 92.5W
  • Power Consumption @ 24VDC - 77.96W
  • Off Current @ 12VDC - PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
  • Off Current @ 24VDC - PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
  • PoE Operating Voltage Range - 9.5VDC to 32VDC
  • Current - 10.03A
  • Operating Voltage Range - 8VDC to 32VDC
  • Fuse Rating - 15A
  • Nominal Supply Voltage - 12VDC/24VDC
  • LEN (NMEA 2000 Load Equivalency Number) - 1
  • Resolution - 1920 x 1200 WUXGA
  • Size (Diagonal) - 24"
  • Illumination - 1300 nits / 1300 cd/m2
  • Viewing Angle - Top 89° / Bottom 89° / Left 89° / Right 89°
  • Ratio - 16:10
  • Type - IPS (In-Plane Switching)
  • Color Depth - 24-bit
  • Number of Simultaneous Touches - 2
  • Operating Temperature - -25°C to +55°C (-13°F to 131°F)
  • Storage Temperature - -30°C to +70°C (-22°F to 158°F)
  • Relative Humidity - up to 93% @ 40°C (104°F)
  • Waterproof Rating - IPx6, IPx7

What's In The Box?

  • MFD (Chartplotter)
  • Mounting gasket tape
  • Rear mounting bars (x2)
  • Mounting bar fixings (M5x20 pozi countersunk) (x4)
  • Mounting fixings - Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet (x 4)
  • Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
  • Documentation
  • DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
  • RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
  • Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
  • Auxilary Alarm
  • RCR-SDUSB - Card Reader + USB
  • MFD VideoIN/Alarm Cable – 2M - A80235
