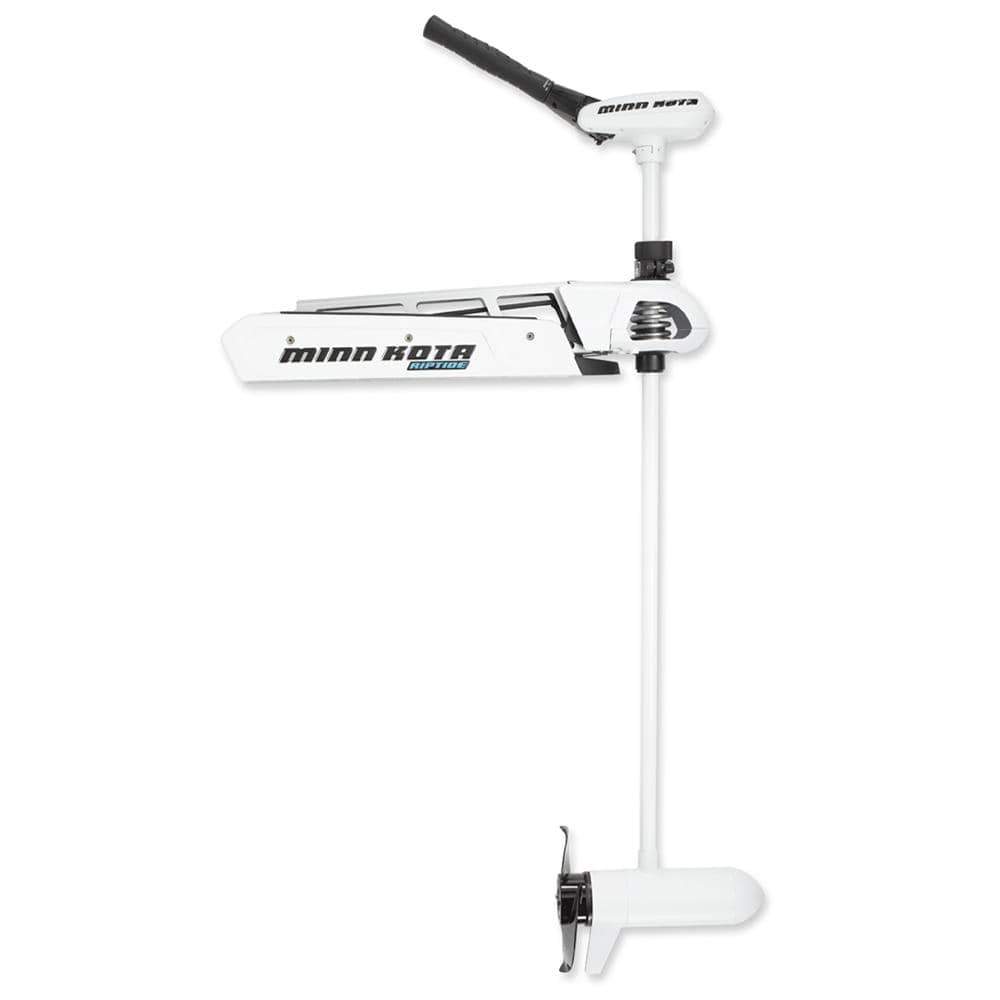

Minn Kota Riptide SF 80 SW Bow-Mount 24v-80 lb 52" #1363640

Minn Kota 1363640 Trolling Motors

Riptide SF
Saltwater Bow Mount

Arm yourself with the ultimate weapon against saltwater. The all-new Riptide SF features fewer moving parts, tighter tolerances, advanced corrosion protection and our revolutionary new Mono-Arm. You get no-nonsense power, stealth operation and rugged, reliable performance - everything you need to put saltwater in its place.

Mono-Arm Design
Sometimes, the simplest solution is best. In this case, it's a revolution. Riptide SF's innovative Mono-Arm Design features an extruded, anodized aluminum, structural beam that operates with no metal-to-metal contact and 75% less torsion. A single hinge point and rear pivot bearing with 20% more surface area deliver less wear, longer life, and quieter operation than traditional motor mounts.

Counter-Tension Stabilizer (CTS)
CTS uses an integrated spring that applies force whether the motor's stowed or deployed. On the water, that translates to a motor with no play, no give, reduced steering torque and silent operation.

Lift-Assist
Riptide SF's Lift-Assist design cuts the weight of stow and deploy in half, making it as easy as lifting your SUV tailgate. It features a stainless steel, nitrogen-charged gas spring to get you in and out of the water with ease.

Removable Bowguard 360°
Lifting the motor and bowguard off of the mount is now even easier on Riptide SF - just remove a single cap screw. The Bowguard 360'™ also features a dual bearing system that eliminates noise and allows for improved breakaways from any angle.

Quick-Lock Cam Depth Adjuster
Change depths simply and securely with the Quick-Lock cam adjuster. It makes depth adjustment simple and locks in tight to keep your motor right where you want it.

Tilt/Extend Tiller
Get the best of both worlds on your hand control motor with the new Tilt/Extend Tiller. It can both tilt (up to 45°) and extend (6") to fit the way you fish.

Push-to-Test Battery Gauge - Riptide SF
Get an instant "state of charge" with this easy-to-read gauge.

Digital Maximizer
Digital Maximizer™ controls and optimizes power to extend battery life and reduce damaging heat. You'll stay on the water up to five times longer on a single charge.

Weedless Wedge 2 Prop
Push weeds away and take on the thick stuff without battery-draining chopping and hacking. Weedless Wedge™ 2 features swept-back, flared blades for unrelenting, reliable prop performance.

Advanced Corrosion Protection
Riptide motors are impervious to saltwater's corrosive effects, thanks to premium-grade marine alloys and aluminum upper arms. Metals undergo a rigid multi-step cleaning process before being anodized or coated with a special zinc dichromate armor plating. All components are then finished with a durable 5-mil TGIC polyester, powder coat paint. When it's all done, you're left with unequaled corrosion protection.

Full Encapsulated Electronics
Marine-grade urethane fully encapsulates Riptide control boards to protect the electronic circuitry. Also, all electrical connections are sealed with liquid-tight heat shrink tubing to form an impregnable barrier against saltwater

Sacrificial Anode
Galvanic corrosion occurs when two dissimilar metals come into electrical contact through saltwater. Riptide fights back with a sacrificial zinc anode, a composite shaft and properly balanced materials that are close in electrical potential. The result is a motor that's completely protected from saltwater's destructive forces.

Two-Year Warranty
This motor is backed up with Minn Kota's two-year warranty

Specifications

• Control: Tilt/Extend Tiller
• Volts: 24
• Max Thrust: 80 lbs.
• Shaft Length: 52"
• Speed Control: Variable
• Max. Amp Draw: 56
• Prop: Weedless Wedge 2 (MKP-33)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

3X Steering = No
Maximizer = Yes
Mounting Style = Bow
Salt Water/Fresh Water = Salt
Shaft Length (Inches) = 52"
Speeds (Fwd/Rev) = Variable
Thrust (Pounds) = 80
Universal Sonar = No
Voltage - Input Range (Volts) = 24v
Mounting Bracket = Lift-Assist/Bowguard 360
Autopilot = No
Battery Meter = No
Boat Length - Max (Feet) = 25'
Control Type = Tilt/Extend Tiller

MINN KOTA RIPTIDE RT SF 80/B BG/HAND 24V 80LB 52"
