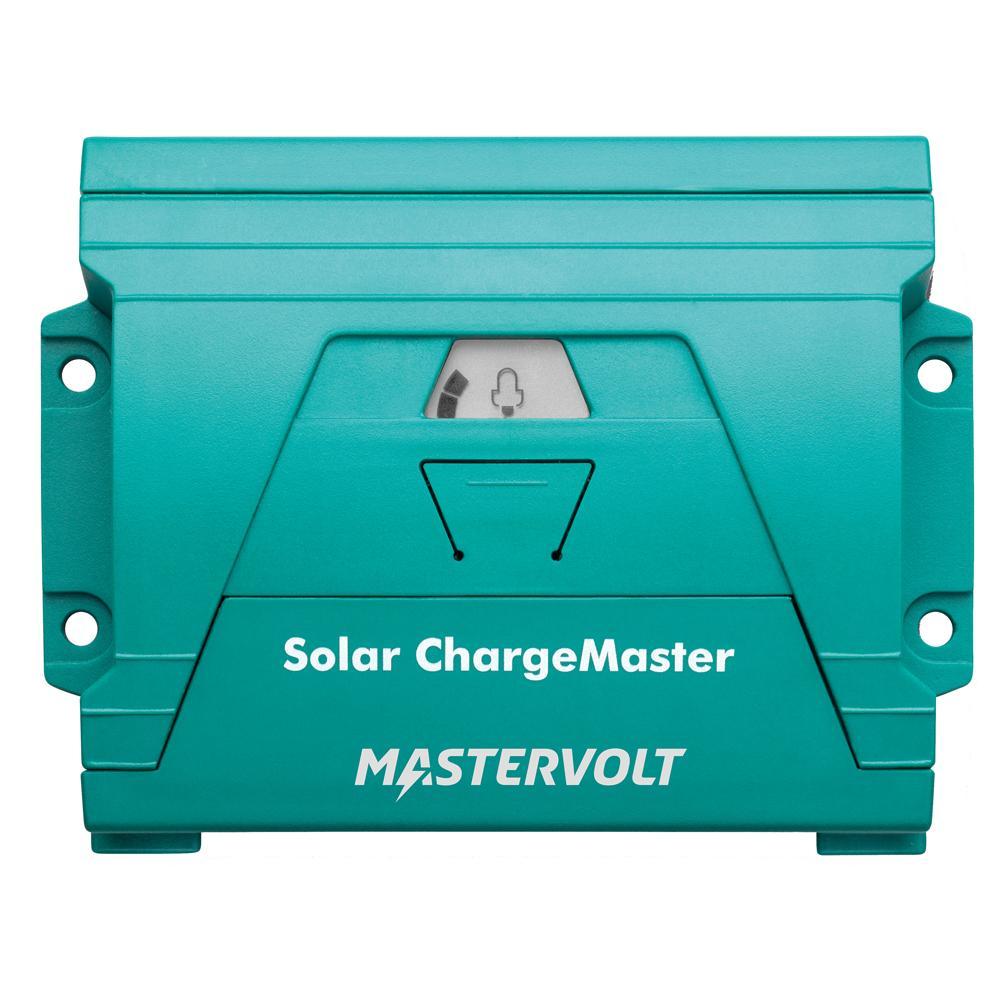

Mastervolt Solar Chargemaster SCM-N 20 #131802000

Mastervolt 131802000 Battery Chargers

• High efficiency: your batteries are charged quickly

• Capacity for solar panel configurations of up to 3600 Wp

• Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries

• Fast and flexible setting of battery type

• Battery temperature sensor for long lifespan

• Automatic 12V/24V/48V detection

• Switchable output

• Noiseless operation

• LCD display

• Fully protected against overtemperature, overload, high/low battery voltage

• High/low PV voltage, short circuit and reverse polarity

• Display/read-out: LCD display with battery state of charge, status output, battery setting

• Dimensions, H x W x D: 3.9" x 5.5" x 1.6"

• Weight: 0.4 lb

• Alarms: buzzer

• Cooling: passive

• Protection degree: IP20

• Grounding: (-) terminal

• Technology: PWM (Pulse Width Modulation)

• Temperature range (ambient temp.):-13 to 122 xF

• Cable size: max. 16 mm} Litz wire

• Safety protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients

• Relative humidity: 95% non-condensing

• System voltage (battery): 12/24 V auto select

• Battery types: AGM, gel, wet, Lithium Ion

• Battery temperature sensor: yes

• Lithium Ion protection: via DC relay & Multipurpose Contact Output, product code 77030500

• Max. charge current at 25 xC: 20 A

• Switchable output (max. current): 20 A

• Energy consumption (night): 5 mA

• Nom. PV current at 25 xC: 20 A

• PV start voltage (12/24 V): 12.8 V/25.6 V

• Max. PV voltage (Tmin): 50 V

• Max. PV power (12 V): 360 Wp

• Max. PV power (24 V): 720 Wp
