Sold Out

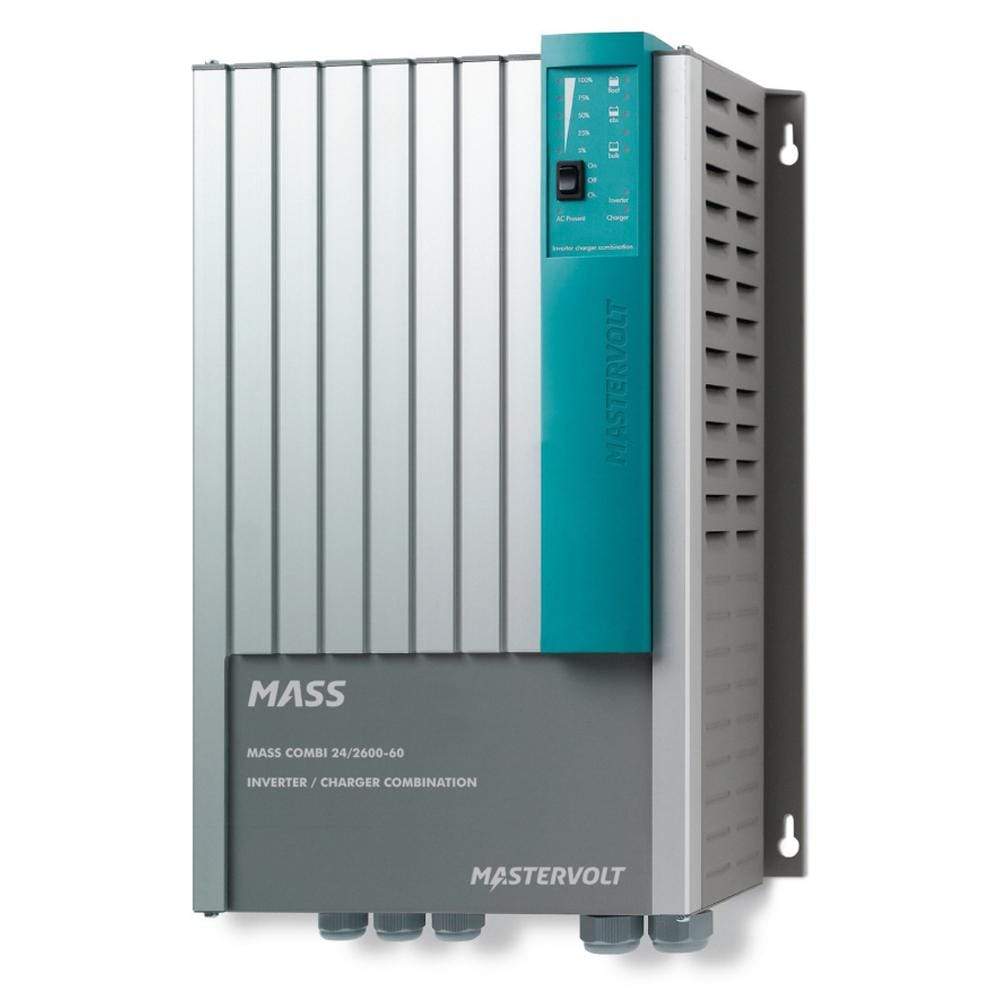

Mastervolt Mass Combi 24v 2600w 60a 230v #36022600
Mastervolt 36022600 Battery Chargers
Mass Combi 24/2600-60 (230V)Continuous power and peace of mind in all conditions
The renewed Mass Combi offers the best price/quality ratio. Based on the exceptionally reliable Mass Combiseries, the four new models now offer even more power at a highly competitive price. In addition, they arealso available in two customer-friendly variations with remote control or MasterBus.
The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge twobattery banks. The inverter with high peak power starts even the heaviest loads, with the Mass Combi12/1600 being easily sufficient for your espresso machine. A built-in distribution system switches betweengrid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferredgroup.
Grid connected solar power system with energy storage
The Mass Combi enables the expansion of a grid connected solar power system with energy storage inbatteries. This way the majority of the generated energy is used, and users are less dependent on theelectricity grid. In this setup, the Mass Combi is part of a MasterBus controlled system.
The benefits of the improved Mass Combi:
- Compact, lightweight and no hum thanks to HF technology
- High yield and more power from your batteries
- Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life
- Charges two individual battery banks simultaneously
- Quiet, powerful inverter with 200 % peak power
- Power Assist: extra power assistance from the batteries in case of limited grid or generator power(prevents blown fuses)
- Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters
- Dual AC outputs to separate critical equipment from heavy loads
- Professional connections ensure fast installation and operational security
- CE approved and E-marking for mobile applications
Specifications
Specifications Sine Wave Inverter
-
Nomimal DC voltage: 24 V (19-31 V)
-
Output voltage: 230 V (± 5 %), adjustable 180-250 V 50/60 Hz (± 0.05 %)
-
Output waveform: true sine, Thd < 2.5 % under standard conditions
-
Continuous power at 25°C / 77°F, cos phi 1: 2550 W
-
Max. peak load: 4000 W
-
Max. efficiency: >= 90 %
-
Parallel configuration: yes, up to 2 units
- Synchronize with mains/generator: yes
Specifications Battery Charger
-
Input voltage range: 180-265 V
-
Max. input current: 8.5 A
-
Max. charge current at 25°C / 77°F: 60 A at 28.5 V
-
Secondary charger output current: 5 A
- Battery temperature sensor: yes, included
Specifications Transfer System
-
AC output 1: 25 A (short break output)
-
AC output 2: 50 A (power output)
- Transfer speed: half seamless (25 ms max., 10 ms typical)
General Specifications
-
Display/read-out: LED display
-
Dimensions, HxWxD: 19.5 x 12.5 x 6.1 inch
-
Weight: 24.3 lb
- Approvals: CE, ABYC, E4
Technical Specifications
-
Charge characteristic: IUoUo, automatic / 3-step+ for gel/AGM/MLI/wet/spiral/traction
-
Ground relay: yes, configurable
-
Temperature range (ambient temp.): -25°C to 60°C, derating > 25°C-13 to 140°F
-
Protection degree: IP23 (vertical mounting)
-
Protections: over temperature, overload, short circuit, high/low battery voltage
-
Cooling: maintenance-free vario fans
- MasterBus compatible: yes, in combination with a MasterBus Combi Interface
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
Amps - Output = NONE
Amps Per Bank = NONE
Banks = NONE
Battery Type = NONE
Charger Type = NONE
Portable = NONE
Voltage - Charger Input = NONE
Voltage - Output (Volts) = NONE
Normalized SKU: 36022600
Mastervolt 36022600 Literature Download
Owners ManualProduct Brochure
