More about this item

Magnum Energy MS2000-L-U Inverters

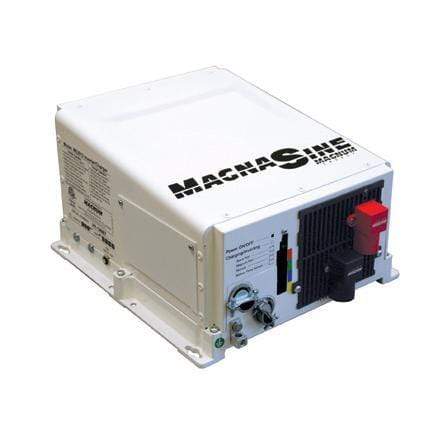

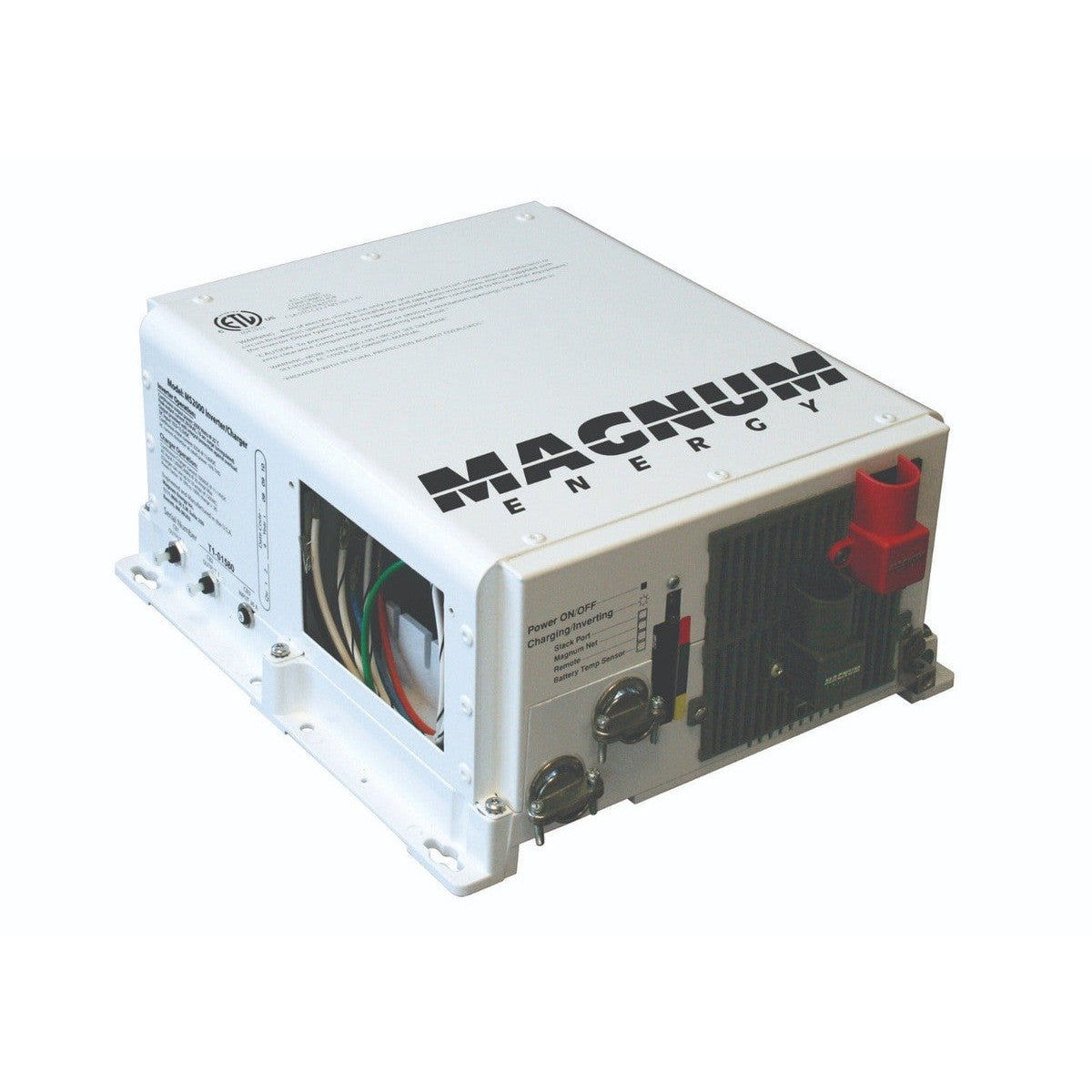

Magnum MS2000-L 2000 Watt, 12vDC Inverter with 100 Amp PFC Charger

Model: MS2000-L
  • Pure Sine Wave — Power your TVs, computers, and other sensitive electronics without worry. The MS Series provides clean, reliable inverter power with low total harmonic distortion (THD) of less than 5%.
  • Accessible Design — The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter accessible.
  • Versatile Mounting — Mount the MS Inverter/Charger on a shelf, bulkhead, or even upside down.
  • Lightweight — The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
  • Multiple Ports — The MS Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
  • Convenient Switches — The MS Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.

The Magnum-Dimensions MS Series Inverter/Charger is a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger — 25-30% less AC current than standard chargers.

Specifications
General
Transfer relay capability 30 ACC max. each inpu
Five stage charging capability Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™
Battery temperature compensation Standard with available temp sensor connected (battery temp 0-50° C)
Internal cooling 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
Overcurrent protection Yes, with two overlapping circuits
Overtemperature protection Overtemperature protection
Corrosion protection Yes, PCB’s conformal coated, powder coated chassis/top, and stainless steel fasteners
Inverter
Input battery voltage range 9 - 16.8 VDC
AC output voltage accuracy 120 VAC ± 5%
Output frequency and accuracy 60 Hz ± 0.1 Hz
Total Harmonic Distortion (THD) < 5%
1 msec surge current (amps AC) 50
100 msec surge current (amps AC) 33
5 sec surge power (real watts) 3300
30 sec surge power (real watts) 3100
5 min surge power (real watts) 2800
30 min surge power (real watts) 2200
Maximum continuous input current 267ADC
Inverter efficiency (peak) 90.6%
AC Relay Transfer time (minimum) 16 msecs
Power Consumption - searching <8 watts
Power Consumption - inverting (no load) 25 watts
Output Waveform Pure Sine Wave
Charger
Continuous output at 25° C 100 ADC
Charger efficiency 85%
Power factor > .95
Input current for continuous rated output 15 AAC
Dimensions l x w x h 13.75in x 12.65in x 7in

Normalized SKU: MS2000LU
