Magnum Energy Not Qualified for Free Shipping Magnum Energy 2800 watt/120v AC Inverter with 125 amp PFC Charger #MS2812-L

Magnum Energy 2800 watt/120v AC Inverter with 125 amp PFC Charger #MS2812-L

$2,576.40 $2,906.18 -12% OFF

Magnum Energy 2800 watt/120v AC Inverter with 125 amp PFC Charger #MS2812-L

$2,576.40 $2,906.18 -12% OFF

Magnum Energy 2800 watt/120v AC Inverter with 125 amp PFC Charger #MS2812-L

$2,576.40 $2,906.18 -12% OFF

SKU: MEY-MS2812-L

UPC: 892608001110

Category: Inverters

More about this item

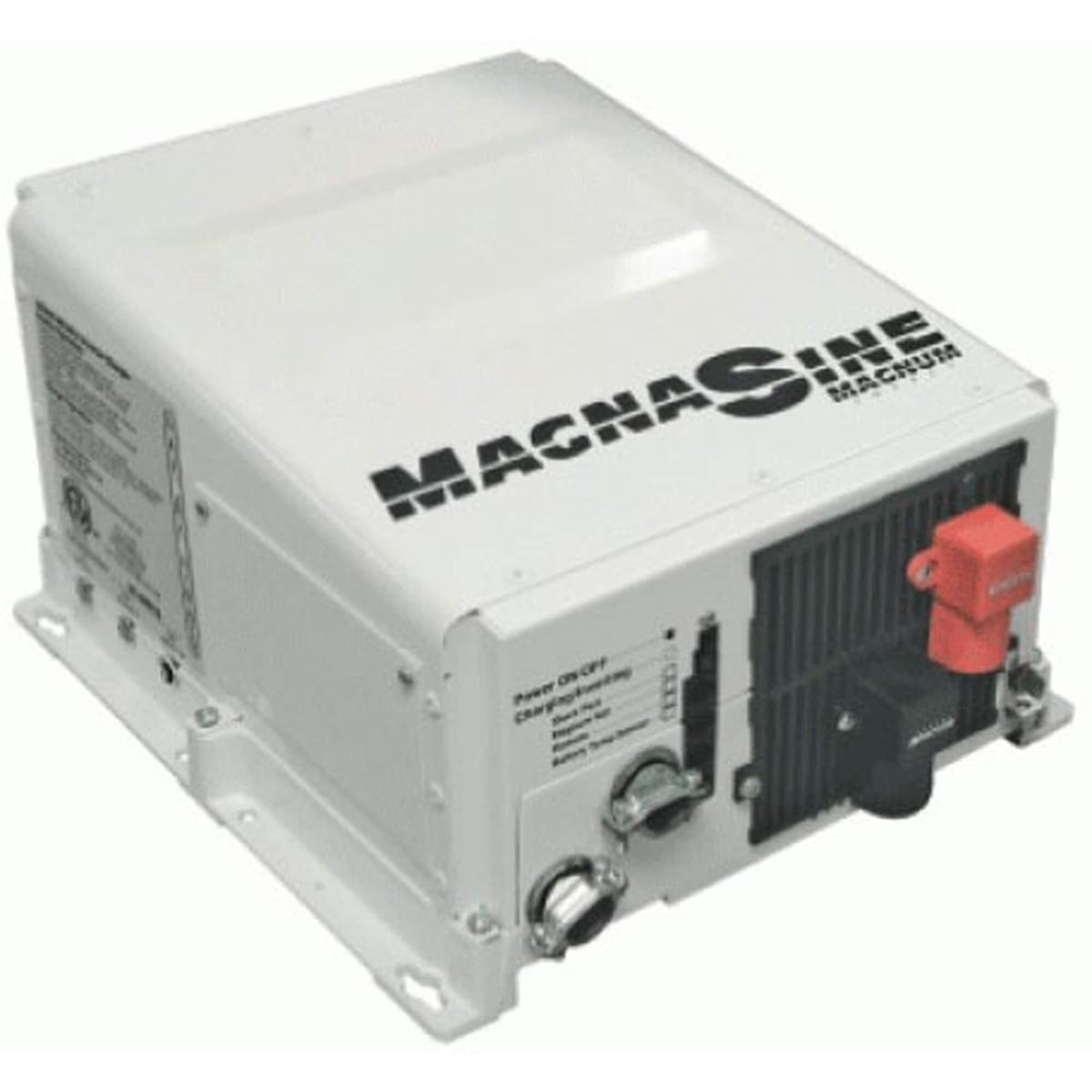

Magnum Energy MS2812-L Inverters

The Magnum MS2812 is a 2800-watt, 120-volt AC inverter with a 125-amp Power Factor Corrected (PFC) charger, designed for efficient power conversion and battery charging.

  • Input battery voltage range: 9 - 16.8 VDC
  • AC output voltage accuracy: 120 VAC ± 5%
  • Output frequency and accuracy: 60 Hz ± 0.1 Hz
  • Total Harmonic Distortion (THD): < 5%
  • 1 msec surge current (amps AC): 70
  • 100 msec surge current (amps AC): 40
  • 5 sec surge power (real watts): 3900
  • 30 sec surge power (real watts): 3800
  • 5 min surge power (real watts): 3200
  • 30 min surge power (real watts): 3000
  • Output power (continuous watts): 2800
  • Maximum continuous input current: 373 ADC
  • Inverter efficiency (peak): 90%
  • AC Relay Transfer time (minimum): 16 msecs
  • Power Consumption - searching: < 8 watts
  • Power Consumption - inverting (no load): 30 watts
  • Output Waveform: Pure Sine Wave
  • Continuous charger output at 25° C: 125 ADC
  • Charger efficiency: 85%
  • Power factor: > .95
  • Input current for continuous rated output: 18 AAC
  • Transfer relay capability: 60ACC total
  • Five-stage charging capability: Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
  • Battery temperature compensation: Standard with available temp sensor connected (battery temp 0-50° C)
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Overcurrent protection: Yes, with two overlapping circuits
  • Overtemperature protection: Yes on transformer, MOSFETS, and battery
  • Corrosion protection: Yes, PCB’s conformal coated, powder coated chassis/top, and stainless steel fasteners
  • Warranty: Three years parts and labor
  • Physical dimensions (l x w x h): 13.75 x 12.65 x 8.0 inches (34.9 cm x 32.1 cm x 20.3 cm)
  • Mounting: Shelf or wall (vents not allowed to face downward unless ME-CB or MMP/MP is installed)
  • Unit weight: 55 pounds (24.9 kg)
  • Shipping weight: 62 pounds (28.1 kg)
  • Max operating altitude: 15,000 feet (4570 m)
  • Temperature (Operating/Non-operating): -20° C to +60° C (-4° F to 140° F) to -40° C to +70° C (-40° F to 158° F)
  • Operating humidity: 0 to 95% RH non-condensing
  • Replaces Magnum Energy MS2812-L-U

Normalized SKU: MS2812L
UPC Code: 892608001110
