Lowrance Qualifies for Free Shipping Lowrance Elite FS 9 Active Imaging 3in1 Ducer C-Map Contour+ Reman #055-15692-001

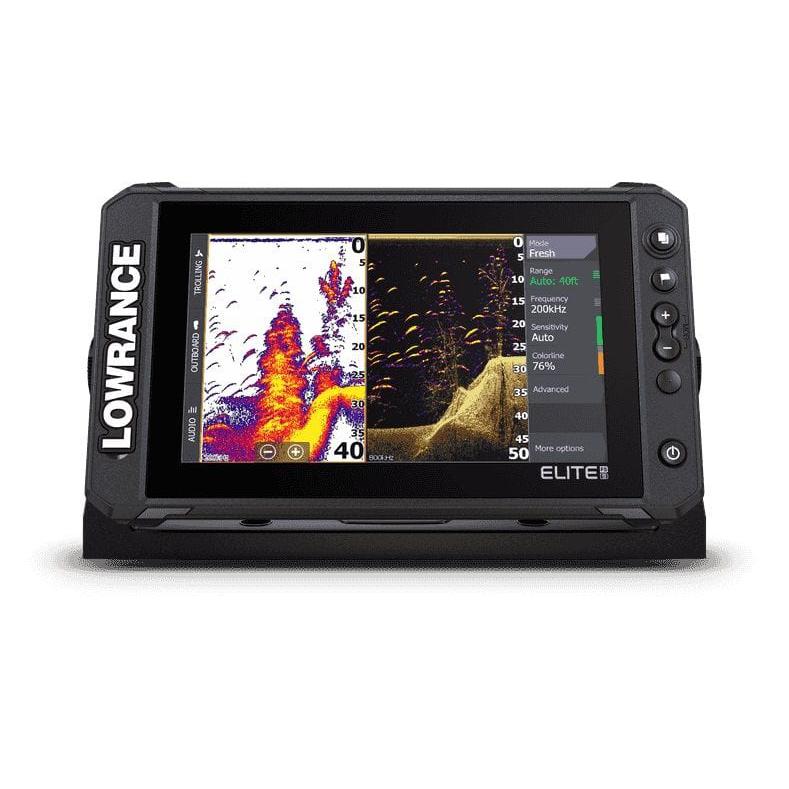

Lowrance Elite FS 9 Active Imaging 3in1 Ducer C-Map Contour+ Reman #055-15692-001

$697.86 $845.06 -18% OFF

Lowrance Elite FS 9 Active Imaging 3in1 Ducer C-Map Contour+ Reman #055-15692-001

$697.86 $845.06 -18% OFF

Lowrance Elite FS 9 Active Imaging 3in1 Ducer C-Map Contour+ Reman #055-15692-001

$697.86 $845.06 -18% OFF
Brand: Lowrance

SKU: LOW-055-15692-001

UPC: 9420064135479

Category: Fishfinders

More about this item

Lowrance 055-15692-001 Fishfinders

Lowrance Elite FS 9 with Acdtive Imaging 3 in 1 and C-Map Contour+ - Remanufacgtured

Model: 055-15692-001
  • ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
  • Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
  • High Resolution Multi-touch screen
  • Preloaded with C-MAP Contour + charts (AMER,APAC)
  • NMEA 2000®: Support and control NMEA 2000® devices
  • Halo Radar: Drive Lowrance radar domes directly
  • Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts

Specifications
Environmental
Operating temperature range -15°C to +55°C (5°F to 131°F)
Storage temperature -20°C to +60°C (4°F to 140°F)
Waterproof rating IPX6 and IPX7
Electrical
Supply voltage 12 V DC (10 - 17 V DC min - max)
Recommended fuse rating 3 A
Power consumption (maximum) 28 W (2 A at 13.8 V DC)
Display
Resolution 800 x 480 pixels
Viewing angles in degrees 50° top, 60° bottom, 70° left and right
Brightness > 1200 nits
Touch screen Multitouch
Physical
Weight (display only) 1.2 kg (2.7 lbs.)
Compass Safe Distance 0.5 m (1.6 ft.)
Interface/Connectivity
NMEA 2000® 1 port (Micro-C connector)
1 port (Micro-C connector) 1x slot (microSD, SDXC)
Ethernet 1 port, (5-pin Ethernet connector, 100Base-T)
Sonar 1 port (9-pin connector)
WiFI Internal 802.11b/g/n : No wireless networking between units
Bluetooth® 4.0 with support for Bluetooth® Classic
GPS 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:
  • Elite FS 9 Display - Remanufactured
  • Sun cover
  • Mounting bracket and knobs
  • Power cable
  • Fuse and fuse holder
  • Active Imaging 3-IN-1 Transducer

  • Normalized SKU: 05515692001
    UPC Code: 9420064135479
