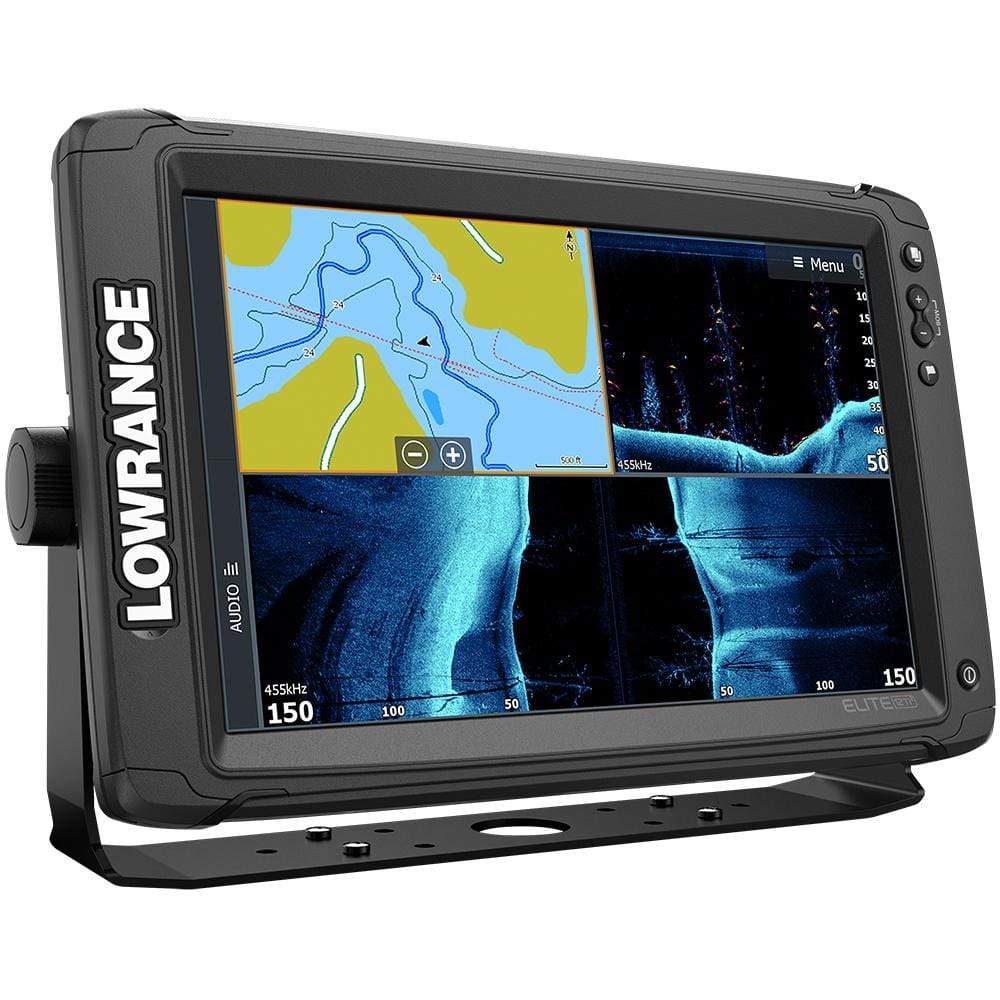

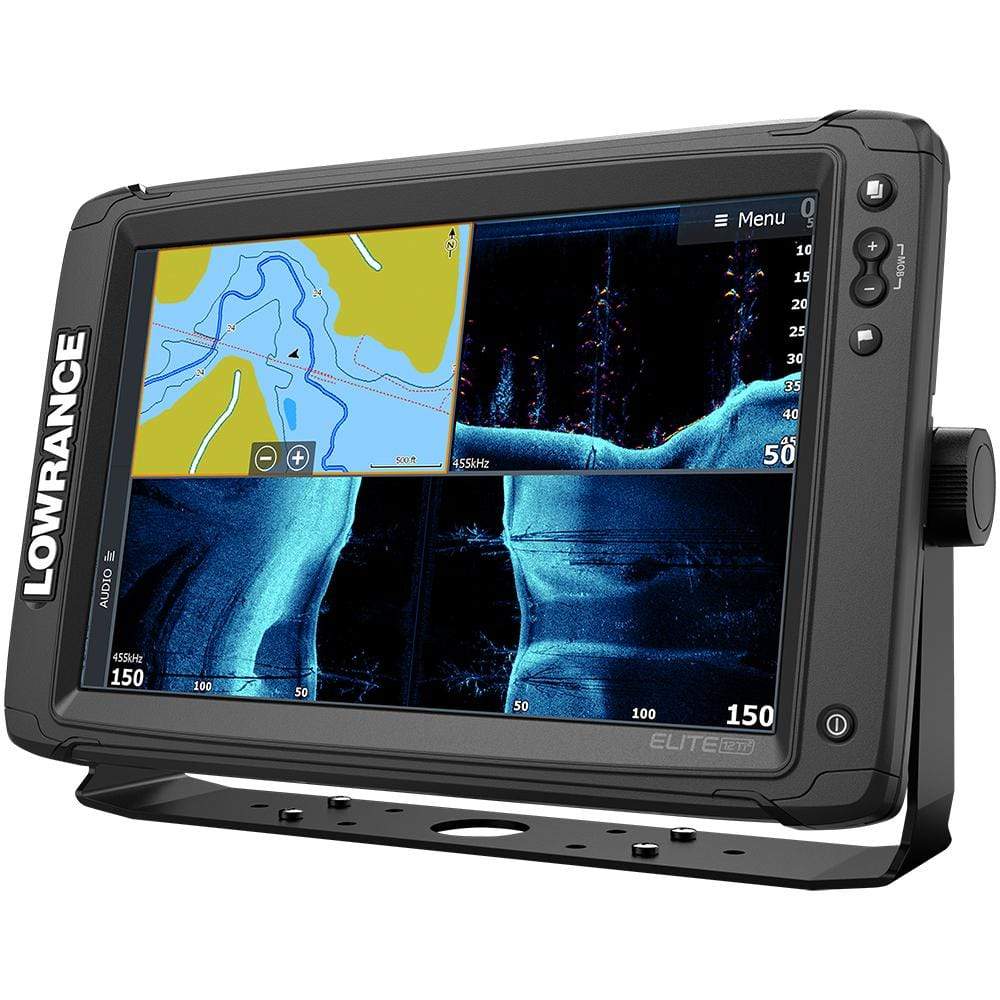

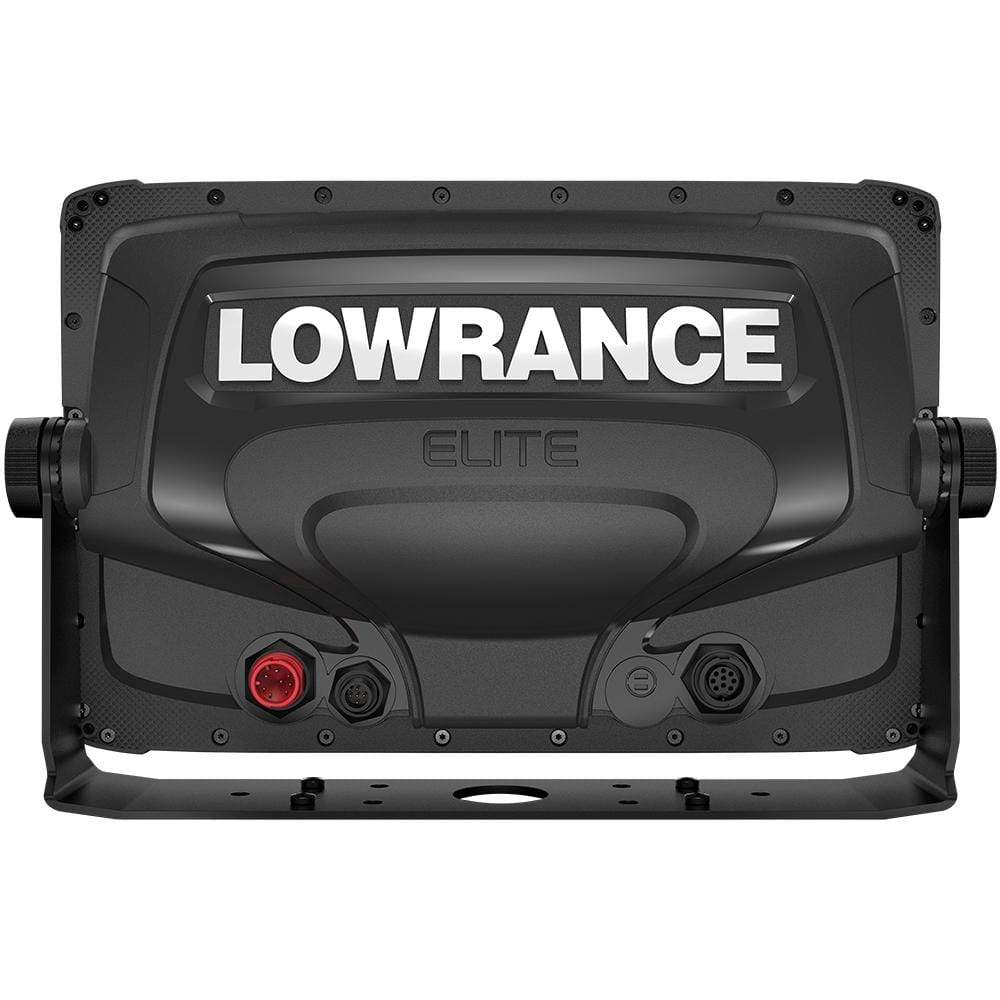

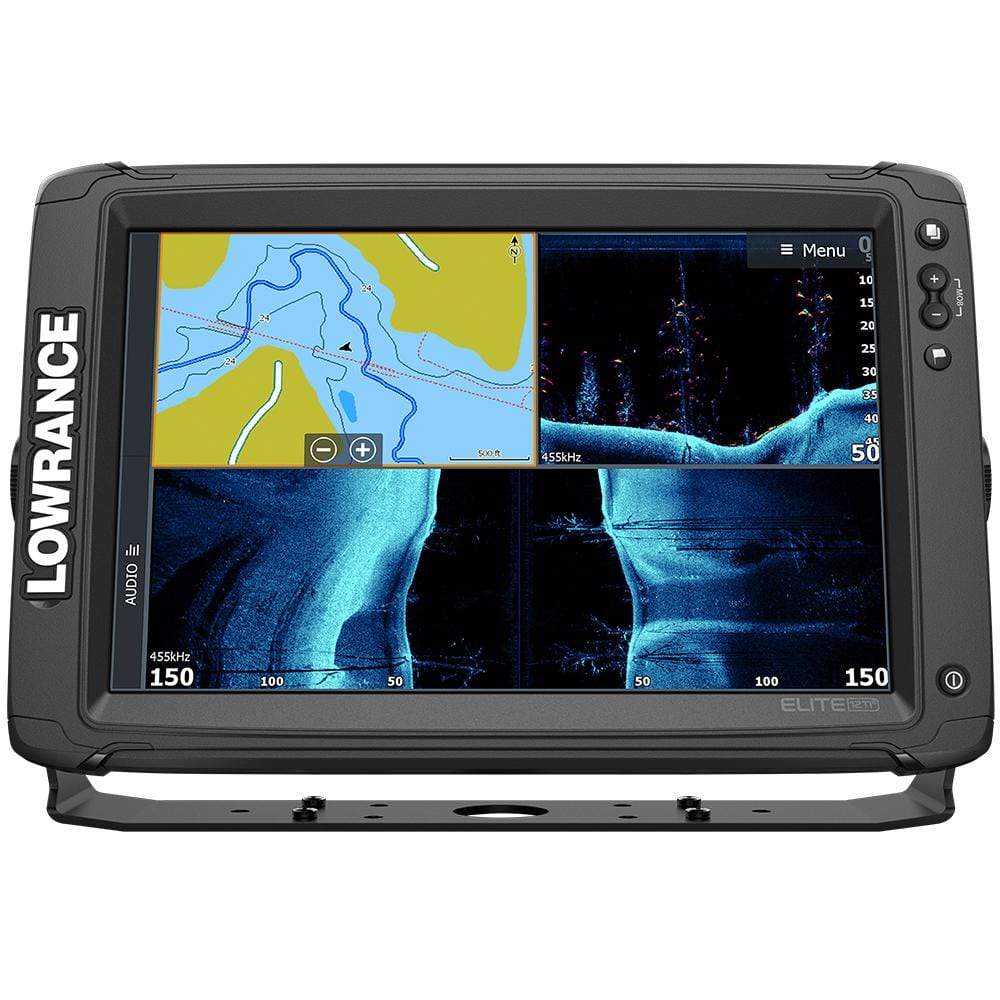

Lowrance 000-14662-001 Fishfinders
Elite-12 Ti² Inland with Active Imaging™ 2-in-1, Mid/High Skimmer & Y Cable
Elite-12 Ti² widescreen displays deliver powerful sonar and navigation technology, including Lowrance CHIRP sonar, support for Active Imaging™ and FishReveal™, plus built-in high-detail US Inland charts and Genesis Live onscreen mapping.
Professional Level Technology For All Anglers
Elite Ti² packs Active Imaging™, our highest quality sonar ever, FishReveal™, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation. Plus, with features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole® integration – Elite Ti² was designed to help you have an easier time finding fish.
Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ sonar delivers the most superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.
Wireless Networking
For the first time ever with the Elite series, you won’t need any cables to share sonar, mapping, waypoint and route data between Elite Ti² displays with the wireless networking capability.
Mapping In Real-Time
Update the maps of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. This level of detail makes it easy to find areas where fish like to hide, like drop-offs, points, and ditches. A truly customizable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading color palettes, and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.
Preloaded High-Detail Mapping
Fish new water like a pro with preloaded US Inland mapping that features 4,000 lakes with 1-foot contours. The built-in map helps you narrow your search for productive water by making it easier to locate fishing hot spots like ledges, drop offs and cover.
C-MAP® Easy Routing and Navionics® Dock-to-Dock Autorouting
Navigate faster and easier with automatic route planning. This menu-activated feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.
Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into Elite Ti². Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your Elite Ti² display.
Key Features:
- Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) ready
- Includes Active Imaging 2-in-1 Sonar (Side/Down) AND Includes Med/High skimmer Transducer (HST-WSBL)
- C-MAP® Genesis Live
- Smartphone Notifications
- Wireless Networking
- FishReveal™ Smart Target View
- C-MAP® Easy Routing, Navionics® Autorouting capability
- Preloaded C-MAP US Inland mapping with 1-foot contours on 4,000 lakes, plus a multitude of mapping options, including C-MAP, Navionics® and more)
- Easy-to-use, high-resolution SolarMAX™ touchscreen display
- Built-in CHIRP and Broadband Sounder®
- Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor
- Integrated wireless connectivity
- SonicHub®2 compatible
- NMEA 2000® engine support
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one–touch access to system controls
Enhanced display technology
High-resolution, 12-inch SolarMAX™ display that makes it easier to identify fish and structure with new, enhanced screen clarity and target separation.
Easy-to-use touchscreen
Touchscreen provides fast, fingertip access to all Elite-Ti2 features
FishReveal Smart Target View
Makes fish easier to see on DownScan Imaging™ by combining clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish.
Active Imaging
See structure and cover with a new level of high-resolution detail and unmatched sidescan range with new, Lowrance 3-in-1 Active Imaging featuring CHIRP sonar, SideScan and DownScan Imaging™ and Active Imaging 2-in-1 sonar with SideScan and DownScan.
Genesis Live
Update the mapping of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live.
Preloaded High-Detail Mapping
Fish new water like a pro with preloaded US Inland mapping that features 4,000 lakes with 1-foot contours. Narrow your search for productive water, easily locating fish-holding structure like ledges, drop offs and cover.
Wireless Networking
Share sonar, mapping, waypoint and route data between Elite Ti2 displays without connecting a cable with the new wireless networking capability of Elite Ti2.
TrackBack™
Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint.
Enhanced Color Palettes
Customize the look and feel of your display with the enhanced color and contrast of Elite Ti2 color palettes, which make it even easier to distinguish fish from structure, the bottom and each other.
Optional chart upgrades
Optional Americas chart upgrades include C-MAP Insight Pro, C-MAP Lake Insight HD, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.
Built-in wireless connectivity
Shop, purchase and download mapping upgrades directly to Elite Ti2 displays via the integrated GoFree™ Cloud interface.
Integration and System Control
Enjoy touchscreen control of Power-Pole® Shallow Water anchors, Motorguide® Xi5 trolling motors and the SonicHub®2 Marine Audio server. Get instant access to system controls from the Quick Access Control Bar.
microSD card slot
Overview
Display - 12"
Resolution - 1280 x 800
Backlighting - LED
Power Output - Max 500W RMS
Media Port - 1 microSD slot
Power Supply (Supply voltage) - 12 vDC (10-17 vDC min-max)
Current Draw [kW] - 12 W (0.9 A @ 13 vDC)
Dimensions
Product Width: 12.9”
Product Depth: 3.5”
Product Height: 8.8”
Sonar
Active Imaging 3-in-1
DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
CHIRP Sonar High Range/200 kHz: 1000 ft / 305 m
CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m
Available Sonar Frequencies
Low/Mid/High CHIRP
50/83/200 kHz Broadband
455/800 kHz SideScan/DownScan imaging
Depth Alarm - Yes
Shallow Alarm - Yes
Temperature Readings - Yes
Transducer Type - 9-pin Connection, with optional 9-pin to 7-pin adapter; Multiple Selections Lowrance® and Airmar®
GPS Navigation
Navigation: Routes - 100
Navigation: Waypoint Storage - 3000
Plot Trails - Up to 100 trails with up to 10,000 points per trail
GPS Antenna Type - 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
GPS Alarms - Yes
Custom Mapping - Optional Americas chart upgrades include C-MAP Insight PRO, C-MAP Lake Insight HD, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.
Networking
NMEA 0183 and NMEA 2000®
Technical/Environmental
Waterproof Standard/Rating: IPx6 and IPx7
Normalized SKU: 00014662001
UPC Code: 420024175490
