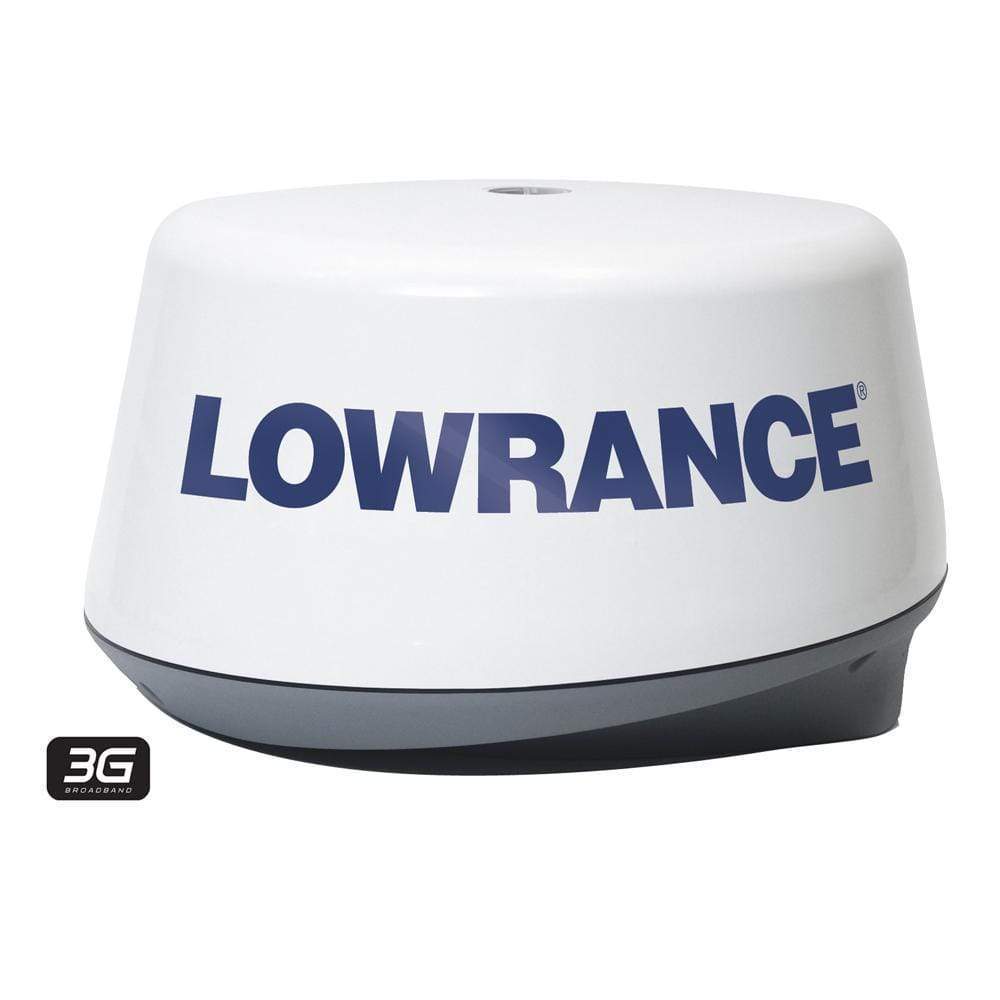

Lowrance 3G Broadband Radar Dome with 10m Cable #000-10418-001
Lowrance 000-10418-001 Radar DomeLowrance Broadband 3G Radar
Part #: 000-10418-001
Faster, better by far!
New Broadband 3G Radar. Unrivaled target separation and detection near and farther - with 30% more range. The safest choice for more boats.
- Crystal Clear Images
- Zero Radiation Hazard
- InstantOn in Seconds
- Low Power Draw
- Safe to Mount Anywhere
- Quick Installation
- Unmatched Short-Range Detection
- 10 MARPA Targets
30% More Range
Broadband 3G Radar clearly marks more targets farther away from your boat. So, you enjoy exclusive, close-in (6.5 ft/2 m) target detection of Broadband Radar technology, with the addition of exposing distant targets previously unseen before.
Unparalleled Short Range Target Discrimination - Where it Matters Most
Lowrance Broadband Radar provides amazing target resolution, even at an unprecedented 1/32 nm range. Docks, channel markers, moored vessels and other critical targets are displayed with pronounced clarity and separation, for added safety and confidence in close quarters. Broadband Radar technology eliminates the "main bang" of pulse radar - an obscured viewing "dead zone" immediately around the boat - which prevents display of any close-in hazards.
Virtually No Radiation for Safe, Flexible Installation on Any Boat
Lowrance Broadband Radar transmits at 1/10,000 the power of typical pulse radars, emitting 5-times less energy than an average cell phone! So, Broadband 3G Radar is safe to mount in locations never before possible. Plus, with the lowest DC power draw of any X-band marine radar, it's the first and only radar ideally suited for sailboats and other fishing or cruising boats with limited power.
Navigation in an Instant
No more waiting 2-3 minutes for a pulse radar magnetron to warm up. The 100% solid-state Broadband 3G Radar design provides InstantOn navigation in seconds. In darkness, fog or foul weather, you can view your surroundings, near and far, instantly. Ideal for sailboats and other boats wanting to save power, especially at anchor.
HDS® High Definition Systems
Antenna Beam Width Horizontal 5.2°+/-10% (-3dB width) °
Antenna Beam Width Vertical 25°+/-20% (-3dB width) °
Antenna Receiver Noise Figure 6 dB
Antenna Rotation Speed 24/36 rpm +/- 10% RPMs
Radar Warm Up Time 0 min
Radar Wind Resistance 51 m/sec (Max:100 Knots)
Transmitter Frequency X-band - 9.3 to 9.4GHz
Transmitter Power Output 165mW nominal
Data I/O Protocol High Speed Ethernet
TECHNICAL / ENVIRONMENTAL
Mounting Bolts: 4x30xM8 - 304 stainless steel
Waterproof Standard IPX6
Height 11 in \ 280 mm
Diameter 19.2 in \ 488 mm
Weight 16.31 lbs \ 7.4 kg
Humidity +95°F/+35°C, 95% RH
Power Supply 9 to 31.2vDC (12/24 Volt systems) Reverse polarity protection vDC
Power Consumption 18W (Typ.) @ 13.8vDC
Power Consumption Standby 2W(Typ.) @ 13.8vDC only 150ma
Compliance CE, FCC (ID: RAY3G4G), IC: 4697A-3G4G
Interconnection Cable 33ft/10m standard with RJ45 thin custom (Max 30m)
Interface Heading SimNet or NMEA 0183 with cable kit into display
Operating Temperature +13° to +131°F/-25° to +55°C
Normalized SKU: 00010418001
UPC Code: 9420024110980
Lowrance 000-10418-001 Literature DownloadOwners Manual
