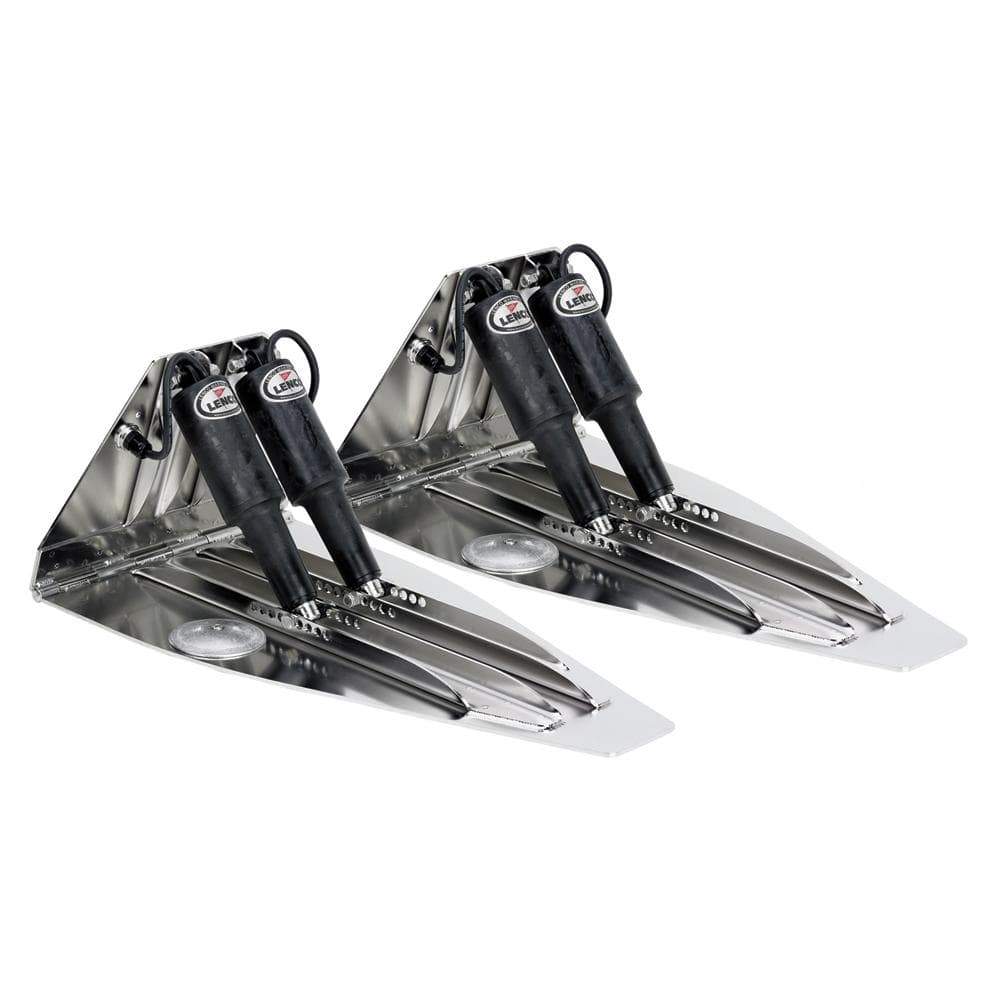

Lenco 21" x 14" High Performance Trim Tab Kit No Switch #15050-101

Lenco Marine 15050-101 Trim Tabs

21" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual Actuator

Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

Kit Contents:

• 2 each of stainless steel trim tab planes
• 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
• Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

The following to be supplied by customer:

• Boat mounting hardware supplied by customer
• Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
  required. To order the lengths of your choice see the Lenco Accessories Section.

Specifications:

• Suggested Boat Length: 24' to 42'
• Length of Tab: 21"
• Width of Tab: 14"
• Minimum Transom Height: 10.5"
• Blades: 7 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Switch Required: 15071-001
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Actuator Type = Electro-Mechanical
Boat Length - Max (Feet) = NONE
Construction = Stainless Steel

LENCO 21"X14" HIGH PERFORMANCE TRIM TAB KIT W/O SWITCH

Lenco Marine 15050-101 Literature Download
