Lenco Marine Qualifies for Free Shipping Lenco 12" x 9" Standard Performance Trim Tab Kit #15036-101

Lenco 12" x 9" Standard Performance Trim Tab Kit #15036-101

$780.79 $945.48 -18% OFF

Lenco 12" x 9" Standard Performance Trim Tab Kit #15036-101

$780.79 $945.48 -18% OFF

Lenco 12" x 9" Standard Performance Trim Tab Kit #15036-101

$780.79 $945.48 -18% OFF

SKU: LEN-15036-101

UPC: 874847000758

More about this item
  Download Literature

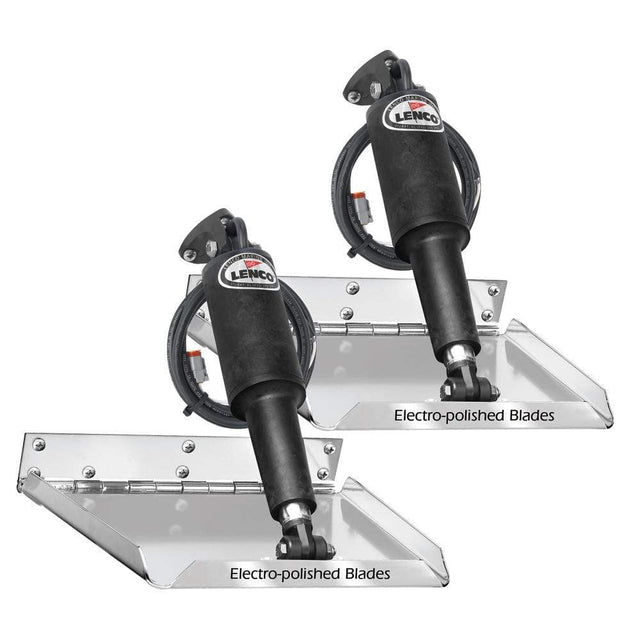

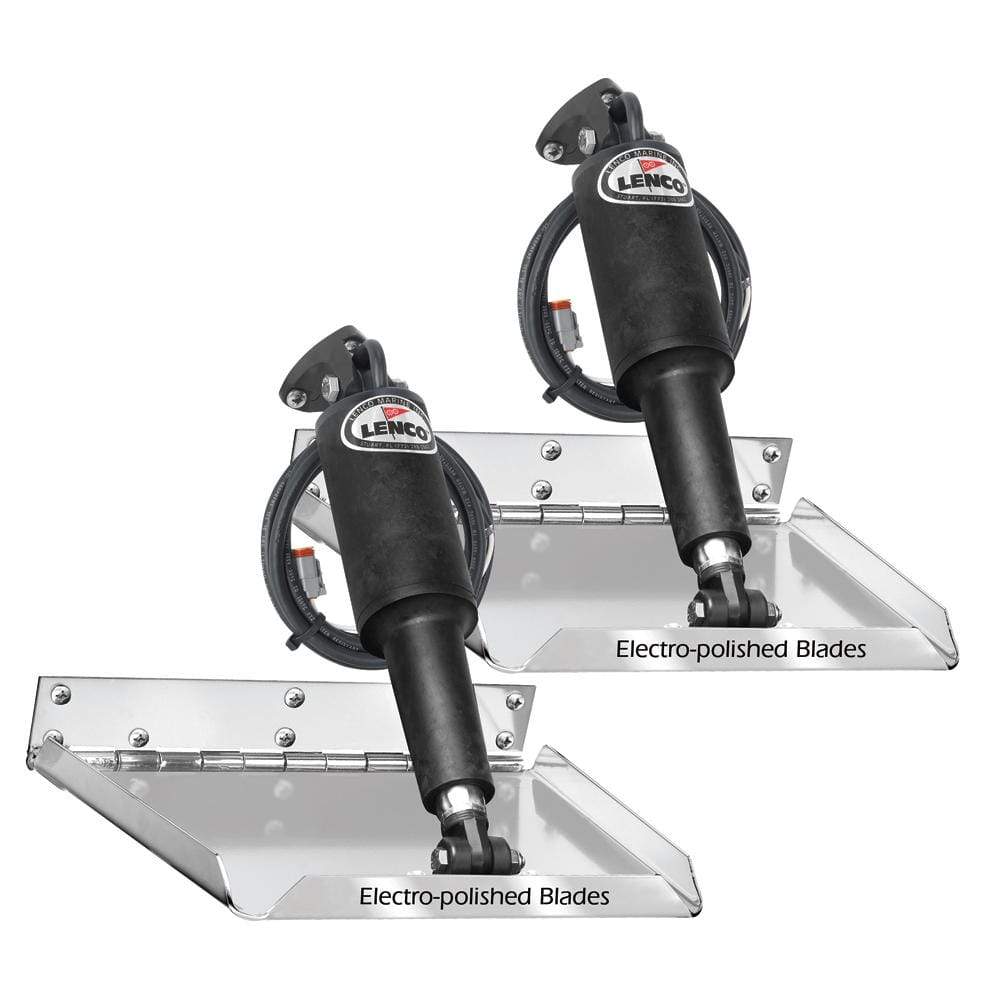

Lenco Marine 15036-101 Trim Tabs

12" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

  • 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
  • 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
  • 2 each of #30133-103 20' actuator extension wiring harnesses
  • 2 each of #15085-001 (#116) upper mounting bracket with gland seal
  • 2 each of #50014-001 (#119) lower mounting bracket
  • 1 each of the Lenco owner’s / installation manual
  • All necessary stainless steel mounting hardware

Specifications:

  • Suggested Boat Length: 16' to 26'
  • Length of Tab: 12"
  • Width of Tab: 9"
  • Minimum Transom Height: 11"
  • Blades: 12 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Specifications:

Actuator Type = NONE
Boat Length - Max (Feet) = NONE
Construction = NONE


LENCO 12"X9" RACING TAB KIT W/O SWITCH RT12X9NS


Normalized SKU: 15036101
UPC Code: 874847000758

Lenco Marine 15036-101 Literature Download

  Product Brochure
