Garmin Qualifies for Free Shipping Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Display #010-02794-00

Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Display #010-02794-00

$2,249.99 $2,364.40 -5% OFF

Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Display #010-02794-00

$2,249.99 $2,364.40 -5% OFF

Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Display #010-02794-00

$2,249.99 $2,364.40 -5% OFF
Brand: Garmin

SKU: GAR-010-02794-00

UPC: 753759302849

Category: Autopilots

More about this item
Download Literature
Watch Video

Garmin 010-02794-00 Autopilots

Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Autopilot Instrument

** Not designed to be used with Garmin Smartpump**

Every Captain Needs a Co-Pilot.  Designed for powerboats, this Reactor 40 hydraulic autopilot with GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

  • This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
  • With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more.
  • Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
  • You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity.
  • Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)
  • Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
  • Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
  • When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications - Reactor 40 :

  • Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
  • Display resolution (W x H) - 320 x 240 pixels
  • Display Type - QVGA color LCD display
  • NMEA output - NMEA 2000
  • Supply voltage - 10 to 20V
  • Operating temperature - -15° C to 70 C° (5° F to 158° F)

Technical Specifications - GHC™ 50:

  • Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
  • Display Type - 800 x 480 WVGA
  • Display Size - 5" (12.7 cm)
  • Touch Display - Yes
  • Knob Control - With GRID 10/20
  • Remote Control via ANT+® Connectivity - Yes
  • Wi-Fi Connectivity - Yes
  • NMEA 2000 Networking - Yes
  • Ethernet - Yes

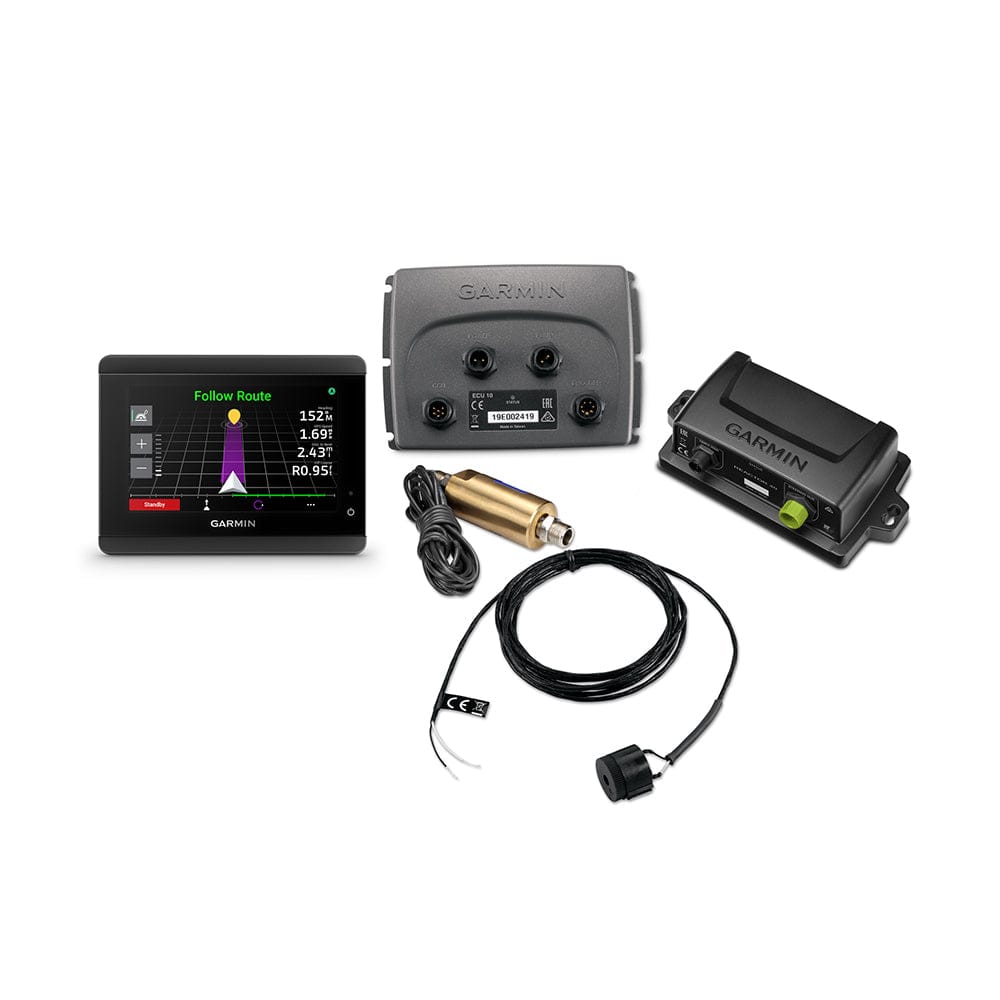

What's in the Box?

  • Reactor 40 CCU (Course Computer Unit)
  • GHC™ 50 marine autopilot touchscreen display
  • ECU (Electronic Control Unit)
  • ECU power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation

*Sold as an Individual


Normalized SKU: 0100279400
UPC Code: 753759302849

Garmin 010-02794-00 Literature Download

Owners Manual

Garmin 010-02794-00 Video
