Garmin Qualifies for Free Shipping Garmin GPSMAP1523XSV 15" Ultrawide Combo No Ducer Worldwide Basemap #010-03855-00

Garmin GPSMAP1523XSV 15" Ultrawide Combo No Ducer Worldwide Basemap #010-03855-00

$4,499.99 $5,039.99 -11% OFF

Garmin GPSMAP1523XSV 15" Ultrawide Combo No Ducer Worldwide Basemap #010-03855-00

$4,499.99 $5,039.99 -11% OFF

Garmin GPSMAP1523XSV 15" Ultrawide Combo No Ducer Worldwide Basemap #010-03855-00

$4,499.99 $5,039.99 -11% OFF
Brand: Garmin

SKU: GAR-010-03855-00

UPC: 753759345730

Category: Fishfinders

More about this item

Garmin 010-03855-00 Fishfinders

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap

Model: 010-03855-00
  • ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS
  • CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS
  • EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY
  • NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+™ CHARTS ON SELECT MODELS
  • SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES
  • MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE

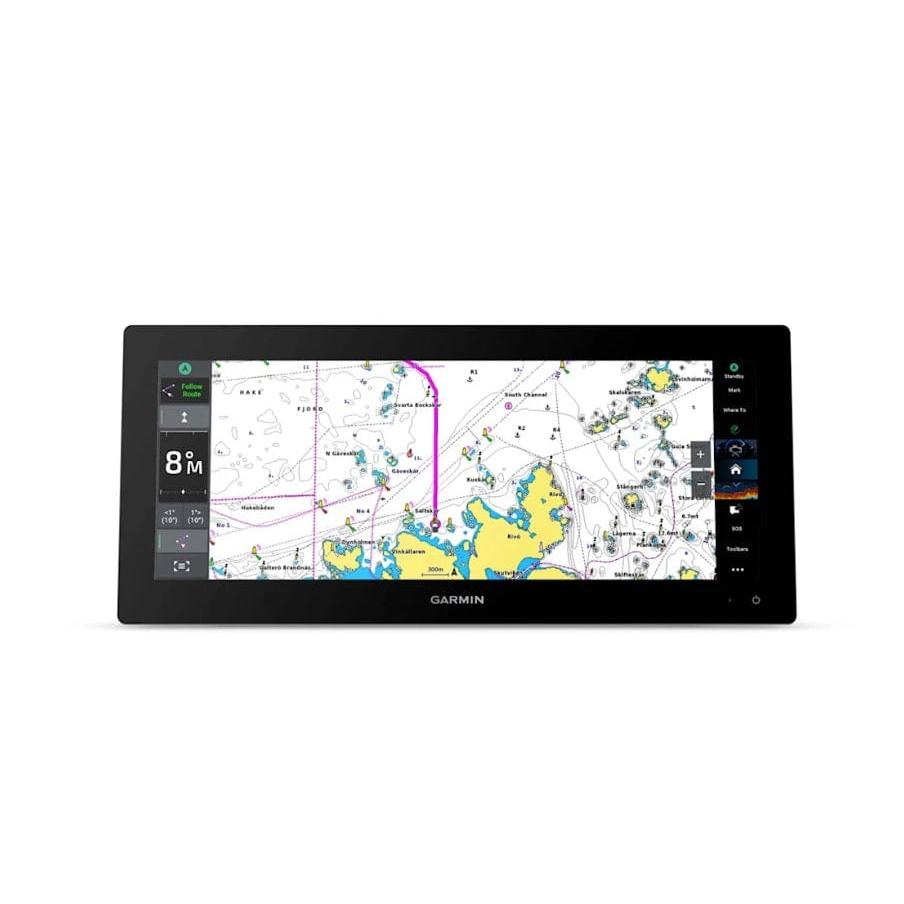

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

Specifications
General
Weight 7.2 lbs (3.26kg)
Water rating IPX7
Touchscreen Yes
Display Type Ultrawide display, IPS
Display Size 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)
Display resolution 1920 x 720 pixels
Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Polarized lens viewability Yes
Maps & Memory
Accepts Data Cards 2 microSD cards (back of device)
Compatible with Garmin SD card reader Yes (USB card reader)
Waypoints 5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
GPS Yes
GLONASS Yes
Galileo Yes
Has built-in receiver Yes
Receiver 10 Hz
NMEA 2000 Compatible Yes
NMEA 0183 Compatible Yes
Supports WAAS Yes
Supports multi-band, multi-constellation GPS Yes (with external GPS antenna)
Electrical Features
Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 2.44 A
Maximum current draw at 12 Vdc 4.21 A
Maximum power usage at 10 Vdc 56.93 W
Sonar Features
Displays sonar Yes
Power output 1 kW
Traditional sonar (dual frequency/beam) Yes
ClearVü Yes
SideVü Yes
Panoptix sonar Yes
LiveScope Yes
Connections
NMEA 2000 ports 1
NMEA 0183 Input (Rx) Ports 1
NMEA 0183 output (Tx) ports 1
Video input ports 1 (BNC composite)
J1939 ports 1
Garmin Marine Network Ports 2
12-pin transducer ports 1
USB ports Yes
BLUETOOTH pairing Yes (BLE)
Garmin Wi-Fi network (local connection) Yes
Input Voltage 10 to 32 Vdc
Dimensions 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)

What's in the Box:
  • GPSMAP 1523xsv ultrawide chartplotter
  • microSD card preinstalled
  • Power cable
  • Thin flush mount kit with gasket
  • Protective cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • 2 m backbone/drop cable and T-connector for NMEA 2000 Network
  • Documentation

  • Normalized SKU: 0100385500
    UPC Code: 753759345730
