Garmin Qualifies for Free Shipping Garmin GPSMAP1222XSV Touch 12" Combo Basemap No Ducer #010-01917-12

Garmin GPSMAP1222XSV Touch 12" Combo Basemap No Ducer #010-01917-12

$2,250.00 $2,610.00 -14% OFF

Garmin GPSMAP1222XSV Touch 12" Combo Basemap No Ducer #010-01917-12

$2,250.00 $2,610.00 -14% OFF

Garmin GPSMAP1222XSV Touch 12" Combo Basemap No Ducer #010-01917-12

$2,250.00 $2,610.00 -14% OFF
Brand: Garmin

SKU: GAR-010-01917-12

UPC: 753759168346

Category: Fishfinders

More about this item

Garmin 010-01917-12 Fishfinders

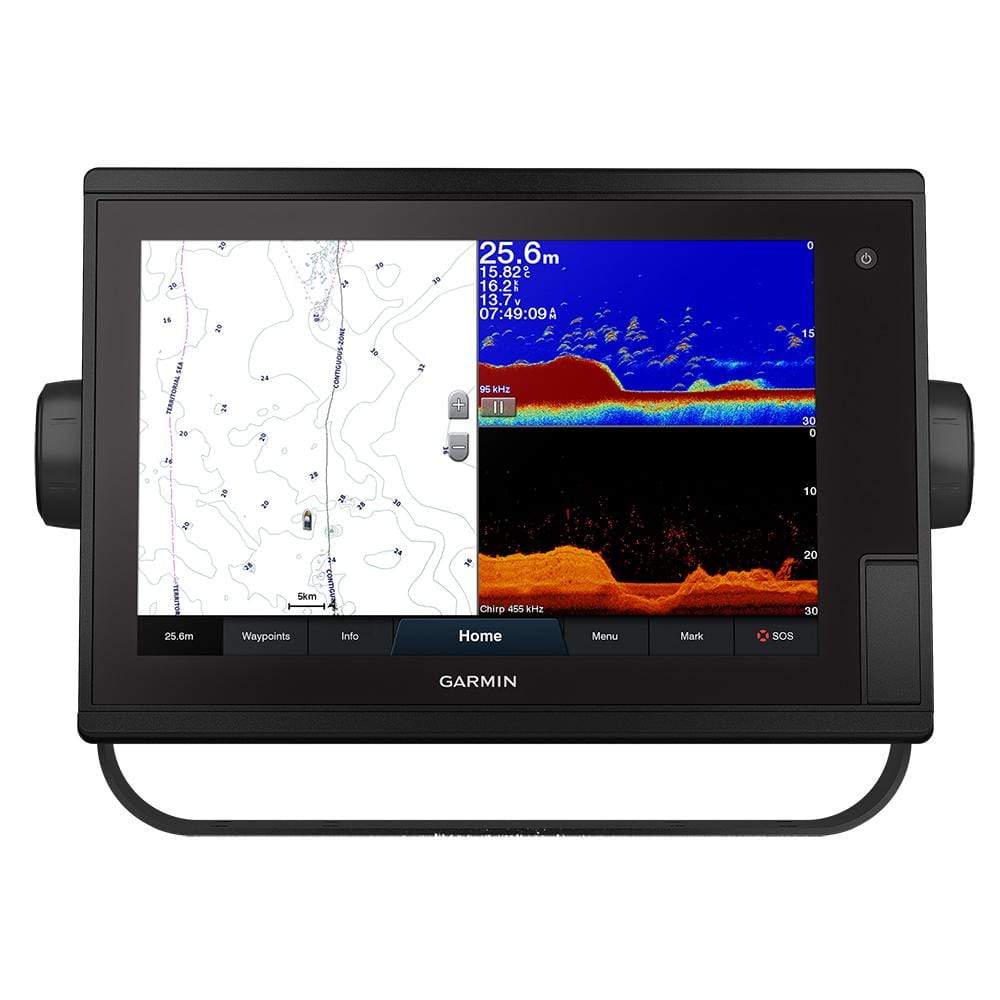

GPSMAP® 1222xsv Touch SideVü, ClearVü & Traditional CHIRP Sonar with Worldwide Basemap

12” Touchscreen Chartplotter/Sonar Combo Features:

  • 1 kW single-channel CHIRP sonar provides crystal-clear images with remarkable target separation and definition
  • ClearVü and SideVü scanning sonars deliver nearly photographic images of what is below, around and to the sides of your boat
  • Fully network capable to build your marine system; network sharing allows you to share data among all compatible units connected to the network
  • Compatible with optional BlueChart® g3 Vision® charts and LakeVü g3 Ultra maps
  • Supports Panoptix™ all-seeing sonar

GPSMAP 1222xsv Touch is the ideal choice for the coastal fisherman who wants to step up to a big, bright 12” touchscreen combo. It includes built-in 1 kW single-channel CHIRP plus ClearVü and SideVü scanning sonars, and it’s compatible with Panoptix all-seeing sonar. It features full networking capabilities to build your marine system with radar, autopilots sonar modules and sensors. It also supports FLIR cameras, GRID™ keypad, GXM™ 53 marine weather receiver, FUSION-Link™ audio system, VIRB® camera streaming and more. Network sharing allows you to share data among all compatible units connected to the network. Plus, it has built-in Wi-Fi® to support the ActiveCaptain™ app. The touchscreen combo comes preloaded with worldwide basemap.

Built-in Sonar Capabilities

Access some amazing sonar capabilities — all you add are transducers. GPSMAP 1222xsv Touch comes with built-in Garmin 1 kW CHIRP sonar and CHIRP ClearVü and SideVü scanning sonars. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Build Your Marine System

The touchscreen combo is fully networked using Garmin Marine Network, NMEA 2000®/NMEA 0183, J1939 and built in ANT® connectivity, so you can build your marine system with radar, autopilot, sonar modules, instruments, sensors, FLIR cameras, FUSION-Link, VIRB camera streaming and more. Network sharing allows you to share data among all compatible units connected to the network.

Upgrade to the Best Maps on the Water

Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.

Built-in Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps onscreen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a prerace guidance page. It shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

Heading and Position Refreshed 10 Times Per Second

The fast, responsive 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. Now, it’s quick and easy to drop up to 5,000 accurate waypoints and find your way back to them.

In The Box

  • GPSMAP 1242xsv Touch chartplotter
  • Power/data cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • 8-pin transducer to 12-pin sounder adapter cable
  • Protective cover
  • Trim piece snap covers
  • Documentation

Connections

  • Garmin Marine Network™ Ports: 2
  • Transducer Ports: 1 (12 Pin)
  • NMEA 2000® Port: 1
  • NMEA 0183 Input Ports: 1
  • NMEA 0183 Output Ports: 1
  • Video Input Ports:  1 BNC
  • Video Output Ports: 1 HDMI
  • Wireless Connectivity: Yes

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance.


Normalized SKU: 0100191712
UPC Code: 753759168346
