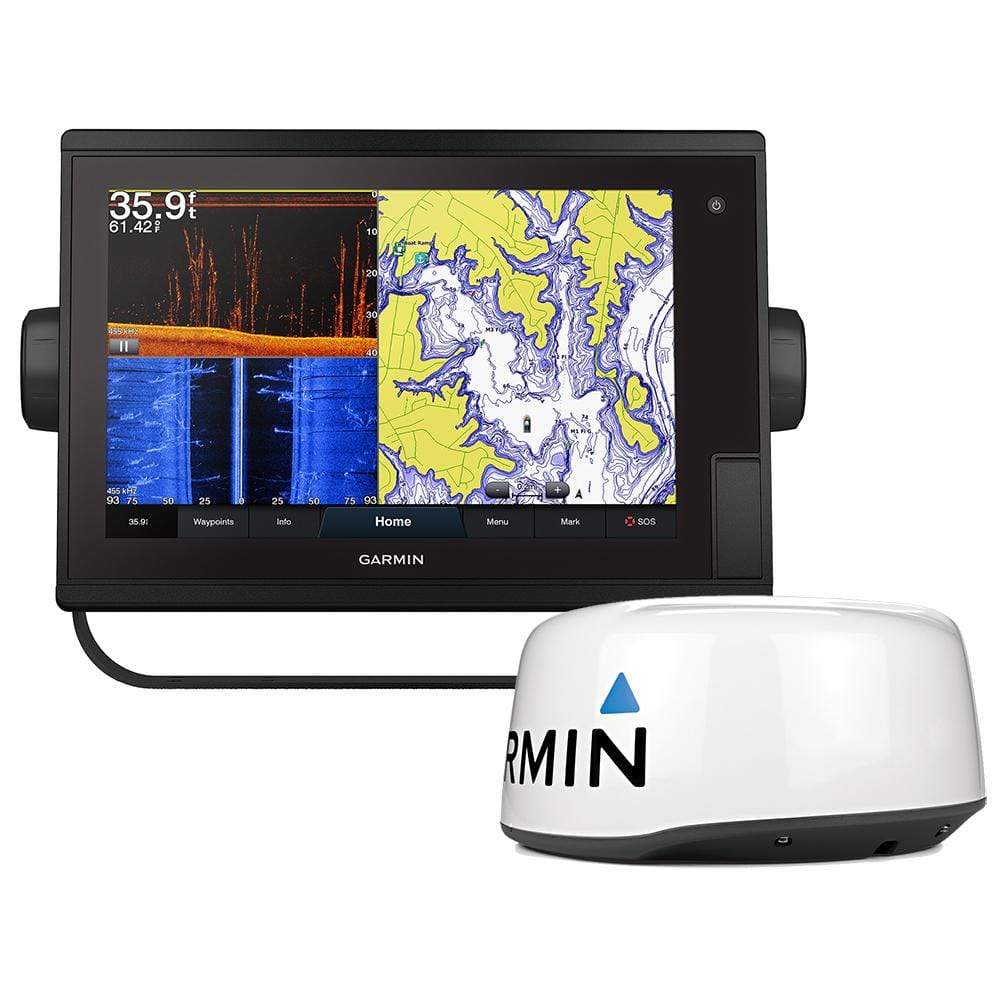

GPSMAP® 1242xsv Plus Touchscreen GPS/Fishfinder Combo with GMR 18HD+ Radar
GPSMAP® 1242xsv Plus Touchscreen GPS/Fishfinder Combo
Advanced navigation. Ultimate integration. This compact 12” GPSMAP® 1242xsv Touch Plus touchscreen combo seamlessly integrates into your Garmin marine system for full control of your connected helm. It supports 1 kW CHIRP traditional sonar, ClearVü and SideVü scanning sonars and Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar. Preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps give you the best of Garmin and Navionics® data and Auto Guidance* technology. Share maps, user data, radar and IP cameras among multiple units using the Garmin Marine Network. NMEA 2000® and NMEA 0183 networking connect you to autopilots, digital switching, weather, media, VHF, AIS and other sensors. Plus, this unit uses ANT® technology to pair with compatible Garmin devices, such as marine watches, transducers, wireless remote controls and more. It also includes built-in Garmin SailAssist™ features, such as laylines, race features, set and drift, wind data and more. Add the free all-in-one ActiveCaptain® app to manage your marine experience from nearly anywhere.
*Auto Guidance is for planning purposes only and does not replace safe navigation operations
Features:
Bright, sunlight-readable 12” intuitive touchscreen is easy to use in any environment
Built-in 1 kW CHIRP traditional and ClearVü scanning sonar (transducers sold separately)
Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
J1939 engine connectivity for easy integration with engines, such as Yamaha, and our exclusive OneHelm™ feature for connecting to third-party devices, such as EmpirBus™ digital switching
Easily build your marine system — from sonar and autopilots to cameras and multimedia — using NMEA 2000® and NMEA 0183 network connectivity and the Garmin Marine Network
Preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps with integrated Navionics® data and Auto Guidance* technology
Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more
Add free all-in-one ActiveCaptain® app to manage your marine experience from nearly anywhere
Integrated ANT® technology support for use with quatix® marine watches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls
*Auto Guidance is for planning purposes only and does not replace safe navigation operations
GMR 18HD+ Radar
The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; however, for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true color resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it’s easy to install and start using.
Features:
Streamlined 18-inch 4kW dome radar
Deliver 4kW of transmit power and clear echo definition at all ranges
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
Dynamic Sea Filter automatically adjusts gain to changing sea conditions
Overlays the radar image on the chartplotter map page (autopilot or heading sensor is recommended for best results)
MARPA target tracking when combined with a multifunction display and heading sensor (sold separately)
Beam angles: 5.0° horizontal, 25° vertical
Max range: 36 nautical miles
Minimum range: 20 meters
Rotation speed: 24 revolutions/minute
No complex user settings; easy to install and start using
In The Box
Chartplotter
GPSMAP 1242xs Plus chartplotter
Power cable
8-pin transducer to 12-pin sonar adapter cable
Bail mount with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
Radar
GMR 18 HD+ radome
Mounting hardware kit
Power cable (15 m)
Network cable (15 m)
Installation instructions
Mounting template
Connections
Garmin Marine Network™ Ports: 2
Transducer Ports: 1 (12 Pin)
NMEA 2000® Port: 1
NMEA 0183 Input Ports: 1
NMEA 0183 Output Ports: 1
J1939 Port: 1
Video Input Ports: 1 BNC
Video Output Ports: 1 HDMI
Wireless Connectivity: Yes
