Garmin 010-01740-03/18XHD Fishfinders

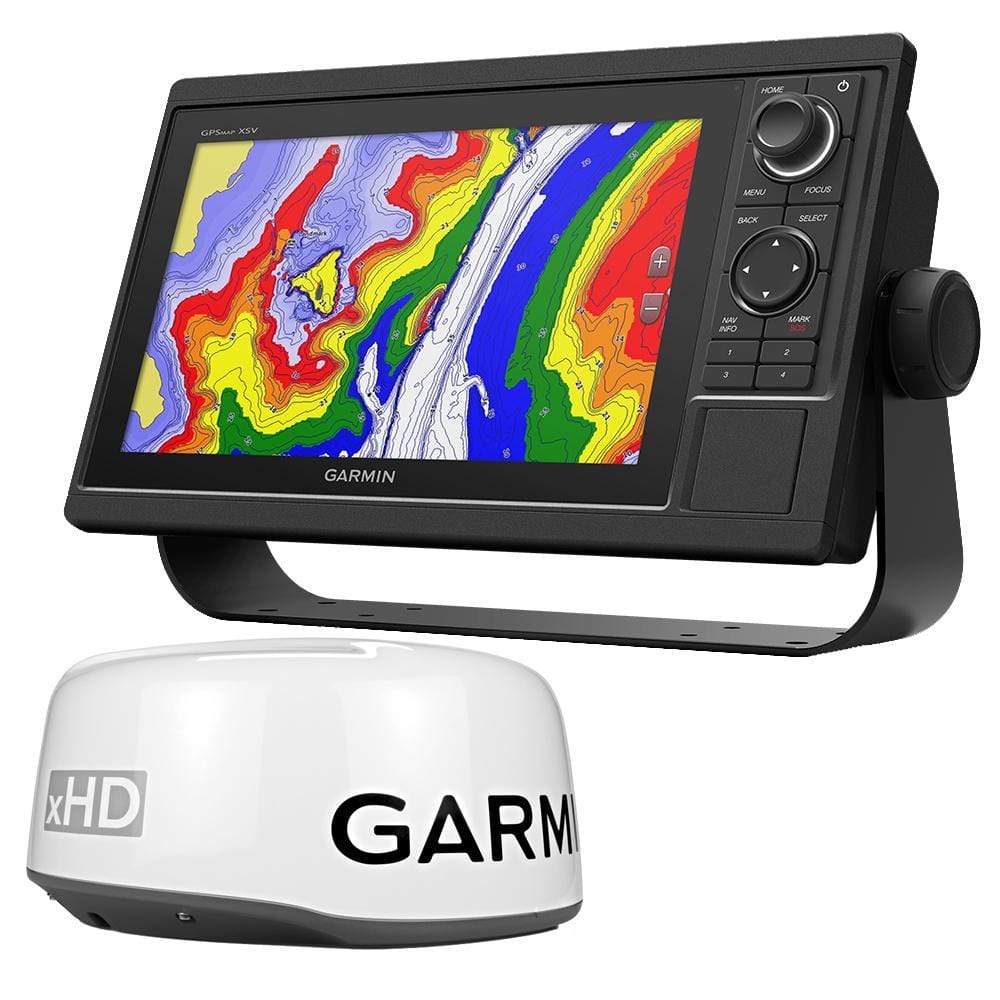

GPSMAP® 1042xsv Keyed Networking Combo - U.S., Canada, Bahamas with GMR 18 xHD Radar

10-inch Chartplotter/Sonar Combo Is All-in-1 Solution

• 10-inch color display with keypad interface and multifunction control knob
• Includes transducer with high wide CHIRP, 250 W and CHIRP ClearVü/SideVü, 455/800, 350 W (also available without transducer)
• Preloaded U.S. LakeVü HD maps and BlueChart® g2 charts
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately)

Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1042xsv keyed combo. Includes transducer for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü (also available without transducer). It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS and other sensors.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watches, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB action camera from the chartplotter.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Preloaded with Exceptional Garmin Cartography

You get both LakeVü HD inland waters mapping and BlueChart g2 coastal charts covering the coastal U.S. (East Coast, West Coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes).

LakeVü HD provides highly detailed freshwater maps that include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with 1-foot contours shoreline to shoreline. Upgrade to LakeVü HD Ultra with Max Def Lakes.

BlueChart g2 provides basic coastal charts, tidal and current stations, depth contours, IALA nav symbols and fishing charts.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD Ultra or BlueChart g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹and other great features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

In The Box

• GPSMAP 1042xsv chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Connections

• Garmin Marine Network™ Ports: 2
• Transducer Ports: 1 (12 Pin)
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports:  1 BNC
• Video Output Ports: No
• Wireless Connectivity: Yes

GMR 18 xHD

• 4 kW high-definition 18” dome radar
• Pairs ease of use with advanced open-array features
• 48 or 24 RPM rotation speeds for fast screen refreshes, auto adjusts as needed based on range
• 48 Mile max range setting
• No complex user settings, easy to install and start using

Our next-generation, 4 kW high-definition GMR 18 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.

The GMR 18 xHD delivers higher resolution than our previous generation 18” dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit color (select chartplotters); range of 48 nm. Optional “No Transmit Zone” can protect areas behind the radar from being radiated while providing full forward-looking radar capability. This makes installation more flexible by providing more suitable installation options on your boat.

In The Box:

• GMR 18 xHD
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template
• Grommet for marine cable
