Garmin Truck Freight - Not Qualified for Free Shipping Garmin Force Trolling Motor 57" Shaft B--Stock Beat Up Box #010-02025-00 B Stock

Garmin Force Trolling Motor 57" Shaft B--Stock Beat Up Box #010-02025-00 B Stock

$3,161.25 $3,565.89 -12% OFF

Garmin Force Trolling Motor 57" Shaft B--Stock Beat Up Box #010-02025-00 B Stock

$3,161.25 $3,565.89 -12% OFF

Garmin Force Trolling Motor 57" Shaft B--Stock Beat Up Box #010-02025-00 B Stock

$3,161.25 $3,565.89 -12% OFF
Brand: Garmin

SKU: GAR-010-02025-00 B Stock

Category: Trolling Motors

More about this item

Garmin 010-02025-00 B Stock Trolling Motors

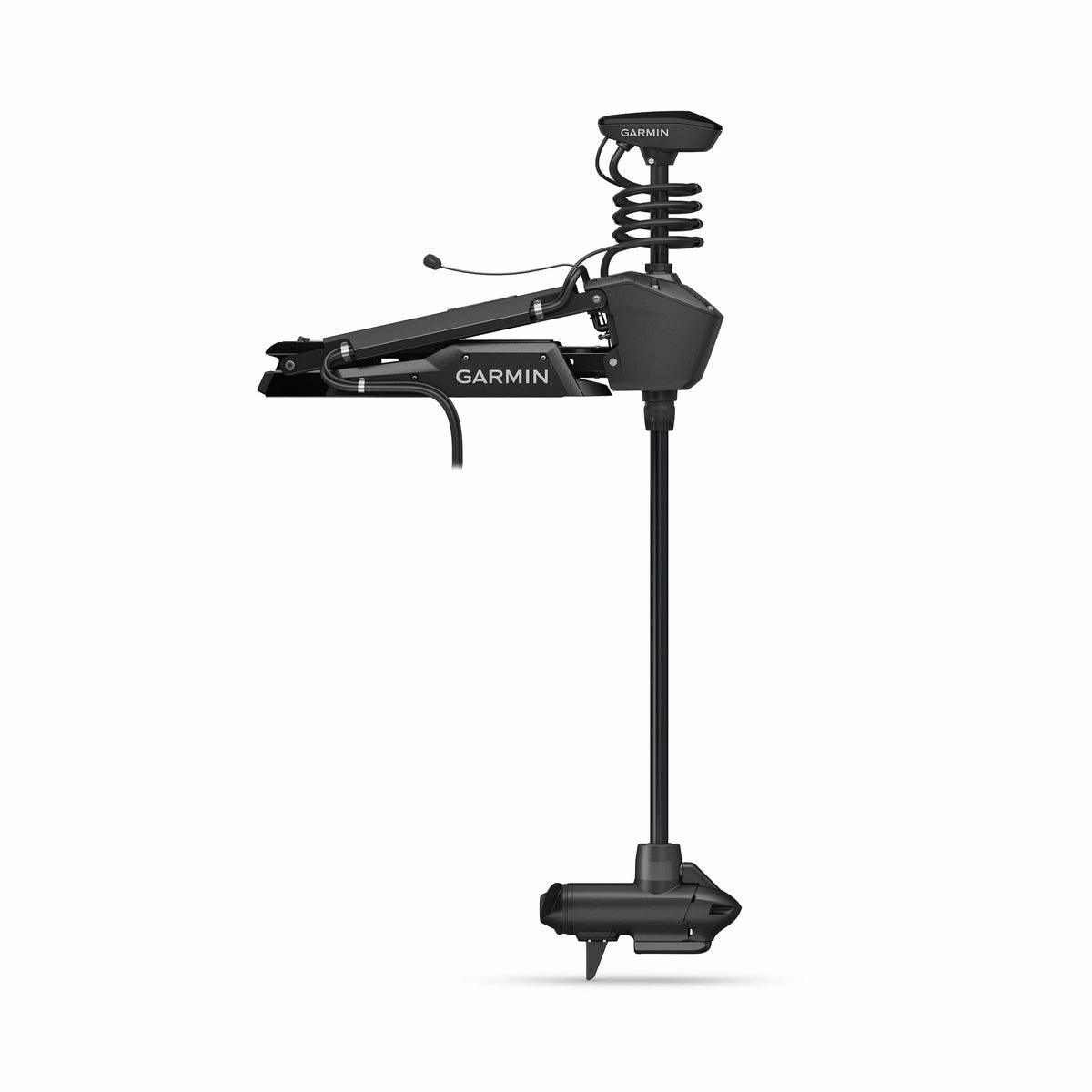

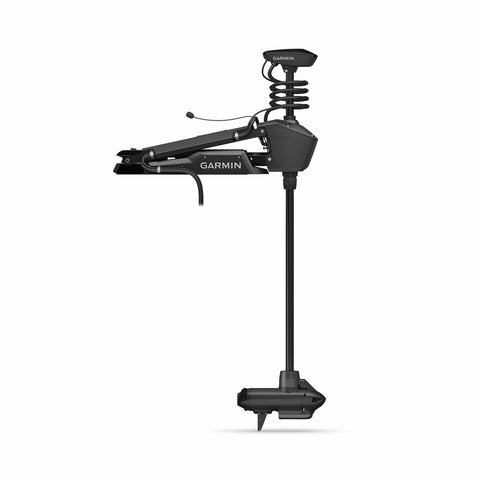

Garmin Force Trolling Motor 57" Shaft - B Stock Beat Up Box

Model: 010-02025-00B
  • With more power1 than its competition, it’s the most powerful trolling motor to get you on fish faster and counter the winds and current to stay on them
  • Extremely quiet high-efficiency brushless motor operates at 36 V or 24 V to keep you on the water longer
  • Simple chartplotter integration via wireless connection makes it easy to create routes to waypoints and to follow tracks
  • Precise anchor lock holds your boat in the same location while you fish via integrated heading sensor and GPS
  • Integrated high-wide CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars with nearly imperceitble sonar noise from interference
  • Wireless foot pedal provides instant control and responsiveness; it feels and steers like a cable-steered pedal
  • Handheld remote control features full-color, sunlight-readable transflective display and gesture steering for point-and-go navigation — and it floats
  • Robust design is built for long-lasting quality and reliability; limited lifetime warranty on the shaft
  • Quiet steering and overall operation

Fish with force using the 57" Force™ trolling motor. It’s the most powerful, most efficient trolling motor available yet still extremely quiet. Wireless chartplotter connectivity provides navigation, autopilot and anchor lock capabilities. Use the precise anchor lock to hold your boat in the same location while you fish. The Force motor also includes high-wide CHIRP traditional sonar and built-in Ultra High-Definition sonar that provides exceptionally clear images with nearly imperceptible sonar noise interference from the motor. The highly efficient brushless motor operates at either 36 V or 24 V to use less energy, so you can fish longer. It includes a wireless foot pedal that provides instant control and responsiveness — yet feels and steers like a cable-steered pedal. The handheld remote control allows you to navigate with simple point-and-go gesture steering.

Specifications
Trolling Motor Specs
Shaft length 57"
For use in Fresh and Saltwater
Mounting location Bow
Mount style Scissor-style mount
Max thrust 100 lbs per ISO 13342 using high-efficiency propeller at 36 Vdc; 80 lbs per ISO 13342 using high-efficiency propeller at 24 Vdc
Voltage 24 Vdc or 36 Vdc
Electric steering Yes
Lift-assist Dual gas springs
Built-in heading sensor Yes
Built-In GPS Yes, high-sensitivity GPS
Warranty 3-year limited lifetime on shaft
Water rating (components above water) IPX7
Wireless remote included Yes
Foot pedal included Yes
Battery indicator Yes
Variable speed control Yes
Sonar Specs
Frequencies supported
CHIRP sonar High wide CHIRP 150-240 kHz
ClearVü Ultra-high definition 800 kHz
SideVü Ultra-high definition 1,200 kHz and 455 kHz
Partial frequencies supported
CHIRP sonar High wide CHIRP 150-240 kHz
ClearVü 800 kHz
SideVü 455 kHz
Transmit power 350 W
Maximum depth
CHIRP sonar 800’
ClearVü 200’
SideVü (1,200 kHz) 125’ to each side; 250’ total at a max depth of 30'
SideVü (455 kHz) 500’ to each side; 1,000’ total
Depth/speed/temperature Depth and temperature
Number of pins 12-pin (orange connector)
Autopilot Features Yes
Route following Yes
Anchor lock Yes
Heading hold Yes
Cruise control Yes
Gesture features Yes, manual+, heading hold+, jog+
FOOT PEDAL SPECIFICATIONS
Dimensions 12" L x 9" W x 4 1/2" H
Wireless communication Yes
Power installation 12 V wired or battery powered (2 AA)
AA battery life 1 full season
Waterproof rating IPX7
Adjustable pedal resistance Yes
REMOTE CONTROL SPECIFICATIONS
Display size 1.2" (30.4 mm) diameter
Display resolution 240 x 240 pixels
Display type Color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter userprogrammable keys Yes
Autopilot feature control Yes
Water rating IPX7
Battery life Typical use with backlight at low — 43 weeks
Floats Yes
PACKAGING SPECIFICATIONS
Gift box dimensions (W x H x D): 72.4" x 12.2" x 20.5" (184.0 x 31.0 x 52.0 cm)
Gift box weight: 95.0 lbs (43.1 kg)
Master carton quantity: 1

What's in the Box:
  • Trolling motor - B Stock, Beat up Box
  • Foot pedal
  • Remote control
  • High-efficiency prop
  • Assembly and mounting hardware
  • Documentation

  • Normalized SKU: 0100202500BStock
