Garmin Force Pro Trolling Motor 57" with GT56UHD-TR #010-03011-10

Garmin 010-03011-10 Trolling Motors

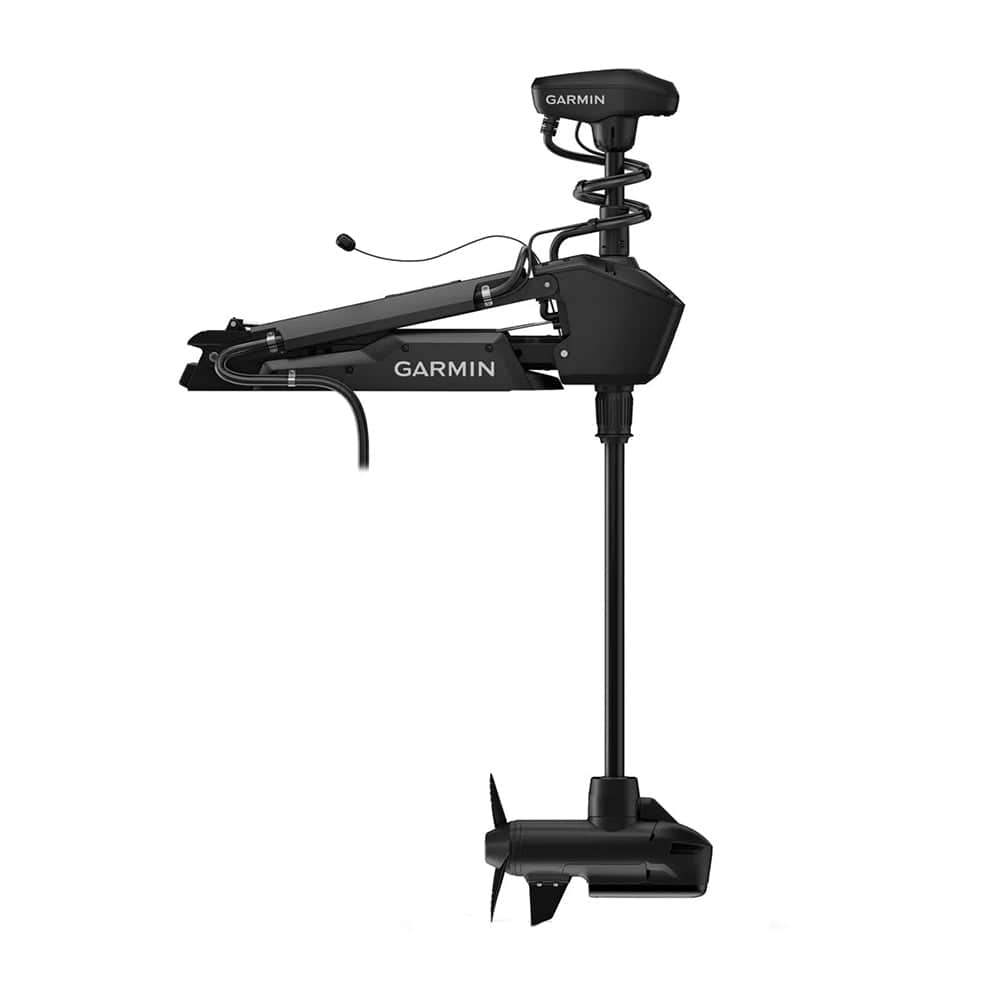

Force® Pro 57" Trolling Motor with Built-In GT56UHD-TR Transducer

FISH WITH FORCE

Move fast, move quiet with the Force Pro trolling motor — engineered with a powerful motor and our most precise positioning technology¹.

• Improved anchor lock via superior accuracy multi-band GPS
• Legendary power and performance; 100 lbs of thrust¹
• Wireless controls integrate with Garmin chartplotters
• Dual gas springs and pull cable for easy deployment and stowing
• Brilliant high-definition scanning sonar

High Powered

The brushless motor on Force Pro provides legendary power, performance, and premium efficiency, with 100 lbs of thrust¹.

Stay Put

The anchor lock feature provides our most precise boat positioning technology with new multi-band GPS, plus reverse prop spin and calm-water cable unwrap help reduce motor activity.

Built-In Sonar

This trolling motor includes the improved all-in-one GT56UHD-TR transducer, so you can see everything around your boat with brilliant high-definition scanning sonar and extremely low levels of sonar noise.

Wireless Control

Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control.

Lighted Indicator

Fish in low light, and always know what direction you’re headed with the lighted indicator on the trolling motor shaft cap.

Perfect for Bass Boats

Deploy and stow the motor easily, thanks to dual gas springs and a durable pull cable. The 50-inch and 57-inch shaft lengths accommodate different boat sizes and deck configurations. The included weedless and high-efficiency propellers can be easily swapped as needed.

Floating Remote

Use the included remote to help you navigate from anywhere in the boat with our simple point-and-go technology.

Smartwatch Integration

Connect your compatible Garmin smartwatch to control steering, anchor lock, and more from your wrist.

Wireless Integration

Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.

Whisper Quiet

Don’t spook the fish; the motor is extremely quiet above and below the water.

Designed to Endure

The Force Pro trolling motor is built with advanced corrosion and saltwater protection for harsh marine environments.

In The Box:

• Force® Pro Trolling Motor
• High-efficiency propeller
• Weedless propeller
• Foot pedal
• Remote
• Stabilizer
• Assembly and mounting hardware
• Documentation

General Specifications:

• Color: Black
• For use in: freshwater, brackish water, and saltwater
• Mount Style: scissor-style mount
• Max thrust: 100 lbs per ISO 13342 using a high-efficiency propeller at 36 V,  80 lbs per ISO 13342 using a high-efficiency propeller at 24 V
• Voltage: 24 V or 36 V
• Electric steering: Yes
• Lift-assist: dual gas springs
• Built-in heading sensor: Yes
• Warranty: 3-year, limited lifetime on shaft
• Water rating: IPX7
• Mounting location: Bow
• Wireless remote: Yes (Included)
• Foot pedal compatible: Yes (included)
• Battery Indicator: Yes
• Variable speed control: Yes (20 steps)
• Lighted direction indicator: Yes
• Deck stabilizer: Yes (included)
• Quatix remote control supported: Yes
• Manual reverse control: yes

Sonar Features:

• Frequencies Supported: Traditional: High-wide CHIRP (150-240 kHz); ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
• Transmit Power: Traditional: 350 W; ClearVü/SideVü: 500 W
• Maximum Depth: CHIRP sonar: 800' freshwater; ClearVü: 400'; SideVü: 500'
• Depth/Speed/Temperature: depth and temperature
• Number of Pins: 12-pin (orange connector)

Autopilot Features:

• Route Following: Yes
• Anchor Lock: Yes
• Smart Anchor Lock Features: Yes
• Anchor Lock Jog: Yes
• Heading Hold: Yes
• Cruise Control: Yes
• Gesture Features: Yes(manual+, heading hold+, jog+)

Foot Pedal Features:

• Dimensions: 12" L x 9" W x 4 1/2" H
• Wireless Communication: Yes
• Power Installation: 12 V/24 V/36 V wired or battery-powered (2 AA)
• AA Battery Life: 1 full season
• Water Rating: IPX7
• Adjustable Pedal Resistance: Yes

Remote Features:

• Display Size: 1.2" (30.2 mm) diameter
• Display Resolution: 240 x 240 pixels
• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)
• Chartplotter User-Programmable Keys: Yes
• Autopilot Feature Control: Yes
• Water Rating: IPX7
• Battery Life: typical use with backlight at low, 43 weeks
• Floats: Yes

¹In compliance with ISO standard 13342
