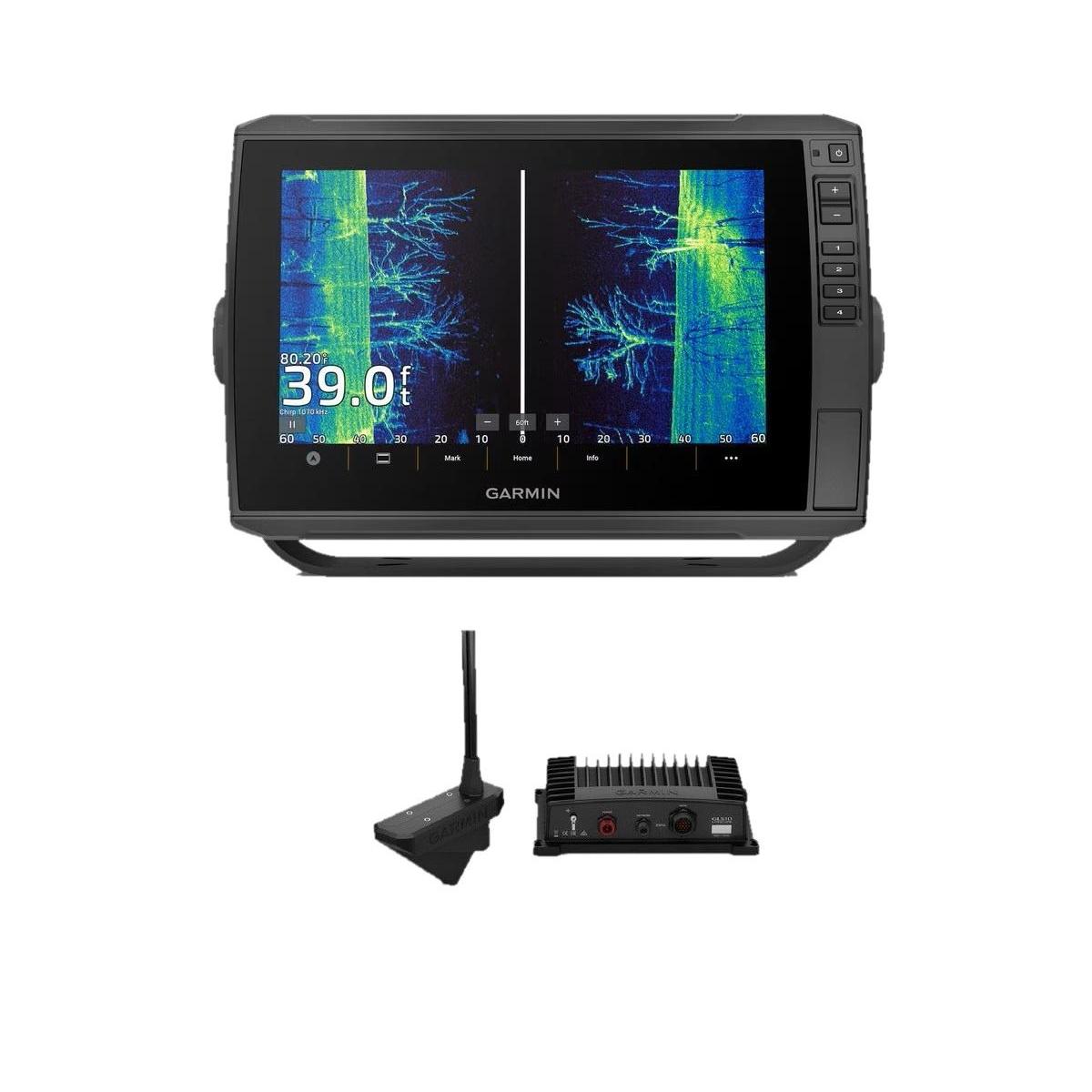

Garmin ECHOMAP Ultra 2 106sv US and Coastal Canada GN+ with GT56UHD-TM Transducer & LVS32 LiveScope - Remanufactured
Model: 010-N2880-01LS
SUPPORTS LIVESCOPE™ SONAR1 AND MORE
WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2
CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.
LiveScope™ System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
Specifications
General
DIMENSION
11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
WEIGHT
4.0 lbs (1.8 kg)
WATERPROOF
IPX7
TOUCHSCREEN
Yes
DISPLAY TYPE
WXGA, IPS
DISPLAY SIZE
8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
DISPLAY RESOLUTION
1280 x 800 pixels
MOUNTING OPTIONS
Bail or flush
INPUT
Touchscreen with Keyed Assist
Maps & Memory
ACCEPTS DATA CARDS
2 microSD cards
WAYPOINTS
5000
TRACK POINTS
50,000
TRACKS
50 saved tracks
NAVIGATION ROUTES
100
Sensors
GPS
Yes
GLONASS
Yes
GALILEO
Yes
BEIDOU
Yes
HAS BUILT-IN RECEIVER
Yes
RECEIVER
10 Hz
NMEA 2000 COMPATIBLE
Yes
NMEA 0183 COMPATIBLE
Yes
SUPPORTS WAAS
Yes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes
Built-in Maps
BUILT-IN AUTO GUIDANCE+
Yes
GARMIN NAVIONICS+ INLAND & COASTAL
Garmin Navionics+™ U.S. Inland & Coastal Mapping
TIDE TABLES
yes
Optional Map Support
BLUECHART G3
Yes
BLUECHART G3 VISION
Yes
LAKEVü G3
Yes
LAKEVü G3 ULTRA
Yes
GARMIN NAVIONICS+™
Yes
GARMIN NAVIONICS VISION+™
Yes
TOPO 100K
Yes
STANDARD MAPPING
Yes
GARMIN QUICKDRAW CONTOURS
Yes
Electrical Features
POWER INPUT
9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC
2.3 A
MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A
MAXIMUM POWER USAGE AT 10 VDC
34 W
Connections
NMEA 2000® PORTS
1
GARMIN MARINE NETWORK PORTS
2 (large connector)
12-PIN TRANSDUCER PORTS
12-pin scanning sonar
ANT+ (CONNECTIVITY)
Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes
Sonar Features
DISPLAYS SONAR
Yes
POWER OUTPUT
600 watt
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVü
built-in 260/455/800/1000/1200 kHz
SIDEVü
built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
Yes
LIVESCOPE
Yes
What's in the Box:
ECHOMAP Ultra 106sv; Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping - Remanufactured
Power/data cable
Bail mount with quick release cradle
Protective sun cover
GT56UHD-TM transducer
Hardware
Documentation
LiveScope GLS 10 sonar black box - Remanufactured
Panoptix LVS32 transducer - Remanufactured
Trolling motor barrel mount
Trolling motor shaft mount
Transom mount
Power cable
2 meter Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation
