Garmin Qualifies for Free Shipping Garmin ECHOMAP UHD 74sv Reman Combo US BlueChart G3 & GT56 Ducer #010-N2520-01

Garmin ECHOMAP UHD 74sv Reman Combo US BlueChart G3 & GT56 Ducer #010-N2520-01

$585.20 $730.40 -20% OFF

Garmin ECHOMAP UHD 74sv Reman Combo US BlueChart G3 & GT56 Ducer #010-N2520-01

$585.20 $730.40 -20% OFF

Garmin ECHOMAP UHD 74sv Reman Combo US BlueChart G3 & GT56 Ducer #010-N2520-01

$585.20 $730.40 -20% OFF
Brand: Garmin

SKU: GAR-010-N2520-01

Category: Fishfinders

More about this item

Garmin 010-N2520-01 Fishfinders

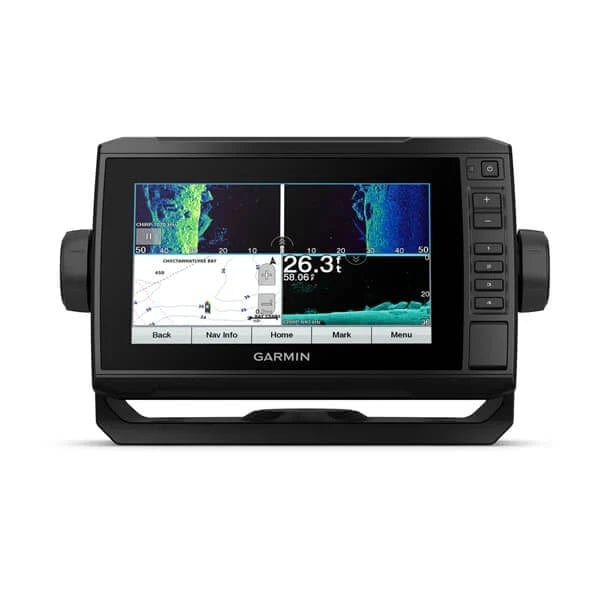

Garmin ECHOMAP™ UHD 74sv With GT56UHD-TM Transducer with preloaded BlueChart® g3 - Remanufactured

Model: 010-N2520-01
  • See below and around your boat in incredible detail with the transducer bundle.
  • Navigate any waters with preloaded BlueChart® g3 coastal charts.
  • Share data and maps with select ECHOMAP devices on your network.
  • Manage your marine experience from nearly anywhere.
  • Control the most powerful trolling motor available.
  • Create your own maps on the fly and tailor them to fit your needs.

The sunlight-readable 7" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Transducer bundle with GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts featuring integrated Navionics® data. Charts cover the coastal U.S., including the East and West coasts, Gulf of Mexico and the U.S. and Canadian sides of the Great Lakes.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7" and 9" models can share information — such as sonar, user data and charts — with them.

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.

Specifications
General
PHYSICAL DIMENSIONS 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
DISPLAY SIZE 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT 1.7 lbs.(0.77kg)
WATER RATING IPX7
POWER CONSUMPTION 15W
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail or flush
RECEIVER 5 Hz
GARMIN MARINE NETWORK™ PORTS 1 Panoptix™ port
TRANSMIT POWER 500 W (RMS) / 4,000 W (peak to peak)
Maps & Memory
PRELOADED MAPS BlueChart® g3 (coastal maps)
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
Outdoor Recreation
TIDE TABLES Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes
GCV™ BLACK BOX SONAR SUPPORT Yes
ACTIVECAPTAIN COMPATIBLE Yes
ACTIVECAPTAIN COMPATIBLE Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes
CHIRP SONAR TECHNOLOGY Yes (Built-in)
CLEARVü Yes with CHIRP (built-in)
SIDEVü Yes with CHIRP (built-in)
MAXIMUM DEPTH 2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes
WATER TEMPERATURE LOG AND GRAPH Yes
SONAR RECORDING Yes
SONAR HISTORY REWIND Yes
Connections
NMEA 2000® COMPATIBLE Yes
TRANSDUCER PIN NUMBERS 12
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS None
VIDEO OUTPUT PORTS None
WIRELESS CONNECTIVITY Yes

What's in the Box:
  • ECHOMAP UHD 74sv with BlueChart g3 for U.S. - Remanufactured
  • GT56-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation

  • Normalized SKU: 010N252001
