Brand: Garmin

SKU: GAR-010-N1889-05

Category: Fishfinders

More about this item

Garmin 010-N1889-05 Fishfinders

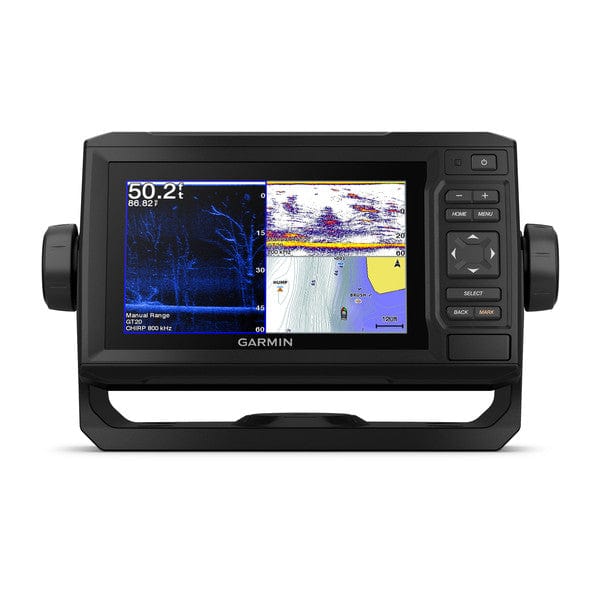

Garmin ECHOMAP Plus 63CV with GT20 Transducer - Remanufactured

Model: 010-N1889-05
  • Bright, sunlight-readable 6" combo
  • Includes GT20 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar with transom and trolling motor mounts
  • Preloaded LakeVü g3 maps with integrated Navionics® data cover more than 17,000 lakes with up to 1’ contours
  • Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
  • Use built-in Wi-Fi® to pair with the free ActiveCaptain™ app for access to OneChart™, smart notifications , Garmin Quickdraw™ Community data and more
  • Share waypoints and routes with other ECHOMAP™ or STRIKER™ units

Bright, sunlight-readable 6" combo includes a GT20 transducer for traditional Garmin CHIRP sonar that delivers remarkable target separation and CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat. It comes preloaded with LakeVü g3 maps with integrated Navionics data, covering more than 17,000 lakes with up to 1’ contours. Plus, Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. You can also share waypoints and routes with other ECHOMAP or STRIKER units. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.

The built-in sonar capabilities of ECHOMAP Plus 63cv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic, wide image of what passes below your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and ClearVü scanning sonar are combined into 1 transducer.

hese highly detailed freshwater maps with integrated Navionics data cover more than 17,000 U.S. lakes, rivers and reservoirs with up to 1’ contours. LakeVü g3 gives you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, general roads and bridges, designated fishing areas, boat ramps, marinas and campgrounds.

Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Our free all-in-one ActiveCaptain mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

SailAssist features include laylines, enhanced wind rose, heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

Step up to LakeVü g3 Ultra freshwater maps featuring Garmin Elite survey lakes, or select BlueChart® g3 or premium BlueChart® g3 Vision1 coastal charts, all with integrated Navionics data, Auto Guidance2 technology and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app, and automatically sync with your compatible chartplotter, eliminating the need for an SD™ card.

ECHOMAP Plus 63cv provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

Specifications
General
Physical dimensions 8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
Display size 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
Display resolution 480 x 800 pixels
Display type WVGA display
Weight 1.6 lbs (0.7 kg)
Water rating IPX7
Power consumption 12W
Antenna Internal or external over NMEA 0183
Mounting options Bail or flush
Receiver 5 Hz
Garmin Marine Network™ ports None
Maps & Memory
Preloaded maps LakeVü g3 (inland maps)
Accepts data cards 1 microSD™ card; 32 GB maximum card size
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks
Outdoor Recreation Features Yes
Tide tables
Chartplotter Features Yes
Garmin Sonar compatible Yes
Supports AIS (tracks target ships position) Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
Sonar Features & Specifications Yes
Dual-frequency (50/200 kHz) sonar capable Yes
Dual-beam (77/200 kHz) sonar capable Yes
Transmit power 500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology Yes (Built-in)
ClearVü Yes with CHIRP (built-in)
SideVü No
Maximum depth 2,300 ft @ 77 kHz, freshwater
Bottom lock (shows return from the bottom up) Yes
Water temperature log and graph Yes
Sonar recording Yes
Sonar history rewind Yes
Connections
Transducer pin numbers 4
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports None
Video output ports None
Wireless connectivity Yes

What's in the Box:
  • ECHOMAP Plus 63cv with LakeVü g3 for U.S. - Remanufactured
  • GT20-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation

  • Normalized SKU: 010N188905
