Garmin Oversized - Not Qualified for Free Shipping Garmin 12kw XHD2 Pedestal #010-01333-02

Garmin 12kw XHD2 Pedestal #010-01333-02

$5,099.98 $5,711.97 -11% OFF

Garmin 12kw XHD2 Pedestal #010-01333-02

$5,099.98 $5,711.97 -11% OFF

Garmin 12kw XHD2 Pedestal #010-01333-02

$5,099.98 $5,711.97 -11% OFF
Brand: Garmin

SKU: GAR-010-01333-02

UPC: 753759132484

Category: Radar Array

More about this item

Garmin 010-01333-02 Radar Array

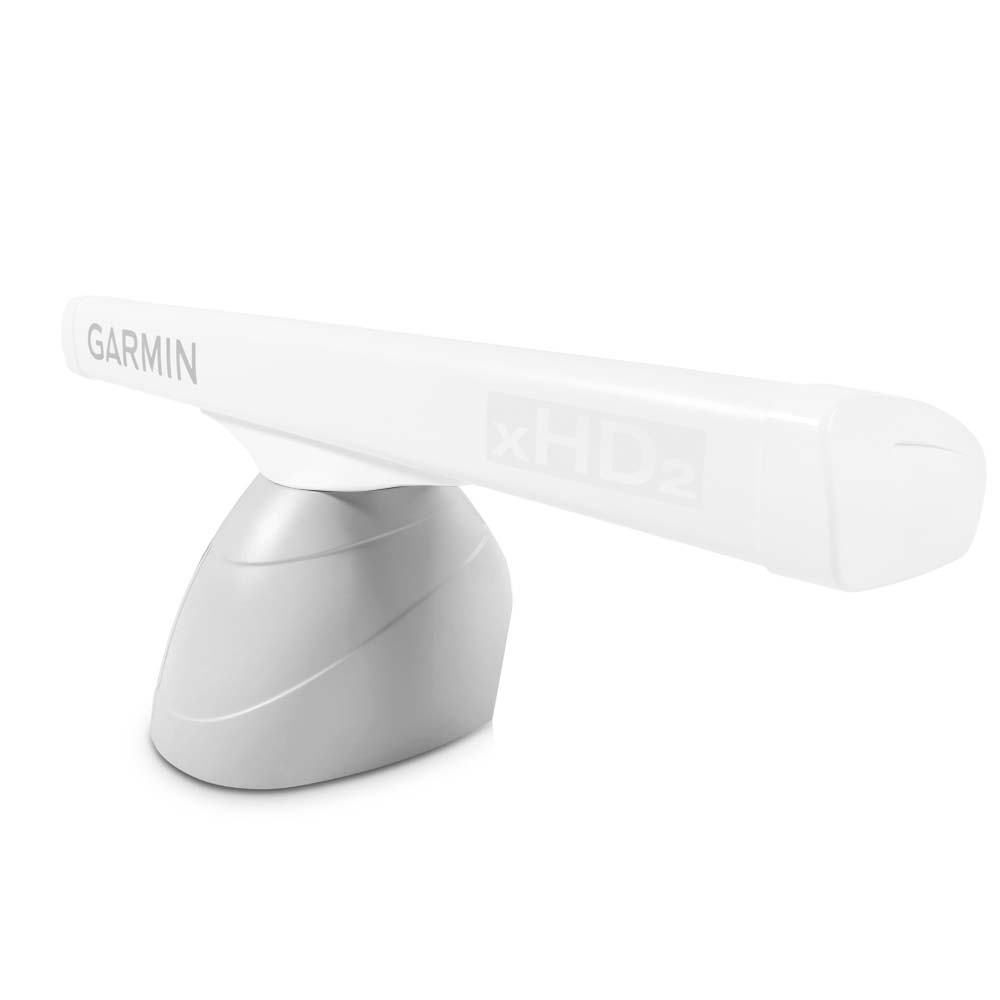

Garmin 12Kw XHD2 Pedestal

Model: 010-01333-02
  • Bird Mode has the sensitivity to determine targets of birds feeding in the distance
  • Echo Trails leave a historical "trail" on the screen to help quickly and easily identify moving targets and collision threats
  • Dual Range: Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range
  • Dual Radar Support provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources
  • Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters
  • Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions
  • Radar Overlay overlays the radar image on the chartplotter's map page
  • MARPA Target Tracking: Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions (Requires Heading Sensor, Model 11068798, sold separately)

Garmin's high-definition open-array radars have improved sensitivity, consistent target positions and the high reliability you demand. They paint a clear, concise image of the shoreline, other vessels, and impending weather on your compatible Garmin chartplotter. Dual-range radar antenna is capable of providing both close and long range split screen images. Easy to install and start using with no complex user settings. Available in 4kW, 6kW, 12kW and 25kW in 4' or 6' open arrays. Order both an array and a pedestal.

Specifications
Name Value Amperage 90 Watts Typical
Dimensions 20 1/2" Width x 12 3/4" Height x 12 1/2" Depth
Transmit Power 12 Kilowatts
Type Pedestals
Voltage 10 to 32 Volts DC
Warranty Details Two Years
Weight 47.1 Pounds

Normalized SKU: 0100133302
UPC Code: 753759132484
Oversized Item
This item is too large/heavy to qualify for free shipping
$5,099.98 $5,711.97 -11% OFF
