Fusion MS-RA670 Apollo Series AM/FM 3-Zone USB Stereo #010-02138-00/SXM

Fusion 010-02138-00/SXM Marine

Apollo MS-RA670 Stereo with SiriusXM SXV300 Connect Tuner & Marine/RV Antenna

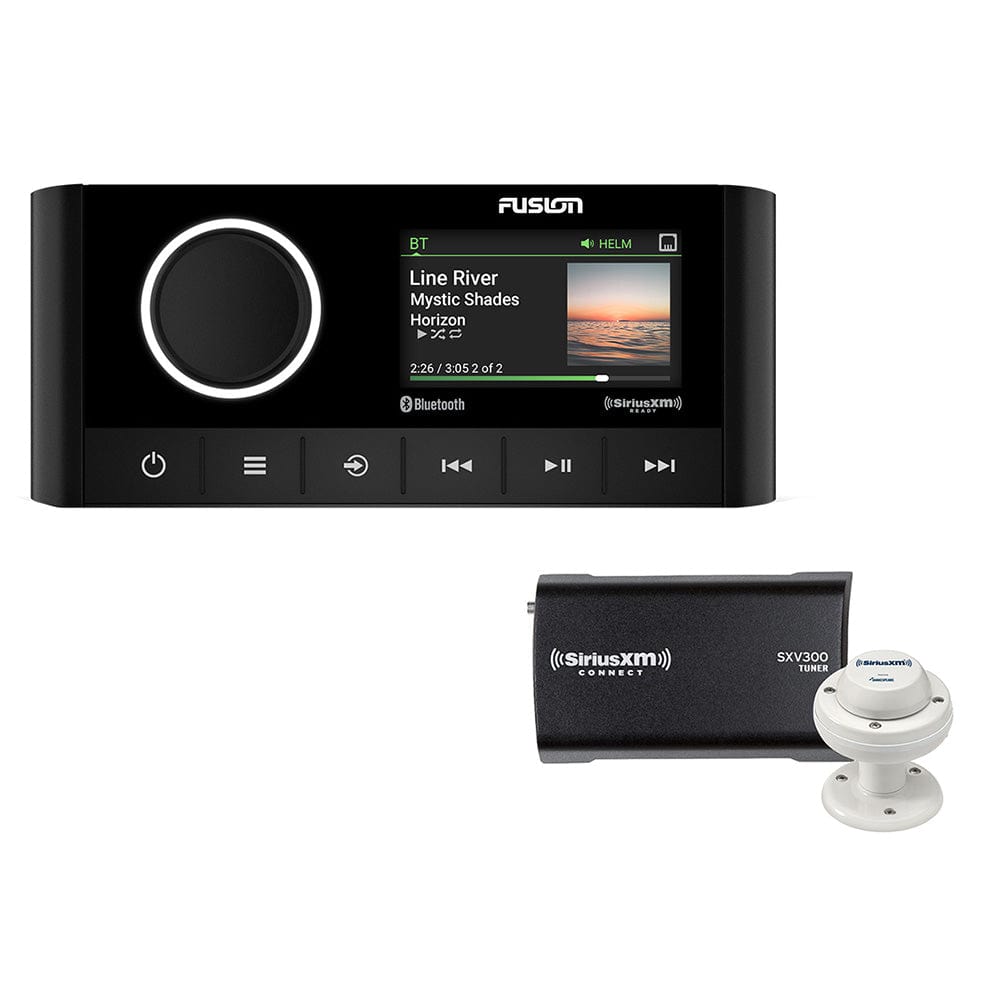

This kit combines Fusion’s Apollo MS-RA670 Stereo with SiriusXM’s SXV300 Connect Tuner and Marine/RV Antenna

Fusion Apollo MS-RA670 Stereo with AM/FM/BT/SiriusXM - 3 Zone with DSP

The Apollo RA670 inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770 including Fusion's Digital Signal Processing, enhanced PartyBus-Network capabilities, Wi-Fi audio streaming with Apple AirPlay® 2, over-the-air software updates, and more source options including Optical Audio for connection to TVs in salons and cabins.  From the kick drum to the eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of your boat.  The future of marine audio entertainment has arrived.

Digital Signal Processing (DSP)

A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in every environment.  Precisely calculated loudness curves optimized for the human ear ensure quality, full range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, a thing of the past.  Using environmental information and acoustically designed Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season.

PartyBus™ Network

Enjoy the freedom of musical choice with the Apollo Series and Fusion's PartyBus-Network. We have introduced a new intuitive user experience allowing for easy navigation of your entire boat's audio network, taking control of your audio and sources a seamless experience.  Key functionalities include - Stereo grouping, volume control, power options, and home zone technology.

NMEA 2000

Ready for connection and control from any supported Multi-Function Display - The MS-RA670 is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA670 with a supported chartplotter or fishfinder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA670 will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones.

Fusion-Link™

Makes control of your stereo easier than ever.  Quickly find your favorite song, tune in to the sports, or turn up the volume all from your partnered multifunction display (MFD), compatible smartphone, Garmin Handheld, or Garmin watch.  With the app installed, you can enjoy source navigation and track selection from wherever you are on your boat.  The Apollo Series is intelligently simple and always up to date, thanks to the over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.

Multi-Zone Control

With three independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone.

Over-The-Air Software Updates

Over-the-air software updates are available from your smartphone or compatible device via the free Fusion-Link app.

Features:

• Marine digital media receiver with built-in Wi-Fi and Bluetooth
• 2.7" LCD color display
• Advanced Fusion DSP optimizes sound quality at all listening levels
• Multi-zone control lets you tune three audio zones
• Works with iPod/iPhone, plus Android and Windows phones
• Class D amplifier technology conserves battery power
• PartyBus audio distribution technology (requires Fusion MS-SRX400 zone stereos)

Technical Specifications:

• 3 Zones
• 280 Watts peak power
• One ethernet port
• NMEA 2000 compatible
• Class D Amplifier
• Rear USB connection
• Bluetooth wireless range - 30'
• ANT wireless range - 10'
• Language Interface - Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
• Dimensions (W/H/D) - 6-3/16" x 2-11/16" x 4-7/8"
• Cutout Dimensions (W/H/D) - 5-5/16" x 2-1/16" x 4-1/8"

In the Box:

• Stereo Head Unit
• Cover
• 6' NMEA 2000 Drop Cable
• Mounting Hardware
• Mounting Template
• Power Wiring Harness
• Aux/Line-out Harness
• Documentation

*SiriusXM Promotion - Get 3 Free Months SiriusXM Streaming Service - LINK

SiriusXM SXV300 Connect Tuner & Marine/RV Antenna

Control and enjoy all the wonders of satellite radio on the sky. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.

Features:

• Flexible Installation: Surface, Low Profile with Base, and Pedestal Mounts
• Compatible with third-party 1"-14 threaded masts, and rail mounts (sold separately)
• Antenna with 6" pigtail and 25' antenna cable to allow for optimal placement
• Best antenna solution for both metallic and non-metallic mounting applications, such as boats or RVs

Technical Specifications:

• Dimensions - 3.42" (W) x 2" (H) x 0.7" (D)
• Power Requirements - 12v DC, 0.3 A (MAX) supplied by boat or RV
• Operating Temperature - -4°F to +158°F /-20°C to +70°C
• IPX67 rated

In the Box:

• SXV300 Connect Tuner
• Marine/RV Antenna
• 25' Antenna Cable
• Three Mounting Accessories: Surface, Low Profile with Base, and Pedestal Mounts

NOTE: The SXV300 Connect Tuner is not marinized. It should be mounted in a clean, dry location.
