Furuno NAVPILOT 700 Autopilots

NAVpilot 700

Kick back, relax and let NAVpilot steer you to your destination!
FURUNO's NAVpilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NAVpilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in the system memory and continuously optimized.

Self-learning and adaptive software

From the first dock-side setup through the last voyage you made, NAVpilot continues to learn your vessel's steering characteristics. This allows dynamic adjustments to the boat's steering for vessel speed, trim, draft, tide and wind effects. These characteristics are stored in the processor's memory where they are continuously optimized to make the NAVpilot more versatile.

SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering Control

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.

The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset, along with a system software update.

FishHunter mode

FishHunter mode is a unique feature of FURUNO's NAVpilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NAVpilot. The NAVpilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Furuno's new NAVpilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The "Plug and Play" CAN bus interface allows for easy installation and exceptional interface ability.

Features:

  • Revolutionary SAFE HELM and POWER ASSIST option brings unrivaled steering comfort and control at the helm
  • Selectable "Economy" and "Precision" Navigation Modes combine adaptive technology providing fuel and power savings of up to 2.5% or more.
  • "Precision" XTE accuracy: within 0.003 nm
  • Dual NMEA2000 network interface and Furuno CAN bus interface provides isolation and redundancy for safety
  • Simplified activation set-up by on-screen wizard
  • Perfect for inboard or outboard power boats and sail boats
  • Simple one-touch mode selection enables flexible steering and course control
  • Perfect cosmetic match with NavNet 3D, FI50 instrument series, GP33 GPS Navigator and RD33 Data Display
  • Mix and match up to 6 displays in a single network

    Package includes:

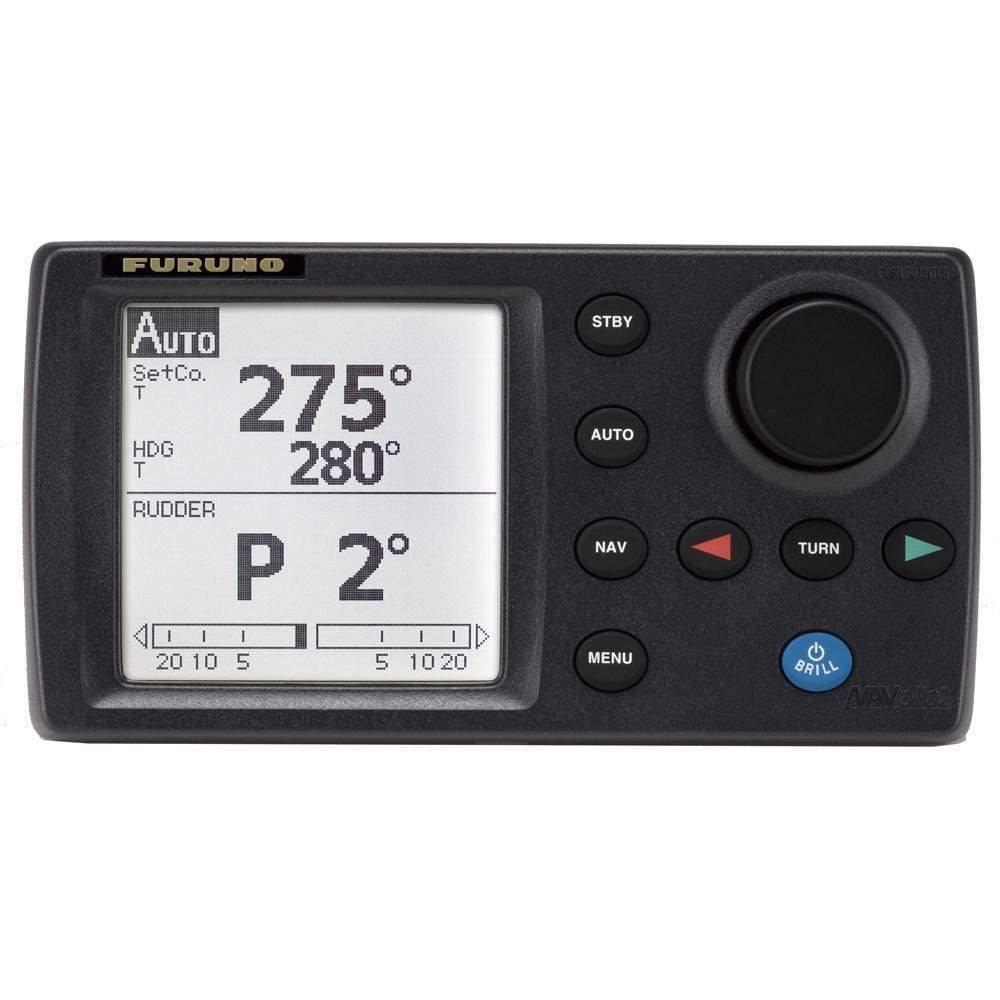

    FAP7001 CONTROL UNIT NAVPILOT 700
    FAP7002 PROCESSOR UNIT NAVPILOT 700
    FAP6112 Rudder Reference Unit for NAVpilot
    PG700 HEADING SENSOR NMEA2K

    Specifications:

    Boat Length - Max (Feet) = NONE
    Capacity - Max Ram (CU) = NONE
    Drive Type = NONE
    Feedback Type = Rotary
    Pilot Type = Inboard
    Remote Capable = NONE
    Turn Patterns = NONE
    Vessel Displacement - Max (Pounds) = NONE


    Normalized SKU: NAVPILOT700
    UPC Code: 611679326935

    Furuno NAVPILOT 700 Literature Download

      Quick Reference Guide
      Owners Manual
      Product Brochure

    Furuno NAVPILOT 700 Video
