Furuno Qualifies for Free Shipping Furuno Autopilot Pump #PUMPHRP17-12

Furuno Autopilot Pump #PUMPHRP17-12

$895.80 $1,084.75 -18% OFF

Furuno Autopilot Pump #PUMPHRP17-12

$895.80 $1,084.75 -18% OFF

Furuno Autopilot Pump #PUMPHRP17-12

$895.80 $1,084.75 -18% OFF
Brand: Furuno

SKU: FUR-PUMPHRP17-12

UPC: 611679305077

Category: Autopilots

More about this item
  Download Literature

Furuno PUMPHRP17-12 Autopilots


Autopilot Pump, 12 VDC, 1.7 Cubic Inches Per Second (For Ram Sizes of 14 Cubic Inches to 25 Cubic Inches in Volume)

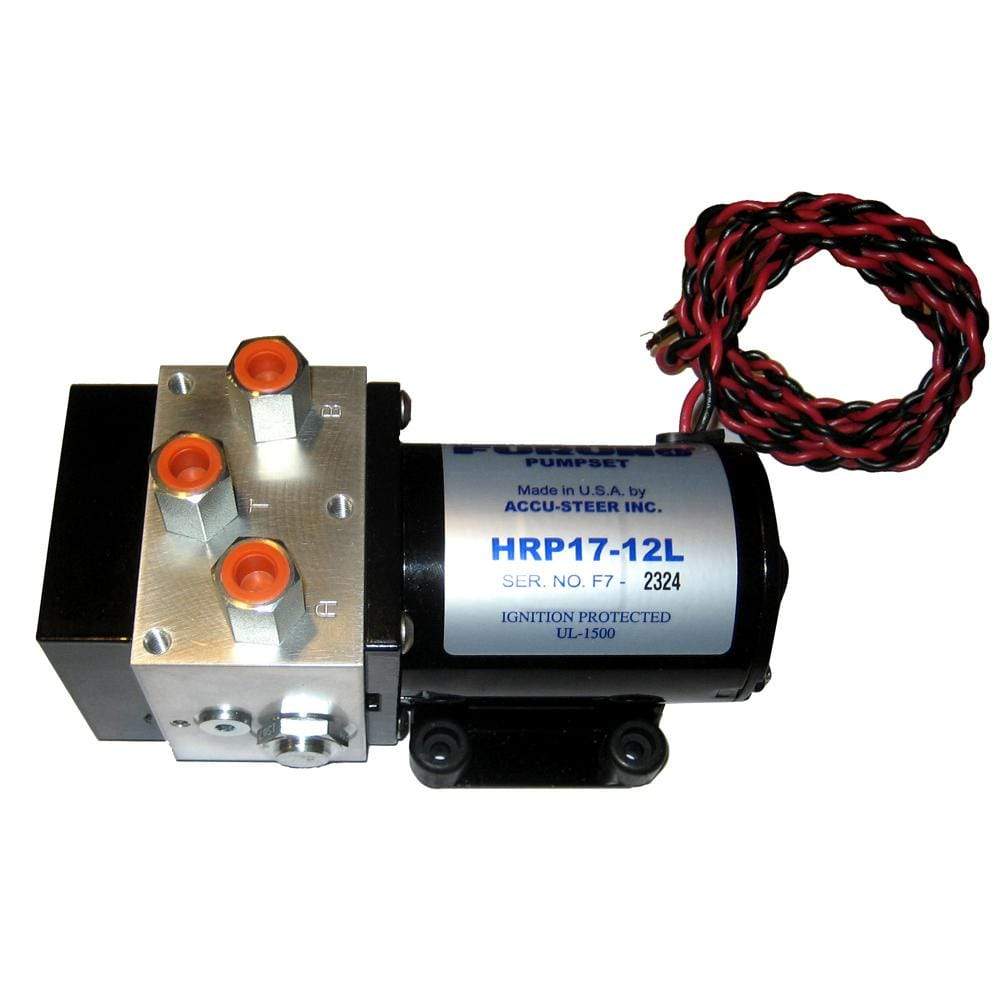

The PUMPHRP17-12 is a reversing pumpset designed to interface the NavPilot series autopilot with a hydraulic steering system. The pump assembly incorporates a reversible gerotor gear pump, a two-piece gear housed in an eccentric ring. This allows for incredibly quiet, reliable and precise operation.

A hydraulic steering system consists of a hydraulic actuator and one or more steering wheel pumps, or helm pumps. As the steering wheel (helm pump) is turned in the port direction, hydraulic oil is pumped into the port hydraulic steering line. This oil is directed into the port side of the steering cylinder. As the cylinder moves to port, oil from the starboard side of the cylinder returns to the helm pump through the starboard hydraulic lines.

One end of the cylinder is fixed and the other is connected to a tiller arm, which is connected to a rudder shaft. With this connection to the tiller arm the linear movement of the cylinder to port is changed to rotary movement, which turns the rudder and steers the vessel to port. Moving the steering wheel to starboard produces the same reaction with oil being pumped out of the starboard line and returning through the port line.

If more than one helm pump is used, a return/fill line must be installed to connect the cases of all helm pumps together.

The output flow rate of the pumpset determines the speed of the steering cylinder. The PUMPHRP17-12 outputs 1.6 cu. in. of oil per second and requires a 12VDC input.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Specifications:

Drive Type = NONE
Feedback Type = NONE
Pilot Type = NONE
Remote Capable = NONE
Turn Patterns = NONE
Vessel Displacement - Max (Pounds) = NONE
Boat Length - Max (Feet) = NONE
Capacity - Max Ram (CU) = NONE


FURUNO PUMP HRP17-12 F/500-21 RAM SIZES 14CI-25CI REPLACES


Normalized SKU: PUMPHRP1712
UPC Code: 611679305077

Furuno PUMPHRP17-12 Literature Download

  Owners Manual
