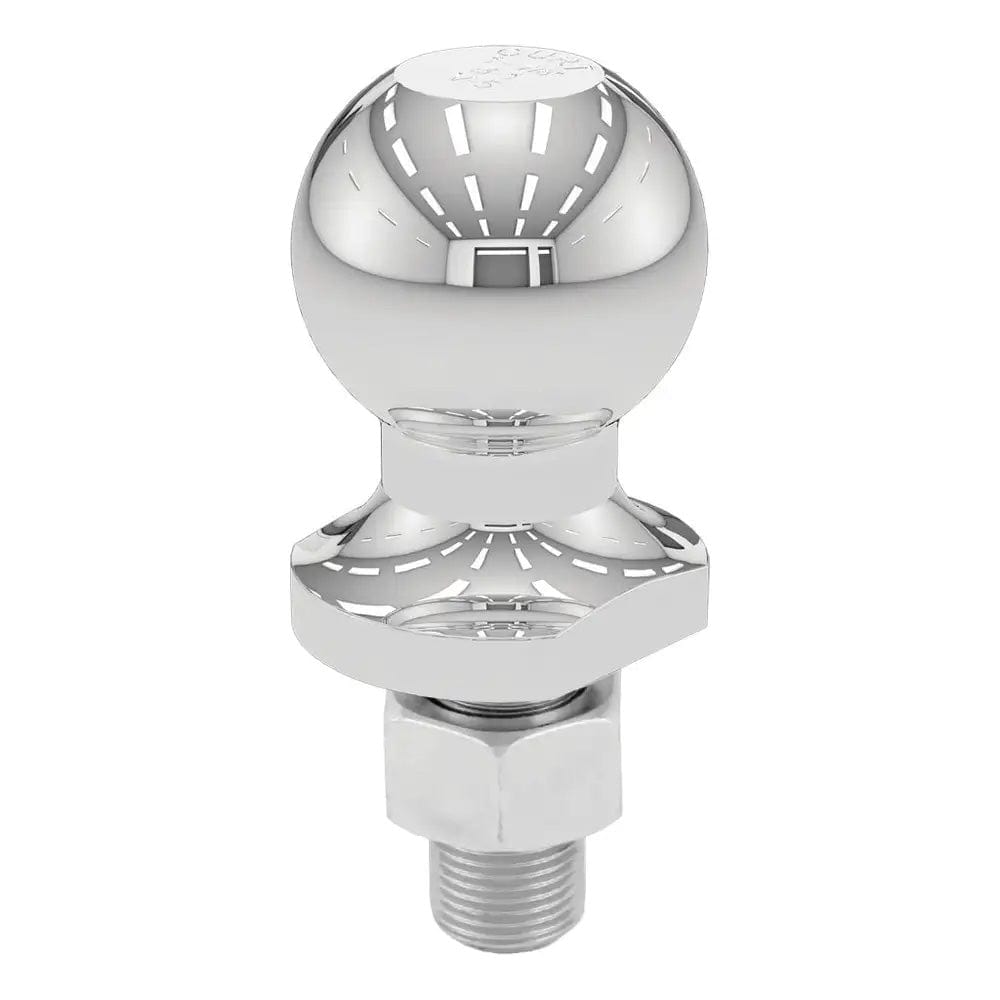

CURT 1-7/8" Trailer Ball 3/4" x 1-5/8" Shank 2000 lb Chrome #40061

CURT 40061 Hitch Balls

1-7/8" Trailer Ball - 3/4" x 1-5/8" Shank  - 2,000 lb. Capacity - Chrome

CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, the trailer balls are engineered to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".

This CURT tow ball features a ball capacity of 2,000 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers, and some recreational vehicle haulers. (NOTE: Never exceed the lowest weight capacity of any towing component, i.e., the vehicle, hitch, trailer, etc.) As with any trailer, be sure that the towing equipment is capable of handling the load before hitching up. This trailer ball also features a 3/4" shank diameter, a 1-5/8" shank length, 0" of rise, and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, the 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.

Features:

• It fits 1-7/8" couplers and accepts up to 2,000 lbs. GTW
• Constructed from high-strength, hot-forged steel
• Protected by a durable chrome-plated finish
• Zinc-plated hex nut and helical lock washer for secure mounting
• Features fine threads for superior holding strength
• Tested for safety to meet U.S. VESC V-5 specifications

Specifications:

• Ball Capacity: 2,000 lbs
• Ball Diameter: 1-7/8 in.
• Finish: Chrome-plated
• Hub Warehouse: D25
• Material: Forged steel
• Shank Diameter: 3/4 in.
• Shank Length: 1-5/8 in.
• Shank Rise: 0 in.
• Torque: 160 ft. lb.
• Warranty: Limited lifetime warranty (one-year finish, one-year parts)

*The mounting platform must be at least 3/8 in. thick, and the hole size must not be more than 1/16 in. larger in diameter than the threaded shank
