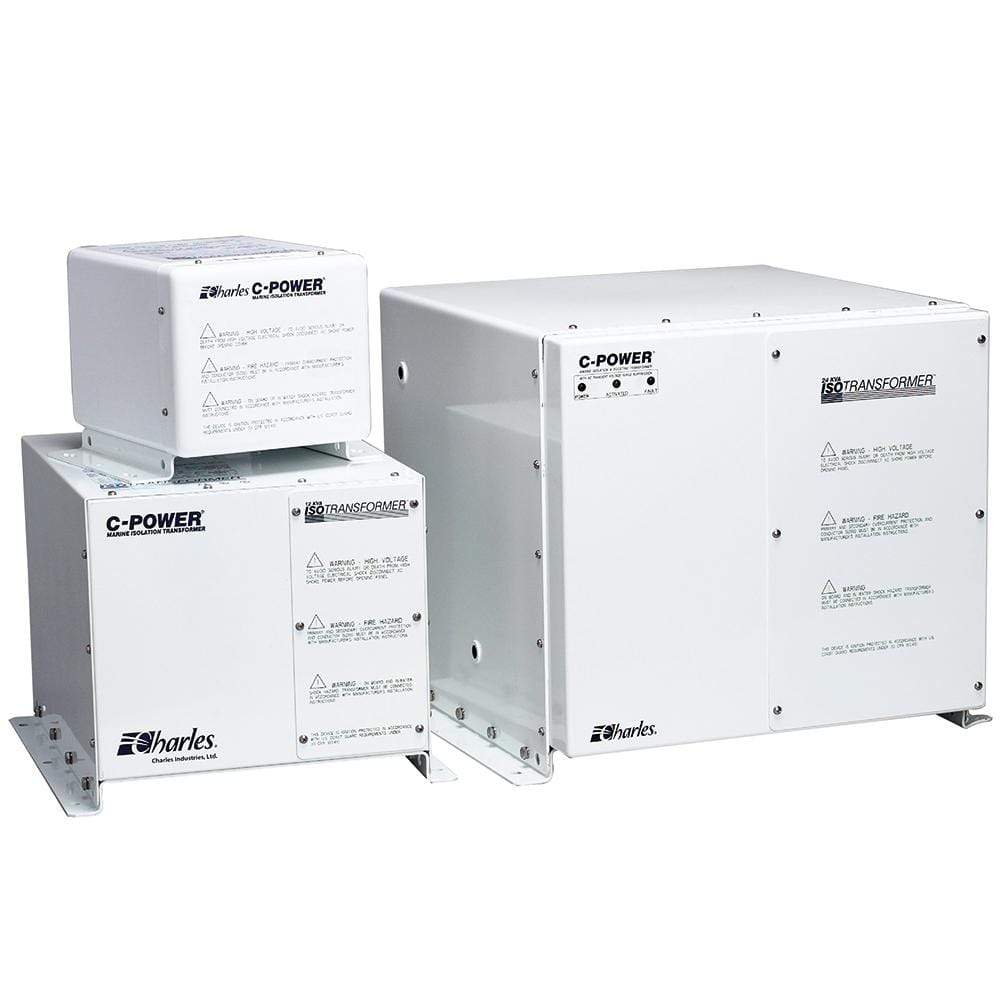

Charles Industries Truck Freight - Not Qualified for Free Shipping Charles 50a Isolation Transformer 12 kVA 240v AC #93-IXFMR12T-A

Charles 50a Isolation Transformer 12 kVA 240v AC #93-IXFMR12T-A

$2,408.51 $2,793.87 -14% OFF

Charles 50a Isolation Transformer 12 kVA 240v AC #93-IXFMR12T-A

$2,408.51 $2,793.87 -14% OFF

Charles 50a Isolation Transformer 12 kVA 240v AC #93-IXFMR12T-A

$2,408.51 $2,793.87 -14% OFF

SKU: CHI-93-IXFMR12T-A

UPC: 795836121097

More about this item
  Download Literature

Charles Industries 93-IXFMR12T-A Isolation Transformer

When properly installed, Charles Marine Isolation transformers will electrically isolate the AC shore power from the boat's AC power system. The boat's electrical system and the grounding conductor are not actually connected to the shore-side power. There is no direct electrical connection between earth-grounded shore AC power and the onboard electrical system. The shore ground is connected to a shield that is wound between the primary (shore) and the secondary (boat) transformer winding. The connection of this grounding wire only to the shield of the transformer isolates the boat's AC electrical system from shore.

Compliance with independent testing lab requirements maximize safety
  • Marine UL listing ensures durability and safety
  • New European CE EMC Certification (50hz models)
  • Greatly reduced potential for in-water shock hazard
  • Eliminates the need for polarity alarms and galvanic isolators
    Superior technology guarantees top performance
  • Fully-encapsulated components and transformer windings
  • Full current carrying shield per ABYC E-8.20.1
    Easy to install and use
  • Occupies less space and easier to install than most units
  • Terminal blocks for easy customer connections
  • 3.6 KVA and 12 KVA units mount to either bulkhead or deck. 24 KVA unit mounts to deck only.
    Corrosion-resistant housing and components
  • Convection-cooled enclosure meets the intent of NMEA 3R requirements.

    Specifications:

    Voltage - Charger Input = NONE
    Portable = NONE
    Amps - Output = NONE
    Voltage - Output (Volts) = NONE
    Banks = NONE
    Battery Type = NONE
    Charger Type = NONE


    CHARLES 12KVA 50 AMP 240VAC 50/60HZ ISOLATION


    Normalized SKU: 93IXFMR12TA
    UPC Code: 795836121097

    Charles Industries 93-IXFMR12T-A Literature Download

      Owners Manual
