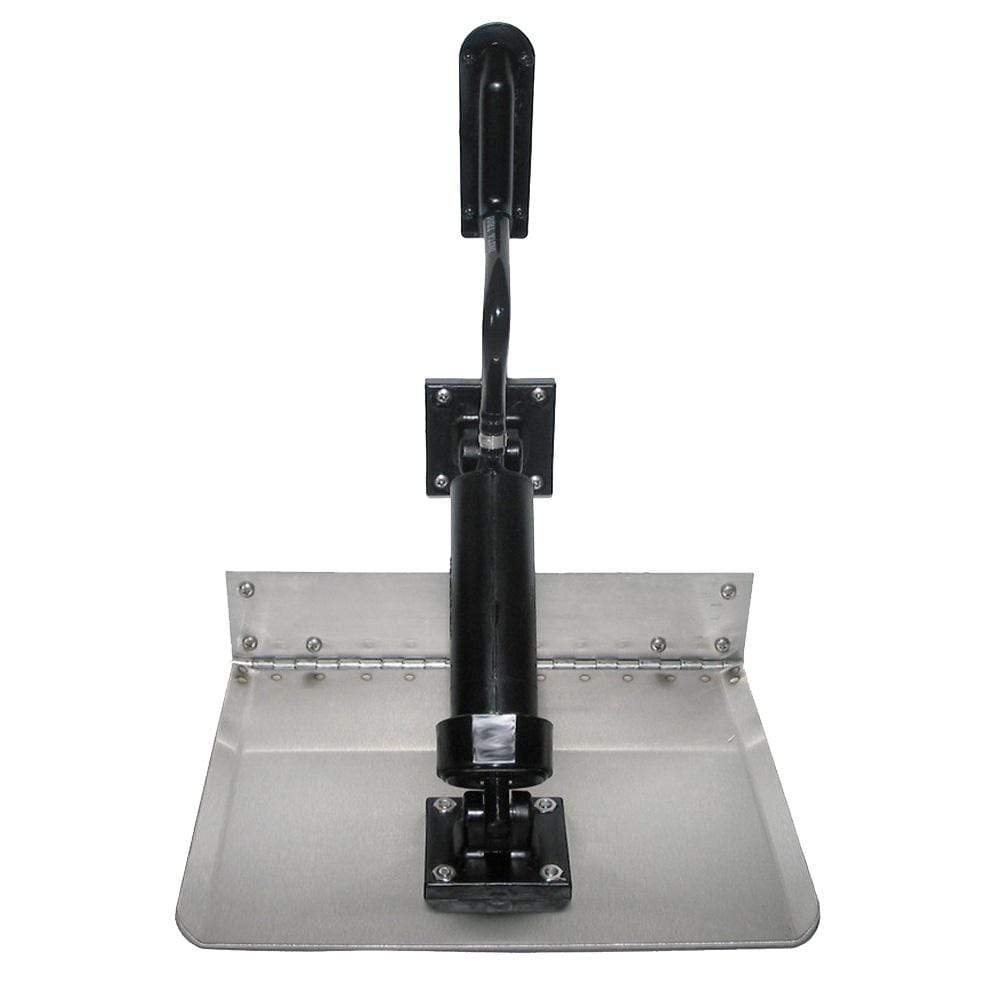

Boat Leveler Qualifies for Free Shipping Boat Leveler 12" x 12" Trim Tab Set Insta Trim #N121200

Boat Leveler 12" x 12" Trim Tab Set Insta Trim #N121200

$642.32 $801.70 -20% OFF

Boat Leveler 12" x 12" Trim Tab Set Insta Trim #N121200

$642.32 $801.70 -20% OFF

Boat Leveler 12" x 12" Trim Tab Set Insta Trim #N121200

$642.32 $801.70 -20% OFF

SKU: BOL-N121200

More about this item
  Download Literature

Boat Leveler N121200 Trim Tabs

Insta-Trim 12" x 12" Trim Tab Set

Insta-Trim, the original hydraulic boat leveler, provides a better ride every time you leave the dock. Each Insta-Trim system features:

Wiring: Color-coded wiring in 25' and 40' lengths with quick connect fittings, meets federal standards for heat, pull and insulation.

Solenoids: Our solenoids are custom designed for Insta-Trim Boat Leveler company, epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating drift back. Barb type hose fittings provide tight, secure connections.

Motor: A powerhouse with coated wiring that resists temperature and amperage build-up. 1 3/4" stack windings and top mounting eliminates oil leakage. The motor is mounted with stainless steel nuts and bolts, and is easily disassembled. One pint of Insta-Trim biodegradable transmission oil, funnel and mounting hardware is supplied.

Pump: Designed and engineered exclusively by Insta-Trim. The built-in bypass is factory set at 400 P.S.I. Tolerance held to +/-.00025. Amperage doesn?t exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.

Brackets: Swivel type brackets allow cylinders to be mounted and adjusted to any angle. Knockout pins act as shear pins if the tab strikes an object.

Cylinders: Impact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus 0-rings, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular steel rod prevents hose blow-off and breakage. A stainless steel spring retracts the cylinder when the boat is not in motion.

Stainless Steel Trim Tabs: 12 gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim systems use hinges that prevent most spray and can be used for transom or bottom mounting.

Motor cover: High impact abs plastic cover with a built-in oil reservoir mounts easily with two screws. Our cover protects the motor from occasional wash down.

Hose: Designed and manufactured exclusively for Insta-Trim with nylon reinforced webbing and a UV resistant coating. Rated at 2000 lbs. Burst pressure, 15; of hose is supplied for your system. Stainless steel clamps hold the hose to barb fittings at the solenoids and at the cylinder connection.

Rocker type controls: Mounted on the dash, they are easy to operate.

Optional touch button waterproof switches: Adjust the tabs for maximum control and performance. 3" Diameter.

Specifications:

Actuator Type = NONE
Boat Length - Max (Feet) = NONE
Construction = NONE


Normalized SKU: N121200
