Blue Guard Innovations BG-LINK-W Fume & Fire

Link Kit Includes BG-GWM-W Gateway & BG-WS-01 Sensor Wi-Fi Non-Subscription

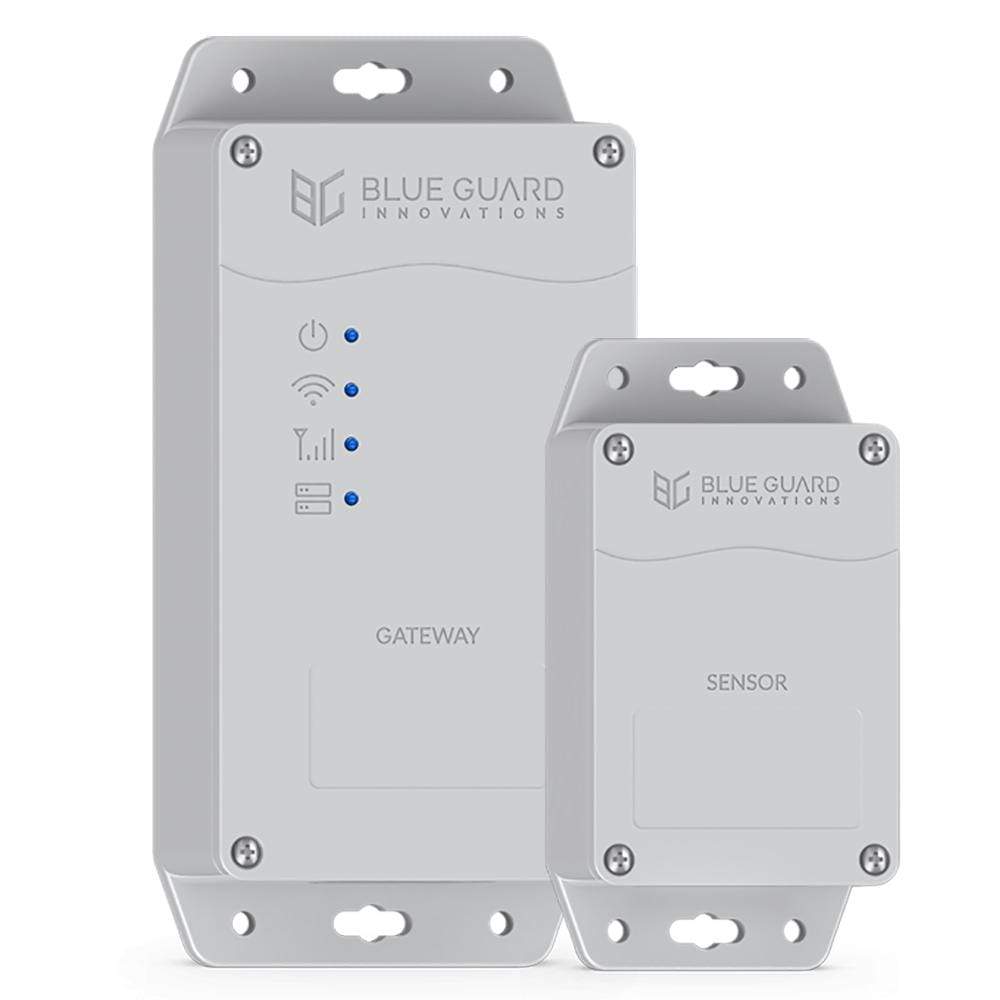

The BG-Link IoT Marine Gateway is a unique wireless monitoring system which primarily focuses on monitoring and alerting vital boat functions such as battery power systems and bilge functions through direct access to the internet cloud. Keeping the boat owner or designated user informed with 24/7 information about events taking place in the vessel’s bilge system. Regardless of the size of the vessel, it is easy to configure individual compartments, battery banks, down to all devices that are being monitored. Blue Guard Innovations Switches and Sensors communicate to the  gateway via a 900 MHz wireless connection. The is capable of monitoring up to 50 individual sensors. It uses built-in WiFi connection to access the internet cloud or an optional cellular connection. It is housed in a rugged IP-66 rated ABS plastic enclosure with convenient mounting options. The  features visible LED indicators for power, WiFi, cellular, and sensor connections. It is powered with voltage ranging from 9-30 Vdc. User configured alarms such as pump activation rate in an hour, voltage & current, temperature is then sent to designated e-mail or user BG-Link App. Wireless sensors are compact, lightweight, and easy to install in small spaces.

Gateway - BG-GWM-W:
Supports up to 50 sensors. Get alerts anywhere with WiFi connection. No subscription required with WiFi.

Sensor - BG-WS-01 (Wireless Sensor 1):
1 bilge pump, pump voltage & current, pump activation rate, high water, oil alarm

Supports up to 50 sensors.

Gateway:

  • Status LEDs: Power, WiFi, Cellular, Sensor connection
  • Operating Voltage: 9 – 30 Vdc
  • Power Consumption: 150 – 200 mA @ 12 Vdc
  • Connectivity:
    WiFi (Internal antenna) ­— Standard
    Cellular (External antenna) — Optional
    RJ45 (Wired) — Optional
  • Wireless: 900 MHz wireless transceiver
  • Enclosure: IP-66 rated ABS plastic
  • Operational Temperature: 14°F – 167°F / -10°C – 75°C
  • Humidity: 95% R.H. @ 122°F / 50°C non condensing
  • Compact Size: 6.3 in x 3.5 in x 2 in / 159.4 mm x 90.7 mm x 51 mm
  • Light Weight: 12.5 oz / 354 grams
  • Maximum Number of Wireless Sensors Connected: 50
  • Certifications: FCC, CE

Sensors:

  • Status LEDs: Blinking green — Power ON / Intermittent blue sensor — Sending data
  • Operating Voltage: 9 – 30 Vdc
  • Range: Up to 300 ft
  • Power Consumption: 11 mA @ 12 Vdc
  • Battery (Back Up) — Optional: 1,100 mAh / Lithium Thionyl Chloride
  • Battery Backup Time: Up to 100 hrs
  • Wireless Frequency: 900 MHz
  • Enclosure: IP-66 Rated ABS Plastic
  • Operational Temperature: -22°F – 167°F / -30°C – 75°C
  • Humidity: 95% R.H. @ 122°F / 50°C non condensing
  • Compact Size: 4 in x 2.75 in x 1.6 in / 102 mm x 70 mm x 40 mm
  • Light Weight: 5 oz / 141 grams
  • Certifications: FCC, CE

In the Box:

  • BG-GWM-W
  • BG-WS-01
  • USB to Micro USB

Normalized SKU: BGLINKW
