Blue Guard Innovations BG-HW Fume & Fire

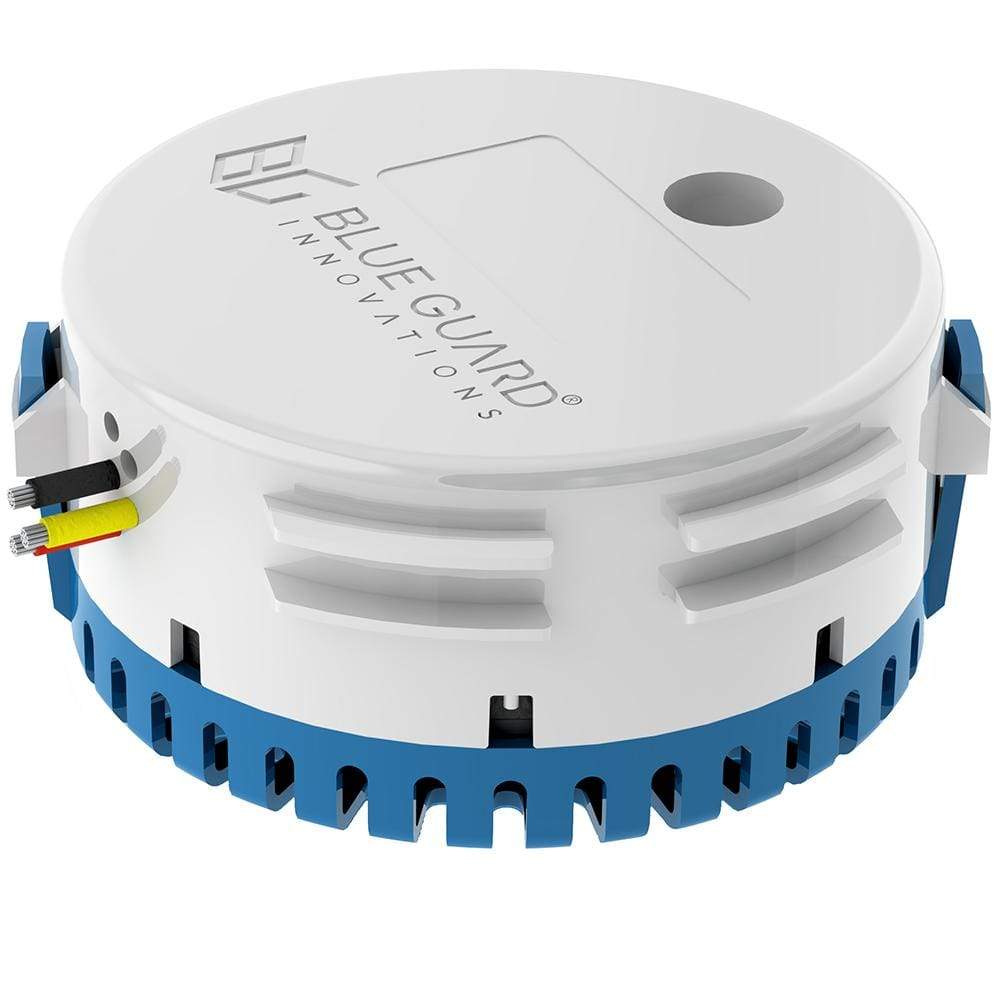

High Water Sensor

The USCG 46 CFR 28.250 & 182.530 compliant BG-HW (High Water Sensor) detects salt or fresh water and can be easily integrated into any vessel’s alarm system. Water in any compartment of a vessel is a potential crisis. Early warnings of water entering the hull or leaking from plumbing is extremely important for the safety of the vessel and passengers. The BG-HW is CE and ISO 8846 Marine Ignition Protection Certified, tested to ABYC-1500 standards. Patented technology.

How It Works:
The BG-HW triggers an alarm when high water is detected, once connected to a BG-CP (Control Panel) or any alarm system. The BG-HW has a 12 or 24 Vdc with 1 amp max alarm output.

Reliability:
The BG-HW is a solid-state device with no moving parts or float switches that can easily be damaged. With IP-68 rated durability, the BG-HW is made with rugged, non-corrosive ABS plastic. The sensor comes with a heavy-duty mounting bracket to attach to a bulkhead or frame with #8×0.75” 316 stainless steel screws. Heavy-duty 14 gauge marine grade wires connect to the BG-JBox (Junction Box) that should be mounted high on a bulkhead, keeping the connections dry and reliable. The BG-HW has two integrated sensors that ensure a reliable and accurate detection.

Features:

  • High Water Detection: Manual test point on the sensors
  • 2 integrated sensors - solid-state with no moving parts or mechanical float switches that can easily be damaged
  • Smart bilge pump switch rated for up to 20 amp bilge pumps- Mode A (Marine Mode) and Mode B (Marine Sanctuary) automatically turns off the bilge pump when oil or fuel is detected
  • Integrated Bluetooth connectivity- connects to the BGI Config App available on IOS and Android devices
  • USCG 46 CFR 28.250 & 182.530 Compliant
  • CE and ISO 8846 Marine Ignition Protection Certified

Specifications:

  • Alarm Output: 12 or 24 Vdc, 1 amp max
  • Operating Voltage: 12 or 24 Vdc
  • Operating Temperature Range with Full Functionality: 32F -158F
  • Operating Temperature Range: -22F - 185F
  • Three Wire System: Heavy-duty 14 gauge marine grade wires, 6ft long
  • IP-68 Rated Durability: Rugged, non-corrosive ABS plastic housing and mounting bracket
  • Compact Size: Without Mounting Bracket- 4.6in D x 2in H / With Mounting Bracket- 5.9in L x 4.6in W x 2.0 in H
