B & G RAM-T2-24V Autopilots

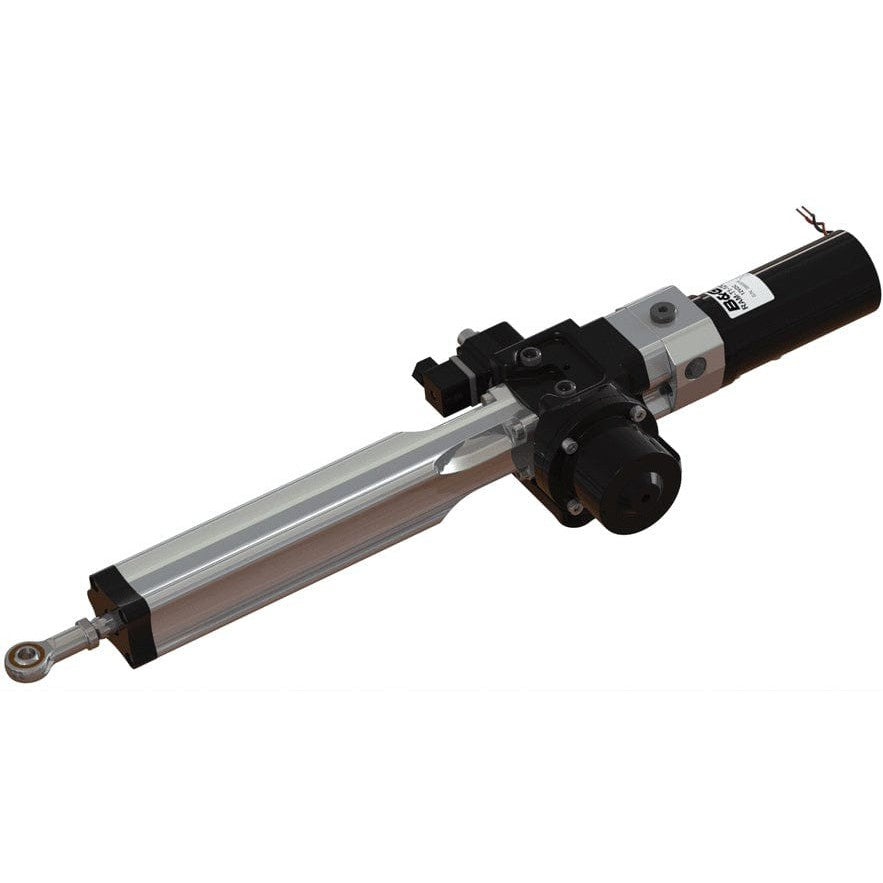

B & G Hydraulic Ram T2 24V

Model: RAM-T2-24V

The RAM T2 Hydraulic linear actuator combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bi-directional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from rudder strikes, grounding etc.

Specifications
Performance
Maximum thrust (intermittent) 675 kg
Hard over time nominal RAM-T2 9 sec
Temperature rating minimum -20 c
Temperature rating maximum +65 c
Relief valve setting 62 bar
Back-drive at 12 sec Hard-over 7kg
Electrical
Compatible computers H5000 / NAC3
Motor voltage nominal 24v DC
Motor power 100 watt
Max current 12v 25% duty 11.2 A
Rotation Reversing
Protection IP44
Connection 1m 2 Core Flying Lead
Ignition protection BS EN 28846:1993
Coil power continuous 12 watt
Recommended oil Mineral based hydraulic ISO VG10
Materials
Body Aluminium BS 1490
Piston rod Chrome Plated Stainless Steel
Seals Nitrile & PTFE
Body Protection SP270

Normalized SKU: RAMT224V
UPC Code: 738087005433
