Shakespeare Oversized - Not Qualified for Free Shipping Shakespeare 8' Dual Band Cellular 3dB Gain Cellular Antenna #5237-XT

Shakespeare 8' Dual Band Cellular 3dB Gain Cellular Antenna #5237-XT

$180.14 $228.79 -22% OFF

Shakespeare 8' Dual Band Cellular 3dB Gain Cellular Antenna #5237-XT

$180.14 $228.79 -22% OFF

Shakespeare 8' Dual Band Cellular 3dB Gain Cellular Antenna #5237-XT

$180.14 $228.79 -22% OFF

SKU: SHK-5237-XT

UPC: 719441900229

Category: Wi-Fi Antennas

More about this item
Download Literature

Shakespeare 5237-XT Wi-Fi Antennas

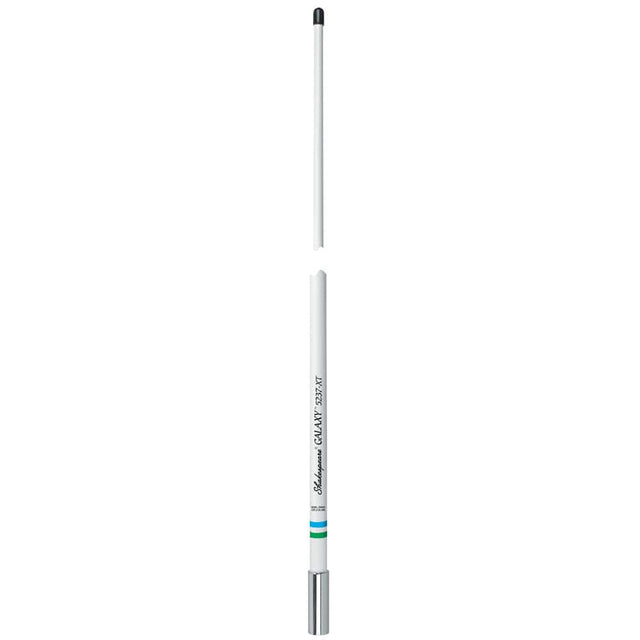

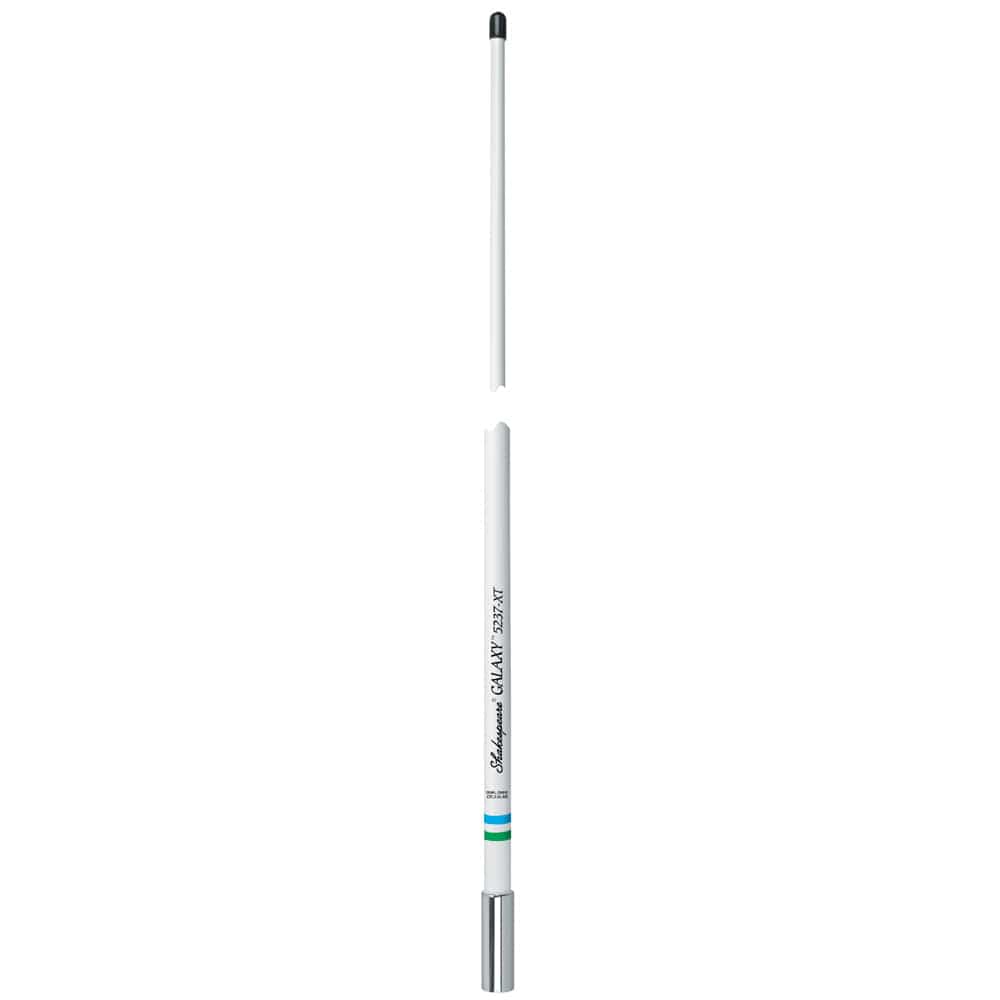

Shakespeare Galaxy 5237-XT
8' Dual Band Cellular 3dB Gain
800/900 MHz and 1900 MHz Cellular

This antenna covers digital, analog and PCS cell phone bands in an eight-foot radome that coordinates with other Shakespeare Galaxy antennas. Electrical connections are hand soldered for reliability. A brass choking sleeve eliminates pattern distortion due to cable radiation. Use one of Shakespeares CPA Series adapters (sold separately) to connect your portable cell phone.

  • Brass and copper elements to maximize range
  • Stainless steel ferrule w/ standard 1"-14 thread
  • Includes 25' of Shakespeare exclusive Lo-Max® low-loss cable and a "TNC" connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • Shakespeare Limited Warranty: 5 years


All Galaxy® Dual Band Cellular antennas feature Shakespeares exclusive Lo-Max® Cable. This flexible, UV stable coax provides low-loss characteristics near that of larger RG-8 A/U and RG-213, but without the extra bulk and rigidity.

Technical Specifications:


Frequency: Dual Band 800-890 MHz and 1800-1900 MHz
Bandwidth: 96 MHz within 2.0:1 VSWR (analog band)
140 MHz within 2.0:1 VSWR at (digital band)
SWR: nominally less than 1.5:1 at 852.65 MHz;
nominally less than 1.5:1 at 1918.7 MHz
Gain: 3 dB
Height (feet): 8


SHAKESPEARE CELL 8FT 5237-XT


Normalized SKU: 5237XT
UPC Code: 719441900229

Shakespeare 5237-XT Literature Download

Quick Reference Guide
